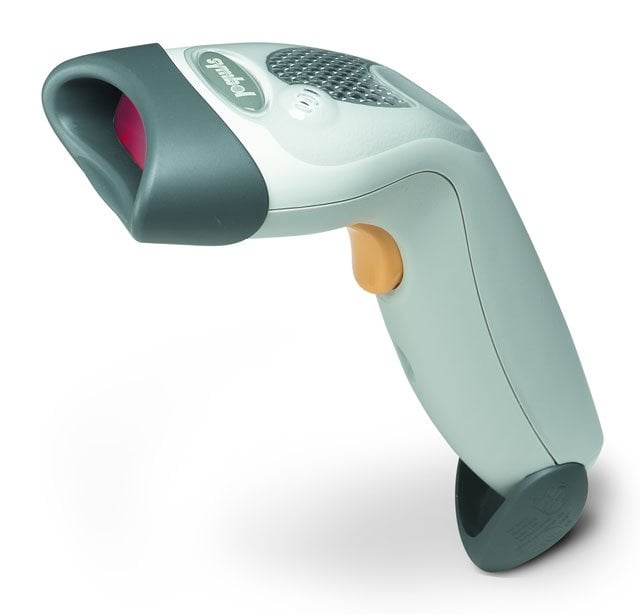

Symbol LS1902T-I000-3100S Barcode Scanner

The Symbol LS1902T-I000-3100S Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol LS 1902 Cobra - keyboard wedge kit: Scanner, Intellistand, AT/XT 'Y' cable & product reference guide.
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser scan engine guarantees rapid error free data entry
  • Scan barcodes with a staggering speed of 44 scan/s
Read More
Symbol LS 1902 Cobra Barcode Scanner Model Overview
The LS 1902 Cobra Decoded Series of scanners is designed to fit your hand and your budget. Its sleek, lightweight, ergonomic design is perfectly balanced to minimize operator strain while maximizing comfort. The LS 1902 Cobra is a premium scanner at an entry-level price with features you'd only expect to find on high-end solutions. A hands-free stand delivers the flexibility to operate as a presentation scanner for both triggered and triggerless configurations. Designed and manufactured by Symbol, the LS 1902 Cobra Series offers the scanning quality and versatility that users have relied on for over 25 years. The LS 1902 Cobra Series offers a large, bright two-color LED plus a beeper with adjustable volume for audible confirmation of good decodes. Its highly visible scan line provides simple aiming, while the curved rubber nose makes it easy to orient the scan beam even when scanning on contact. This ensures valid decodes the first time, every time. The result: fast, accurate data capture and the elimination of keyboard entry errors. All units ship with one product reference guide. All units feature Symbol's 5 year warranty.
Symbol LS1902T-I000-3100S Barcode Scanner Overview

The Cobra LS 1902T Bar Code Reader from Symbol Technologies is designed to fit your hand and your budget. Its sleek, lightweight, ergonomic design is perfectly balanced to minimize operator strain while maximizing comfort. The Cobra LS 1902T is a premium scanner at an entry-level price with features you'd only expect to find on high-end solutions.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • UPC/EAN Supplementals
  • Code 128
  • Code 39
  • Code 39 Full ASCII
  • Code 93
  • MSI
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • UCC/EAN 128
  • Codabar
  • Code 11
  • Coupon Code
  • Bookland EAN
  • RSS Variants
Light Source:
Laser
Scan Rate:
44 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5mil
  • 0" - 4.5"@7.5mil
  • 0" - 7"@10mil
  • 0" - 9"@100% UPC
  • 0" - 13.5"@20mil
  • 0" - 22.5"@40mil
  • 0" - 25"@55mil
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
5.3"
Width:
2.5"
Depth:
2.2"
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA

Laser Safety:

  • CDRH Class II
  • IEC Class
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol LS1902T-I000-3100S Barcode Scanner is also known as LS1902TI0003100S
