Symbol LS1203 – Barcode Scanner – 1D

Part Number: LS1203-7AZR0100AR
Model: LS1203
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  RS232 kit, Black. Includes 7 ft RS232 cable and 110VAC US power supply. RoHS Compliant.
Explore all Symbol LS1203 Barcode Scanners
Add to Quote
Symbol LS1203-7AZR0100AR Barcode Scanner
Symbol LS1203-7AZR0100AR Barcode Scanner
Symbol LS1203-7AZR0100AR Barcode Scanner
Symbol LS1203-7AZR0100AR Barcode Scanner Symbol LS1203-7AZR0100AR Barcode Scanner Symbol LS1203-7AZR0100AR Barcode Scanner
Full specifications (PDF)

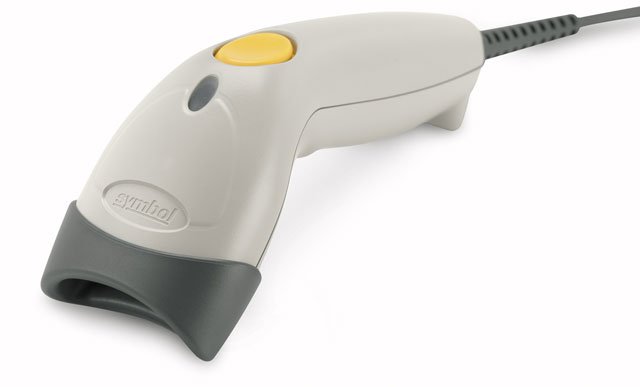

Symbol LS1203 Barcode Scanner Model Overview

The Zebra LS1203 handheld scanner is your ideal solution for everyday retail scanning needs. Offering high-quality laser scanning with user-friendly ergonomics, this scanner boasts a durable design that is perfect for small businesses such as gift shops, boutiques, and more. Its plug-and-play functionality ensures a hassle-free installation while minimizing training time for employees, leading to enhanced operational efficiency and increased customer satisfaction. With its robust construction and multiple interface options, the LS1203 is designed to deliver reliability, reduce operational costs, and support future POS systems effortlessly.
Key features:
  • Ergonomic design: Lightweight and balanced for maximum comfort during all-day use.
  • Plug-and-play ease: Eliminates setup and training time for fast implementation.
  • Durable construction: Withstands multiple drops and ensures minimal maintenance.
  • High-quality scanning: Accurate 1D laser scanning with Auto-Scan™ mode for seamless operation.
  • Multiple interfaces: Compatible with USB, RS-232, and Keyboard Wedge for versatile connectivity.

Specifications:
  • Physical Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
  • Weight: Approximately 4.3 oz. (122 g) without the cable
  • Power Source: Host power or external power supply (5+/-10% VDC @ 100 mA)
  • Operating Temperature: 32° to 122° F (0° to 50° C)
  • Storage Temperature: -40° to 158° F (-40° to 70° C)
  • Scan Rate: 100 scans per second
  • Drop Specs: Withstands multiple 5 ft. drops to concrete
  • Warranty: 3 years against defects in workmanship and materials
Symbol LS1203-7AZR0100AR Barcode Scanner Overview

The Symbol LS1203 Bar Code Reader from Symbol Technologies delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Symbol the global leader in handheld bar code scanning.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Depth of Field:
  • 0.5" - 4"@5mil
  • 0" - 6"@7.5mil
  • 0" - 7.5"@10mil
  • 0" - 8"@13mil - 100%UPC
  • 0" - 10"@20mil
Scan Pattern:
Bi-directional
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Power Supply Included:
Yes
Physical Characteristics
Color:
Black
Height:
2.4"
Width:
2.4"
Depth:
7.1"
Weight (Approximate):
4.30 oz
Miscellaneous
Package Contents:
  • Symbol LS1203 Bar Code Reader
  • 7 ft. Straight RS-232 Cable
  • Power Supply
Additional Information:

Supported Interfaces:

  • RS-232
  • Keyboard Wedge
  • USB

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
