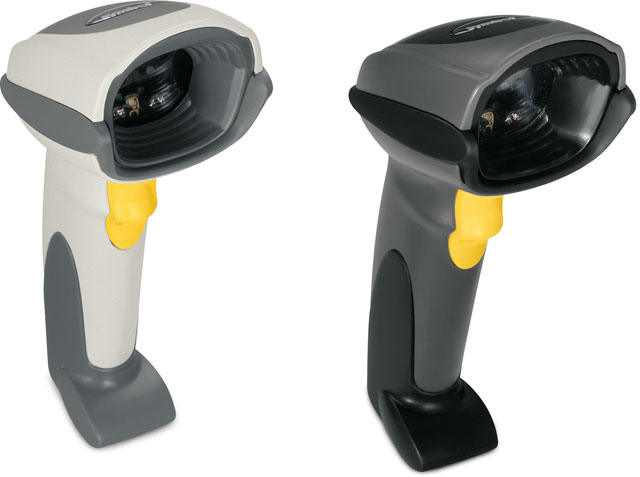

Motorola DS6708-SR20001ZZR Barcode Scanners


5.0

(1 reviews)

Symbol DS6708 - SCANNER ONLY, 2D Imager. Cables and accessories sold separately. Color: White.
High-quality data and image capture!

The handheld DS6708 combines a 1D and 2D barcode scanner, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. The DS6708 reduces capital and operating expenses by eliminating the need to purchase separate devices to read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN with Supplementals
    • UPC/EAN
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Macro Micro PDF-417
    • Composite Codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • MaxiCode
    • DataMatrix
    • QR Code
    • UPC/EAN with Supplementals
    • UPC/EAN
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • PDF 417
    • Macro Micro PDF-417
    • Composite Codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • MaxiCode
    • DataMatrix
    • QR Code
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.10" - 6.50"@5 mil - Code 39
    • 0.50" - 9.70"@13 mil - 100% UPC/EAN
    • 0.50" - 15.20"@20 mil - Code 39
    • 0.90" - 7"@10 mil - PDF417
    • 1.10" - 7.50"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6708
  • Product Name: DS6708 Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Electrical Safety:
    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1 / IEC60950-1
    • Laser Safety:
    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • IEC60825-21CFR1040.10
    • IEC6082521-CFR1040.11
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
    • Medical electrical equipment:
    • EN60001-1-2: 2002
    • Environmental:
    • RoHS directive 2002/95/EEC
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • USB
    • IBM 468X/469X
    • Keyboard Wedge

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model DS6708
Scan Pattern Area
Scanner Type Imager
Connectivity Corded
Connection USB
Form Factor Handheld
Scanner Capability 2D
Color White
Included Cables Scanner Only - No Cable
Ruggedness General Purpose
