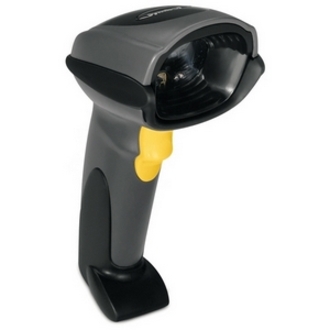

Symbol DS6708 – Barcode Scanner – 2D

Part Number: DS6708-SMBK0100ZR
Model: DS6708
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
2D
Scanner Type
Imager

Product Description:

  PS/2 Kit, 2D Imager. Includes 7ft straight PS/2 keyboard wedge cable. Color: Black.
Explore all Symbol DS6708 Barcode Scanners
Add to Quote
Symbol DS6708-SMBK0100ZR Barcode Scanner
Symbol DS6708-SMBK0100ZR Barcode Scanner
Symbol DS6708-SMBK0100ZR Barcode Scanner
Symbol DS6708-SMBK0100ZR Barcode Scanner
Symbol DS6708-SMBK0100ZR Barcode Scanner Symbol DS6708-SMBK0100ZR Barcode Scanner Symbol DS6708-SMBK0100ZR Barcode Scanner Symbol DS6708-SMBK0100ZR Barcode Scanner
Full specifications (PDF)

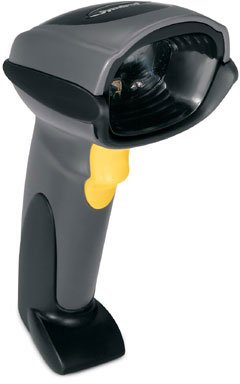

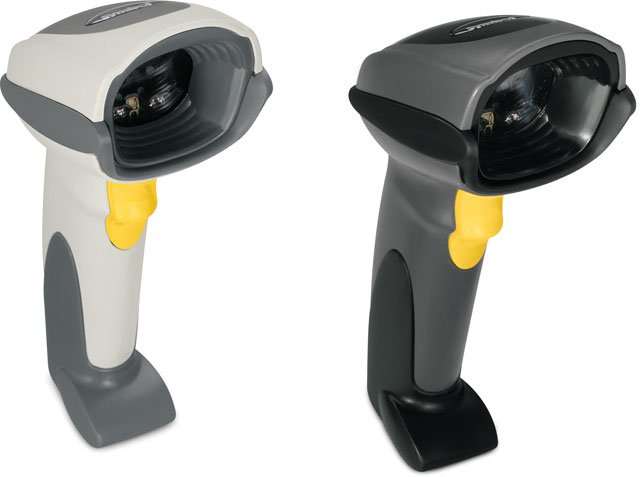

Symbol DS6708 Barcode Scanner Model Overview

The handheld DS6708 combines a 1D and 2D barcode scanner, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. The DS6708 reduces capital and operating expenses by eliminating the need to purchase separate devices to read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.
Symbol DS6708-SMBK0100ZR Barcode Scanner Overview

The versatile DS6708 Standard Range Bar Code Reader from Symbol Technologies delivers the functionality of a 1D and 2D bar code scanner and document scanner in a single device. Designed to meet a wide variety of business needs across a variety of industries, the DS6708 SR enhances employee productivity and streamlines business processes in retail, healthcare, government, manufacturing with high performance scanning features.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Trioptic Code 39
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Bookland EAN
  • IATA
  • Code 32
  • RSS Variants
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.1" - 6.5"@5mil - Code 39
  • 0.5" - 9.7"@13mil - 100% UPC/EAN
  • 0.5" - 15.2"@20mil - Code 39
  • 0.9" - 7"@10mil - PDF417
  • 1.1" - 7.5"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
6.6"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • DS6708 SR Bar Code Reader
  • Keyboard Wedge Cable
Additional Information:

Supported Interfaces:

  • IBM 468X/469X
  • Keyboard Wedge

    • Certifications & Standards:
    • RoHS Compliant
    • Medical Electrical Equipment: EN60001-1-2: 2002

    Electrical Safety:

    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1

    Laser Safety:

    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • 21CFR1040.10
    • 21CFR1040.11
    • CDRH Class II
    • IEC Class 2

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0853585464541, 4054318052257
    UPC: 853585464541
    EAN: 0853585464541, 4054318052257
    UNSPSC: 43211701
