Symbol DS6708-DL20001ZZR Barcode Scanner

Zebra DS8108-DL00006ZZWW Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra DS8108-DL00006ZZWW Barcode Scanner.

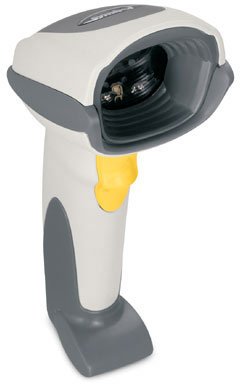

Symbol DS6708 - SCANNER ONLY, 2D Imager, Drivers License capability and Invision. Cables and accessories sold separately. Color: White.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Read More

Need a different version? See all Symbol DS6708 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare

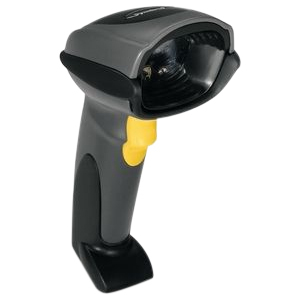

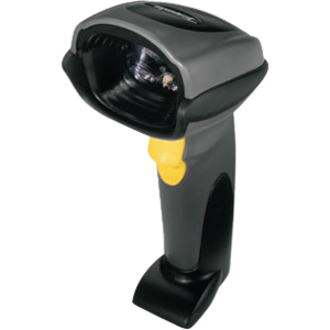

Symbol DS6708-DL20001ZZR Barcode Scanner
Symbol DS6708-DL20001ZZR Barcode Scanner Symbol DS6708-DL20001ZZR Barcode Scanner Symbol DS6708-DL20001ZZR Barcode Scanner Symbol DS6708-DL20001ZZR Barcode Scanner Symbol DS6708-DL20001ZZR Barcode Scanner
Symbol DS6708-DL20001ZZR Barcode Scanner
Symbol DS6708-DL20001ZZR Barcode Scanner
Symbol DS6708-DL20001ZZR Barcode Scanner
Symbol DS6708-DL20001ZZR Barcode Scanner
Symbol DS6708-DL20001ZZR Barcode Scanner
Full specifications (PDF)
Symbol DS6708 Barcode Scanner Model Overview
The handheld DS6708 combines a 1D and 2D barcode scanner, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. The DS6708 reduces capital and operating expenses by eliminating the need to purchase separate devices to read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.
Symbol DS6708-DL20001ZZR Barcode Scanner Overview

The DS6708-DL combines all the features of Motorola's standard DS6708 imager, such as omni-directional 1D/2D bar code scanning, with embedded and server-based parsing agents that enable users to read the PDF-417 bar code on a US driver's license and use that information for a multitude of applications. Because the parsing is done in the scanner and the output is controlled by the user, the scanner can easily be used in all environments with very little start-up effort.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1-D:

  • UPC/EAN and with supplementals
  • Code 39
  • Code 39 Full ASCII
  • Tri-optic Code 39
  • GS1DataBar (formerly RSS)
  • Code 128
  • Code 128 Full ASCII
  • GS1-128 (formerly UCC/EAN-128)
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Codell
  • IATA
  • Bookland EAN
  • Code 32

PDF417 (and Variants):

  • PDF417
  • MicroPDF417 and composite codes

Postal:

  • U.S. Postnet and Planet
  • U.K.
  • Japan
  • Australian
  • Dutch

2-D:

  • MaxiCode
  • DataMatrix (ECC 200)
  • QR Code
Image Sensor Type:
Imager
Depth of Field:
  • 1.1" - 6.5"@5mil - Code 39
  • 0.5" - 9.7"@13mil - 100% UPC/EAN
  • 0.5" - 15.2"@20mil - Code 39
  • 0.9" - 7"@10mil - PDF417
  • 1.1" - 7.5"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
Black
Height:
6.6"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS-232
  • USB
  • IBM 468x/469x
  • Keyboard Wedge

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0853585465043
UPC: 853585465043
EAN: 0853585465043
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol DS6708-DL20001ZZR Barcode Scanner is also known as SYM-DS6708DL20001ZZR or DS6708DL20001ZZR.
