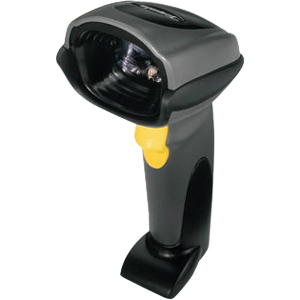

Symbol DS6707-HD20007ZZR Barcode Scanner

The Symbol DS6707-HD20007ZZR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol DS6707 - SCANNER ONLY, 2D Imager, High Density. Cables and accessories must be purchased separately. Color: Black.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

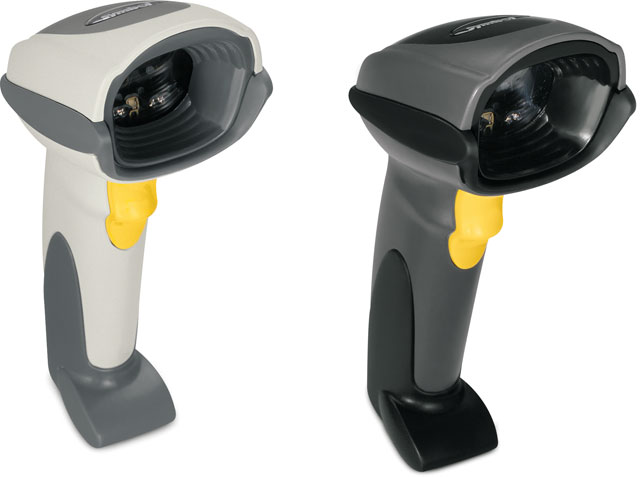

Symbol DS6707 Barcode Scanner Model Overview
The handheld DS6707 combines a 1D/2D barcode scanner with a 1.3 mega pixel digital camera and a high performance document capture scanner in a single cost-effective device, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. True point-and-shoot image capture with Symbol's text enhancement technology delivers superior document clarity, even on fine print. The DS6707 reduces capital and operating expenses by eliminating the need to purchase separate devices to capture images and read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.
Symbol DS6707-HD20007ZZR Barcode Scanner Overview

The Symbol DS6707-DP is a premier general purpose scanner, offering the maximum in data capture flexibility. The Symbol DS6707-DP is able to capture images and read virtually all 1D and 2D bar codes and direct part marks (DPM) including the most challenging mark, dot peen. This highly versatile device is ideal in industries that depend on a wide variety of data types, such as health care, aerospace and automotive. With the DS6707-DP, workers can capture the right information at the right time, driving inefficiencies and errors out of business processes - improving accuracy as well as employee productivity.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1-D:

  • UPC/EAN and with supplementals
  • Code 39
  • Code 39 Full ASCII
  • Tri-optic Code 39
  • GS1DataBar (formerly RSS)
  • Code 128
  • Code 128 Full ASCII
  • GS1-128 (formerly UCC/EAN-128)
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Codell
  • IATA
  • Bookland EAN
  • Code 32

PDF417 (and Variants):

  • PDF417
  • MicroPDF417 and composite codes

Postal:

  • U.S. Postnet and Planet
  • U.K.
  • Japan
  • Australian
  • Dutch
  • 4 State Postal
  • Post US 4

2-D:

  • MaxiCode
  • DataMatrix (ECC 200)
  • QR Code
  • MicroQR
  • Aztec
Light Source:
Laser
Image Sensor Type:
Imager
Depth of Field:
  • 0.84" - 2.42"@3mil - Code 39
  • 0.42" - 3.13"@4mil - Code 39
  • 0.29" - 3.38"@5mil - Code 39
  • 4.38"@7.5mil - Code 39
  • 0.59" - 4.96"@10mil - Code 39
  • 0.42" - 8.21"@20mil - Code 39
  • 0.21" - 5.13"@13mil - 100% UPC
  • 0.63" - 3.10"@6.67mil - PDF417
  • 0.46" - 3.54"@10mil - PDF417
  • 1.33" - 4.46"@15mil - PDF417
  • 1.04" - 2.13"@4mil - Data Matrix
  • 0.79" - 2.50"@5mil - Data Matrix
  • 0.50" - 3"@7.5mil - Data Matrix
  • 0.54" - 3.50"@10mil - Data Matrix
  • 1.13" - 2.17"@4mil - QR Code
  • 0.88" - 2.54"@5mil - QR Code
  • 0.67" - 3"@7.5mil - QR Code
  • 0.46" - 3.42"@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Twilight Black
Height:
6.6"
Width:
2.8"
Depth:
5.1"
Weight (Approximate):
7.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0778889967010, 0783555028414, 5711045932458
UPC: 778889967010, 783555028414
EAN: 0778889967010, 0783555028414, 5711045932458
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol DS6707-HD20007ZZR Barcode Scanner is also known as SYM-DS6707HD20007ZZR or DS6707HD20007ZZR.
