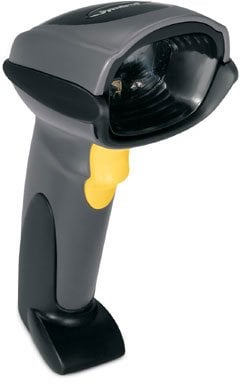

Symbol DS6707-DC20007ZZR Barcode Scanner

Zebra DS8108-SR00007ZZWW Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra DS8108-SR00007ZZWW Barcode Scanner.
Symbol DS6707 - SCANNER ONLY, 2D Imager, Document Capture capability. Color: Black. Cables and accessories must be purchased separately.
Connectivity
Corded
Form Factor
Handheld
Scanner Capability
2D
Scanner Type
Imager
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • LED aimer is a perfect choice for patient-facing applications
Read More
Symbol DS6707 Barcode Scanner Model Overview
The handheld DS6707 combines a 1D/2D barcode scanner with a 1.3 mega pixel digital camera and a high performance document capture scanner in a single cost-effective device, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. True point-and-shoot image capture with Symbol's text enhancement technology delivers superior document clarity, even on fine print. The DS6707 reduces capital and operating expenses by eliminating the need to purchase separate devices to capture images and read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.
Symbol DS6707-DC20007ZZR Barcode Scanner Overview

The versatile DS6707 Document Capture Bar Code Scanner from Symbol Technologies delivers the functionality of a 1D and 2D bar code scanner, digital camera and document scanner in a single device. Designed to meet a wide variety of business needs across a variety of industries, the DS6707 DC enhances employee productivity and streamlines business processes in retail, healthcare, government, manufacturing and more by combining an onboard 1.3 megapixel camera with high performance scanning features and superior digital imaging technology.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Trioptic Code 39
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Bookland EAN
  • IATA
  • Code 32
  • RSS Variants
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 10"@5mil - Code 39
  • 0.8" - 16.8"@13mil - 100% UPC/EAN
  • 0.7" - 28.3"@20mil - Code 39
  • 1.9" - 11.8"@10mil - PDF417
  • 2.6" - 12.2"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
6.6"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.40 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • USB
  • Serial
  • Certifications & Standards:
    • RoHS Compliant
    • Medical Electrical Equipment: EN60001-1-2: 2002

    Electrical Safety:

    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1

    Laser Safety:

    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • 21CFR1040.10
    • 21CFR1040.11
    • CDRH Class II
    • IEC Class 2

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0000886367112, 0616174224069, 0778889966822, 4054842394717
    UPC: 000886367112, 616174224069, 778889966822
    EAN: 0000886367112, 0616174224069, 0778889966822, 4054842394717
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol DS6707-DC20007ZZR Barcode Scanner is also known as SYM-DS6707DC20007ZZR or DS6707DC20007ZZR.
