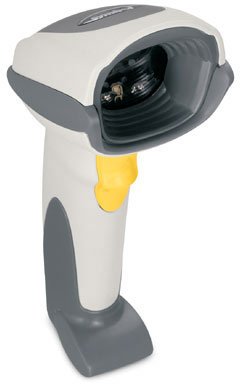

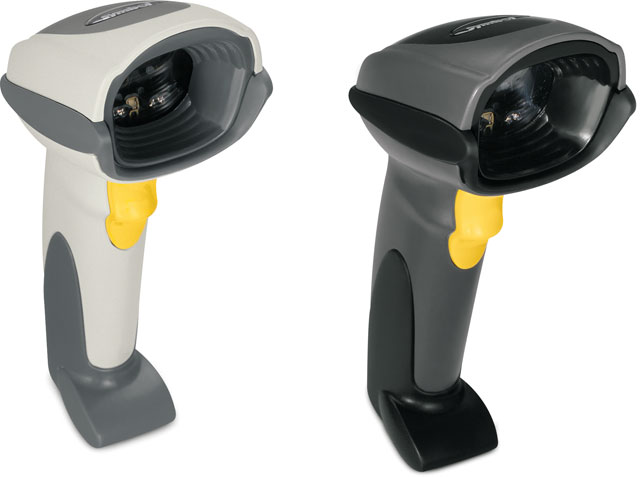

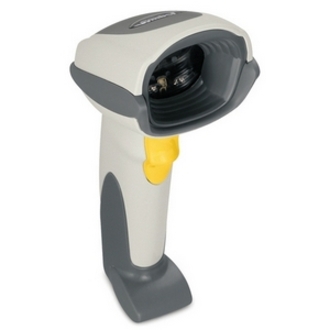

Motorola DS6707-DC20001ZZR Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol DS6707-DC - SCANNER ONLY, 2D Imager, Document Capture capability. Cables and accessories must be purchased separately. Color: White.
Imager, Camera and Document Scanner in One!

The handheld DS6707 combines a 1D/2D barcode scanner with a 1.3 megapixel digital camera and a high performance document capture scanner in a single cost-effective device, maximizing employee productivity and streamlining business processes in the retail store, post office, pharmacy or manufacturing floor. True point-and-shoot image capture with Symbol's text enhancement technology delivers superior document clarity, even on fine print. The DS6707 reduces capital and operating expenses by eliminating the need to purchase separate devices to capture images and read different barcode symbologies. Remote scanner management capability further reduces the total cost of ownership, while multiple interface options makes for easy installation anywhere.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 32
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 10"@5 mil - Code 39
    • 0.80" - 16.80"@13 mil - 100% UPC/EAN
    • 0.70" - 28.30"@20 mil - Code 39
    • 1.90" - 11.80"@10 mil - PDF417
    • 2.60" - 12.20"@10 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6707
  • Product Name: DS6707 DC Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Medical Electrical Equipment: EN60001-1-2: 2002
    • Electrical Safety:
    • UL6950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1/IEC60950-1
    • Laser Safety:
    • EN60825-1:1994 +A1: 2002 +A2 :2001
    • IEC60825-1
    • 21CFR1040.10
    • 21CFR1040.11
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • CISPR 22
    • CISPR 24
  • Additional Information:
    • Supported Interfaces:
    • USB
    • Serial

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model DS6707
Scanner Type Imager
Color White
Scan Pattern Area
Scanner Capability 2D
Included Cables Scanner Only - No Cable
