Symbol DS 6608 – Barcode Scanner – 1D

Part Number: DS6608-SR20001R
Model: DS 6608
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Standard Range - Color: White. Order cables and power supply separately. See accessories. RoHS Compliant.
Explore all Symbol DS 6608 Barcode Scanners
Add to Quote

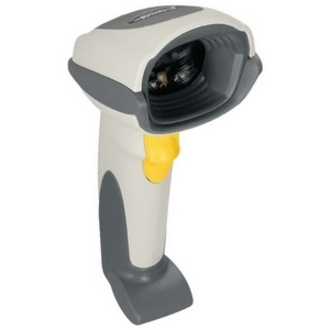

Symbol DS6608-SR20001R Barcode Scanner
Symbol DS6608-SR20001R Barcode Scanner
Symbol DS6608-SR20001R Barcode Scanner
Symbol DS6608-SR20001R Barcode Scanner Symbol DS6608-SR20001R Barcode Scanner Symbol DS6608-SR20001R Barcode Scanner
Full specifications (PDF)

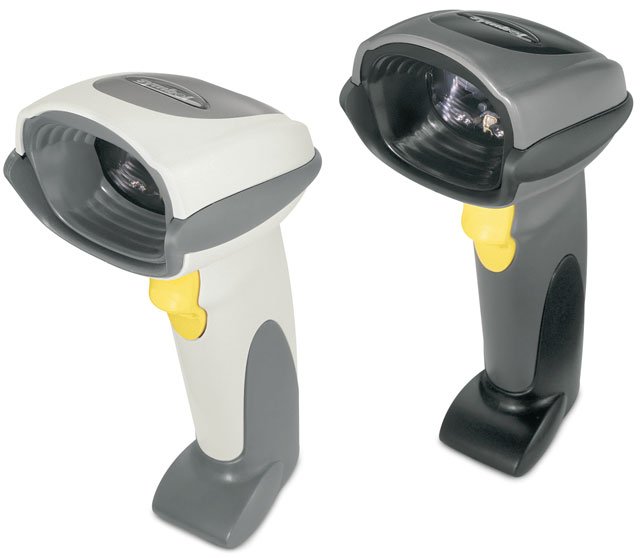

Symbol DS 6608 Barcode Scanner Model Overview

The DS 6608 barcode scanner from Symbol uses digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. The DS 6608 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omni-directional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 6608 has multi-interface capabilities that allow it to work with a variety of hosts.
Symbol DS6608-SR20001R Barcode Scanner Overview

The DS6608 from Symbol Technologies provides unmatched performance in the digital scanning of images and one-dimensional (1D) and two-dimensional (2D) bar codes. Built to read bar codes omni-directionally, the DS6608 improves productivity for all data capture activities across enterprise. For capturing images and bar codes, the DS6608 is ideal. These digital scanners offer true flexibility. With the optional Intellistand, can automatically switch between hands-free and hand-held scanning without having to scan a programming bar code, saving time and improving efficiency.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • Composite Codes
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
Light Source:
Laser
Image Sensor Type:
CCD
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 14"@100% UPC/EAN
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
6.6"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.04 oz
Miscellaneous
Additional Information:

Interfaces Supported:

  • USB
  • RS232
  • Keyboard Wedge
  • IBM 468X/469X
  • Synapse

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • RoHS Compliance
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
