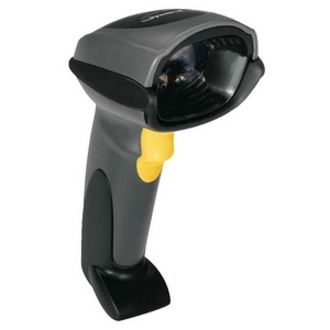

Symbol DS6608-HD20007 Barcode Scanner

Symbol DS6708-SR20007ZZR Barcode Scanner A newer version of this item is available.
It is replaced by the Symbol DS6708-SR20007ZZR Barcode Scanner.
Symbol DS 6608 - Hi-Density - Color: Black. Order cables and power supply separately. See accessories.
  • Speed up customer's checkout experience
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Add to Quote

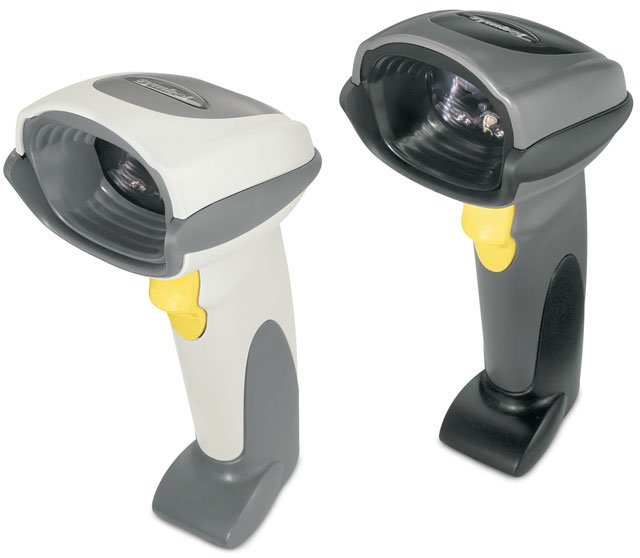

Symbol DS 6608 Barcode Scanner Model Overview
The DS 6608 barcode scanner from Symbol uses digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. The DS 6608 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omni-directional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 6608 has multi-interface capabilities that allow it to work with a variety of hosts.
Symbol DS6608-HD20007 Barcode Scanner Overview

The DS6608 High Density from Symbol Technologies provides unmatched performance in the digital scanning of images and one-dimensional (1D) and two-dimensional (2D) bar codes. Built to read bar codes omni-directionally, the DS6608 High Density improves productivity for all data capture activities across your enterprise. For capturing images and bar codes, the DS6608 High Density is ideal.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UCC/EAN 128
  • JAN-13
  • JAN-8
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Discrete 2 of 5
  • Interleaved 2 of 5
  • Code 93
  • Code 32
  • MSI
  • Code 11
  • Bookland EAN
  • IATA
  • UCC/EAN
  • RSS
  • RSS Variants
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • QR Code
  • U.S. Planet
  • U.S. Postnet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
  • Composite Code
  • Coupon Code
  • ECC 200
  • JAN 128
Light Source:
Laser
Image Sensor Type:
CCD
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 7"@100% UPC
  • 1.9" - 3.6"@5mil - PDF417
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
Black
Height:
6.6"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.04 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Platform Supported:
    PC
    Certifications & Standards:

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    Laser Safety:

    • CDRH Class II
    • IEC Class 2

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol DS6608-HD20007 Barcode Scanner is also known as SYM-DS6608HD20007 or DS6608HD20007.
