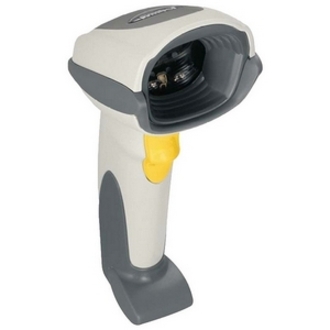

Motorola DS6608-HD20001R Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol DS 6608 - Scanner only. Hi-Density - Color: White. Includes US Power supply, order cables separately. See accessories.
Laser-Like Scanning with the Benefits of Digital

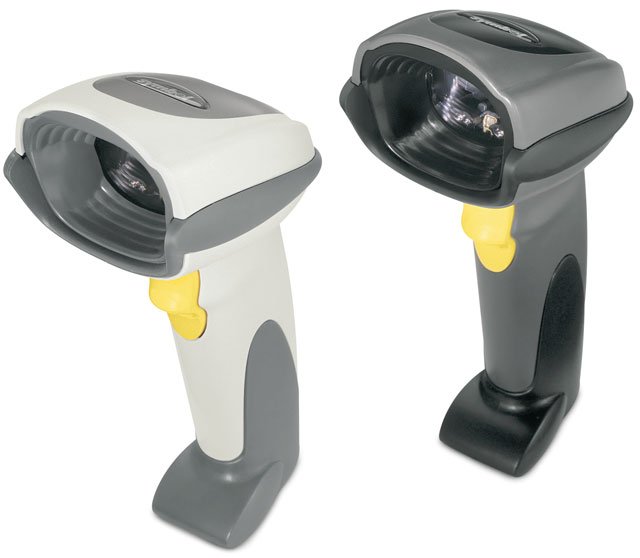

The DS 6608 barcode scanner from Symbol uses digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. The DS 6608 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omnidirectional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 6608 has multiple interface capabilities that allow it to work with a variety of hosts.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-13
    • JAN-8
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • Composite Code
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-13
    • JAN-8
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • Composite Code
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Maximum Scan Resolution: 5 mil
  • Depth of Field: 1" - 14"@ - 100% UPC/EAN

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS6608
  • Product Name: DS6608 Barcode Reader

Physical Characteristics

  • Height: 6.6"
  • Width: 2.8"
  • Depth: 4.7"
  • Color: White
  • Weight (Approximate): 6.04 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeWand EmulationIBM 468X/469XUSBSynapse

Power Description

  • Input Voltage: 5 V DC

Full specifications (PDF)
