Motorola DS6608-HD20001 Barcode Scanner

Symbol DS 6608 - Scanner only. Hi-Density - Color: White. Includes US Power supply, order cables separately. See accessories.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
Read More

Full specifications (PDF)

Laser-Like Scanning with the Benefits of Digital
The DS 6608 barcode scanner from Symbol uses digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. The DS 6608 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omnidirectional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 6608 has multiple interface capabilities that allow it to work with a variety of hosts.

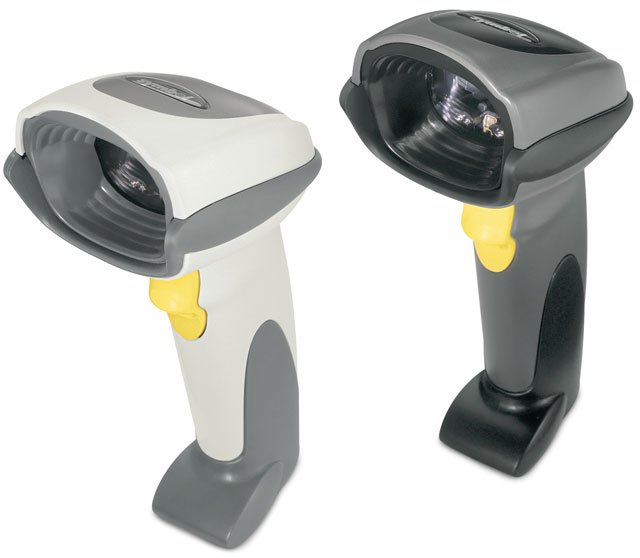

Symbol DS6608-HD20001 Overview

The DS6608 High Density from Symbol Technologies provides unmatched performance in the digital scanning of images and one-dimensional (1D) and two-dimensional (2D) bar codes. Built to read bar codes omni-directionally, the DS6608 High Density improves productivity for all data capture activities across your enterprise. For capturing images and bar codes, the DS6608 High Density is ideal.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UCC/EAN 128
  • JAN-13
  • JAN-8
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Discrete 2 of 5
  • Interleaved 2 of 5
  • Code 93
  • Code 32
  • MSI
  • Code 11
  • Bookland EAN
  • IATA
  • UCC/EAN
  • RSS
  • RSS Variants
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • QR Code
  • U.S. Planet
  • U.S. Postnet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
Light Source:
Laser
Depth of Field:
  • 1" - 14"@100% UPC/EAN
Scan Pattern:
Omni-directional
Scanning Distance:
14"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
White
Height:
6.6"
Width:
2.8"
Depth:
4.7"
Weight (Approximate):
6.04 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • IBM 468X/469X
  • USB
  • Certifications & Standards:

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    Laser Safety:

    • CDRH Class II
    • IEC Class 2

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
