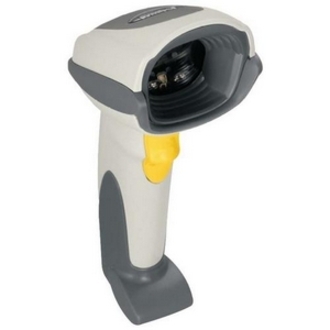

Motorola DS6607-HD20007 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol DS 6607 - USB/RS-232, Near Focus - Color: Black. Order cables and power supply separately. See accessories.
Reducing Scanning and Decoding Times

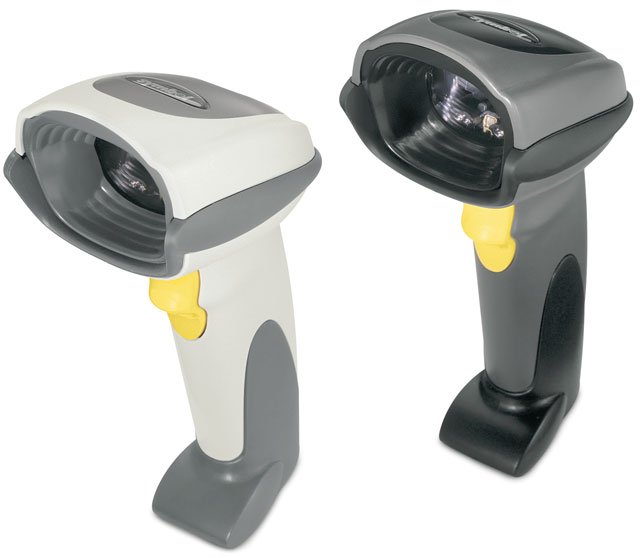

The DS 6607 barcode scanner from Symbol uses digital imaging technology to accurately capture and transfer images (such as for digital document storage) as well as all types of two-dimensional (2D) and one-dimensional (1D) barcodes. The DS 6607 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omnidirectional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 6607 offers USB functionality and a fast transfer rate.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • EAN/UCC 128
    • RSS Variants
    • PDF 417
    • MacroPDF
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Scanner Type: Imager with Laser Aiming
  • Interface Options:
    • RS-232
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 1.1 - 4.8"@5mils - Code 39
    • 0.5 - 7"@13mils - 100% UPC
    • 0.3 - 7.3"@10mils - Code 39
    • 2.4 - 7.4" - Postnet
    • 1.9 - 3.6"@5mils - PDF417
    • 1.5 - 4.5"@6.6mils - PDF417
    • 1.4 - 5.1"@10mils - OR Code
    • 1.1 - 5.1"@10mils - MicroPDF
    • 1.1 - 5.1"@10mils - Data Matrix
    • 1.1 - 5.3"@10mils - PDF417
    • 0.6 - 7.8"@35mils - Maxicode

General Information

  • Manufacturer: Symbol
  • Product Name: DS6607 HD (High Density) Digital Barcode Scanner

Physical Characteristics

  • Dimensions: 6.55" (166.37mm) x 2.82" (71.63mm) x 4.72" (119.89mm)
  • Weight: 6.04 oz - Without Cable
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Symbol DS 6607 Scanner
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7 ft. (2m) Straight, Series A Connector.
In Stock: Ships Same Day


5.0

(1 reviews)

$25.40
+ Add to Quote
Motorola (50-16000-182R)
AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
In Stock: Ships Same Day


5.0

(1 reviews)

$12.80
+ Add to Quote
Motorola (23844-00-00R)
US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R).
In Stock: Ships Same Day
$15.70
+ Add to Quote
Symbol (20-66483-02R)
Black intellistand assembly for the DS6xxx
In Stock: Ships Same Day
$69.30
+ Add to Quote
Symbol (11-66553-06R)
Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray.
In Stock: Ships Same Day
$28.20
+ Add to Quote
Protect Your Product
Symbol Service Contract - 5 year (SXB-DS6607-50)
5 year comprehensive overnight free replacement service for any problems with your DS6607. Available only on new units.
Ships in 3-5 Days
$44.80
+ Add to Quote

The Symbol DS6607-HD20007 is also known as Symbol Technologies SYM-DS6607HD20007 or DS6607HD20007 .
