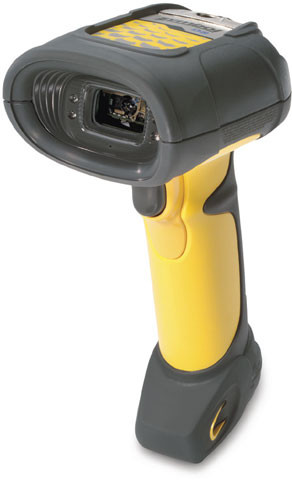

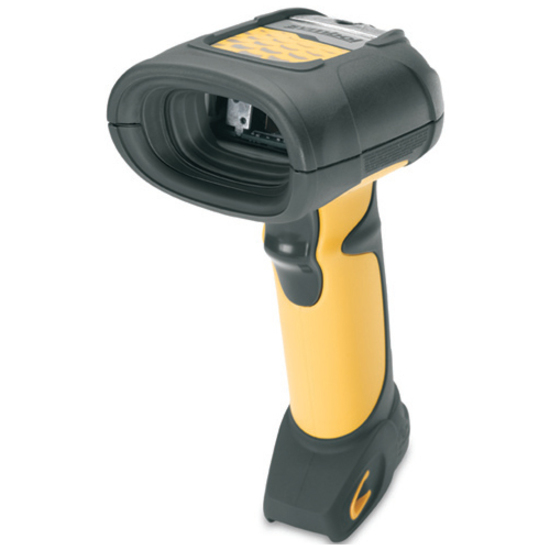

Symbol DS 3478 – Barcode Scanner – 1D

Part Number: DS3478-SFBU0100UR
Model: DS 3478
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  USB kit with Smart Focus. Includes cradle, power supply and USB cable. Color: Yellow/Black.
Explore all Symbol DS 3478 Barcode Scanners
Add to Quote
Symbol DS3478-SFBU0100UR Barcode Scanner
Symbol DS3478-SFBU0100UR Barcode Scanner
Symbol DS3478-SFBU0100UR Barcode Scanner
Symbol DS3478-SFBU0100UR Barcode Scanner Symbol DS3478-SFBU0100UR Barcode Scanner Symbol DS3478-SFBU0100UR Barcode Scanner
Full specifications (PDF)

Symbol DS 3478 Barcode Scanner Model Overview

The Symbol DS 3478 rugged, cordless scanners use digital imaging technology to accurately capture direct part marks (DPM), and 1D and 2D barcodes. The DS 3478 series is available in three models. The DS3478-SF is ideal for scanning 1D and 2D barcodes. For high-density 2D matrix codes, choose the DS3478-HD. For DPM, select the DS3478-DP. Two-position "Smart" focus technology, unique to Motorola, provides the flexibility to meet scanning needs in a wide range of applications and environments. Omni-directional scanning, available on all models, lets operators quickly capture symbols from any angle.
Symbol DS3478-SFBU0100UR Barcode Scanner Overview

The Symbol DS3478-SF Rugged Bar Code Reader is a cordless reader that uses digital imaging technology to accurately capture direct part marks (DPM), and 1D and 2D bar codes. The DS3478-SF is ideal for scanning 1D and 2D bar codes. Two-position "Smart" focus (SF) technology, unique to Motorola, provides the flexibility to meet scanning needs in a wide range of applications and environments. Omni-directional scanning lets operators quickly capture symbols from any angle.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix (ECC 2000)
  • Composite Codes
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • UL Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
Light Source:
Laser
Image Sensor Type:
CCD
Maximum Scan Resolution:
5 mil
Scan Pattern:
Omni-directional
Scanning Distance:
328.08 ft
Cable Type Included:
USB
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Color:
  • Black
  • Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
14.60 oz
Miscellaneous
Package Contents:
  • Symbol DS3478-SF Rugged Bar Code Reader
  • Cradle
  • 7 ft. Straight USB Cable
  • Power Supply
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • Synapse
  • USB
  • IBM 468X/469X

USB Cable separate

Certifications & Standards:

Environmental:

  • RoHS Compliant
  • Environmental Sealing IP65

EMC:

  • EN 301 489-1
  • EN 301 489-17
  • IEC 60601-1-2
  • EN 55022
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • FCC Part 15 Class B
  • ICES 003 Class B
  • European Union EMC Directive
  • Japan VCCI/MITI/Dentori

Electrical Safety:

  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1
  • C22.2 No. 60950-1

Laser Safety:

  • EN 60825-1
  • IEC 60825-1
  • 21CFR1040.10
  • CDRH Class II
  • IEC Class 2

RF Exposure:

  • EN 50360
  • EN 50361
  • FCC Part 2
  • RSS102
  • OET Bulletin 65

Radio:

  • EN 300 328
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
