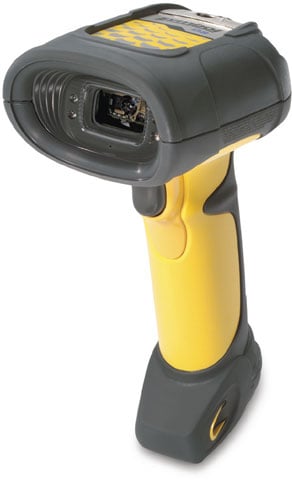

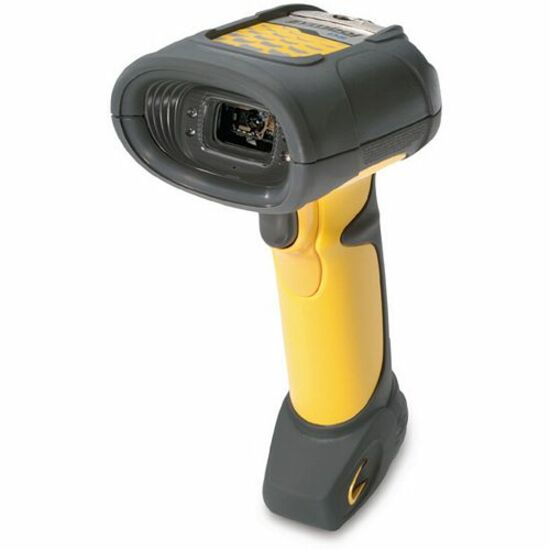

Symbol DS3478-SF20005WW Barcode Scanner

Symbol DS3478-SF20005WR Barcode Scanner A newer version of this item is available.
It is replaced by the Symbol DS3478-SF20005WR Barcode Scanner.
Symbol DS 3478 - Imager only with Smart Focus. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories
  • Increase productivity and performance by excluding the cable
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued See Replacement
Add to Quote
Symbol DS 3478 Barcode Scanner Model Overview
The Symbol DS 3478 rugged, cordless scanners use digital imaging technology to accurately capture direct part marks (DPM), and 1D and 2D barcodes. The DS 3478 series is available in three models. The DS3478-SF is ideal for scanning 1D and 2D barcodes. For high-density 2D matrix codes, choose the DS3478-HD. For DPM, select the DS3478-DP. Two-position "Smart" focus technology, unique to Motorola, provides the flexibility to meet scanning needs in a wide range of applications and environments. Omni-directional scanning, available on all models, lets operators quickly capture symbols from any angle.
Symbol DS3478-SF20005WW Barcode Scanner Overview

Symbol's rugged DS3478 SF(Smart Focus) Bar Code Reader uses digital imaging technology to accurately capture all types of one-dimensional (1D) and two-dimensional (2D) bar codes while offering the high performance typically found only in laser scanners. With the DS3478, you benefit from a scanning solution designed specifically for fast-paced production environments.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
  • PDF 417
  • Macro PDF-417
  • MaxiCode
  • DataMatrix
  • Composite Codes
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Scan Pattern:
Omni-directional
Scanning Distance:
328.08 ft
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Power Source:
Battery
Physical Characteristics
Form Factor:
Handheld
Color:
  • Yellow
  • Black
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
14.60 oz
Miscellaneous
Package Contents:
  • DS3478 Bar Code Reader
  • Quick Start Guide
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate

Certifications & Standards:
  • Sealing:IP65

Input Transient Protection:

  • IEC 1000-4-(2,3,4,5,6,11)

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Japan VCCI/MITI/ Dentori

Laser Safety:

  • CDRH Class II
  • IEC Class 2
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol DS3478-SF20005WW Barcode Scanner is also known as SYM-DS3478SF20005WW or DS3478SF20005WW.
