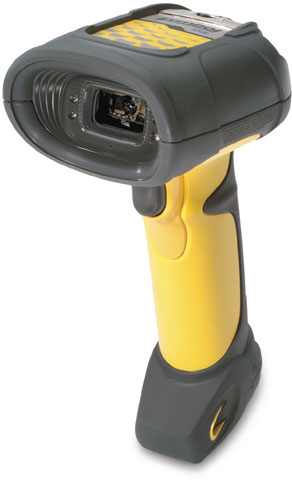

Symbol DS3478-HD20005WR Barcode Scanner

A newer version of this item is available.
It is replaced by the Motorola DS3578-HD20005WR Barcode Scanner.

Symbol DS 3478 - Imager only with High Density reading. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories. RoHS Compliant.

Speed up customer's checkout experience
Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
Incredible and responsive 2D scanning even on curved or translucent surfaces
With Bluetooth technology, you can scan barcodes and then transmit data from the base

Need a different version? See all Symbol DS 3478 Barcode Scanners

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Symbol DS 3478 Barcode Scanner Model Overview

The Symbol DS 3478 rugged, cordless scanners use digital imaging technology to accurately capture direct part marks (DPM), and 1D and 2D barcodes. The DS 3478 series is available in three models. The DS3478-SF is ideal for scanning 1D and 2D barcodes. For high-density 2D matrix codes, choose the DS3478-HD. For DPM, select the DS3478-DP. Two-position "Smart" focus technology, unique to Motorola, provides the flexibility to meet scanning needs in a wide range of applications and environments. Omni-directional scanning, available on all models, lets operators quickly capture symbols from any angle.

Symbol DS3478-HD20005WR Barcode Scanner Overview

The Symbol DS3478-HD of rugged, cordless digital scanner uses digital imaging technology to accurately read a wide variety of one-dimensional (1D) and two-dimensional (2D) bar codes, to capture high density 2D matrix codes, choose the DS3478-HD.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

UPC/EAN
UPC/EAN Supplementals
UCC/EAN 128
JAN-13
JAN-8
Code 39
Code 39 Full ASCII
Code 39 TriOptic
Code 128
Code 128 Full ASCII
Codabar
Interleaved 2 of 5
Discrete 2 of 5
Code 93
MSI
Code 11
Code 32
Bookland EAN
IATA
UCC/EAN 128
RSS Variants
PDF 417
Micro PDF-417
MaxiCode
DataMatrix (ECC 2000)
Composite Code
QR Code
U.S. Postnet
U.S. Planet
U.K. Postal
Japan Postal
Australian Post
Dutch Postal

Image Sensor Type:

Imager

Maximum Scan Resolution:

5 mil

Depth of Field:

1" - 14"@100% UPC/EAN

Scan Pattern:

Omni-directional

Scanning Distance:

328.08 ft

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Color:

Yellow
Black

Height:

7.3"

Width:

4.8"

Depth:

2.9"

Weight (Approximate):

12.56 oz

Miscellaneous

Package Contents:

DS3478-HD Bar Code Reader
Quick Start Guide

Additional Information:

Interface Option:

Serial
Keyboard Wedge
Wand Emulation
IBM 468X/469X
USB

USB Cable separate

Certifications & Standards:

Electrical Safety:

UL1950
CSA C22.2 No. 950
EN60950/IEC950

Laser Safety:

CDRH Class II
IEC Class 2

EMI/RFI:

FCC Part 15 Class B
ICES-003 Class B
European Union EMC Directive
Australian SMA
RoHS Compliance

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0702334646441, 5052178400446

UPC: 702334646441

EAN: 0702334646441, 5052178400446

UNSPSC: 43211701
