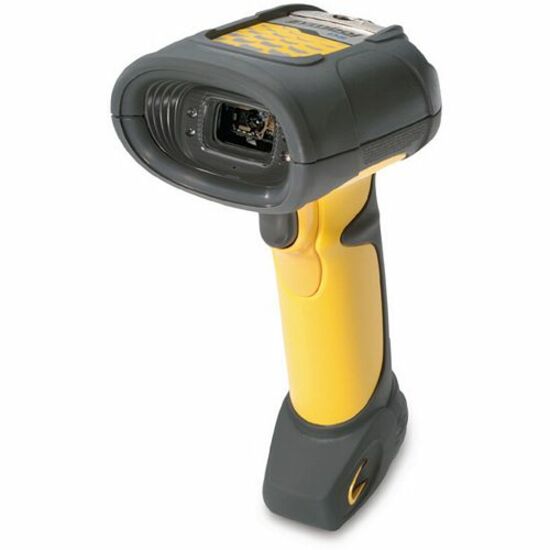

Symbol DS3478-DP20005WR Barcode Scanner

Motorola DS3578-DP20005WR Barcode Scanner A newer version of this item is available.
It is replaced by the Motorola DS3578-DP20005WR Barcode Scanner.
Symbol DS 3478 - Imager only with Direct Part Mark reading. Color: Yellow/Black. Charging/communication base station (Part# STB3478-C0007WW) not included. See accessories. RoHS Compliant.
Discontinued See Replacement
Add to Quote

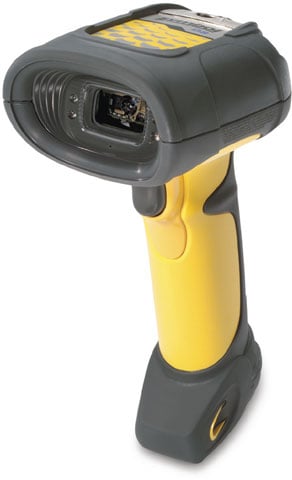

Symbol DS 3478 Barcode Scanner Model Overview
The Symbol DS 3478 rugged, cordless scanners use digital imaging technology to accurately capture direct part marks (DPM), and 1D and 2D barcodes. The DS 3478 series is available in three models. The DS3478-SF is ideal for scanning 1D and 2D barcodes. For high-density 2D matrix codes, choose the DS3478-HD. For DPM, select the DS3478-DP. Two-position "Smart" focus technology, unique to Motorola, provides the flexibility to meet scanning needs in a wide range of applications and environments. Omni-directional scanning, available on all models, lets operators quickly capture symbols from any angle.
Symbol DS3478-DP20005WR Barcode Scanner Overview

The Symbol DS3478-DP of rugged, cordless digital scanner uses digital imaging technology to accurately read a wide variety of one-dimensional (1D) and two-dimensional (2D) bar codes as well as direct part marks (DPM) while offering the high performance typically found only in laser scanners. For direct part marks, select the DS3478-DP.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN with supplementals
  • UPC/EAN
  • UCC/EAN 128
  • JAN-13
  • JAN-8
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • PDF 417
  • Micro PDF
  • MaxiCode
  • DataMatrix (ECC 2000)
  • Composite Codes
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Post
  • Dutch Postal
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 14"@100% UPC/EAN
Scan Pattern:
Omni-directional
Scanning Distance:
328.08 ft
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
  • Yellow
  • Black
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
14.60 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:

Input transient protection:

  • IEC 1000-4-2
  • IEC 1000-4-3
  • IEC 1000-4-4
  • IEC 1000-4-5
  • IEC 1000-4-6
  • IEC 1000-4-11

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Japan VCCI/MITI/Dentori
  • RoHS Compliance
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0702334647073
UPC: 702334647073
EAN: 0702334647073
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol DS3478-DP20005WR Barcode Scanner is also known as SYM-DS3478DP20005WR or DS3478DP20005WR.
