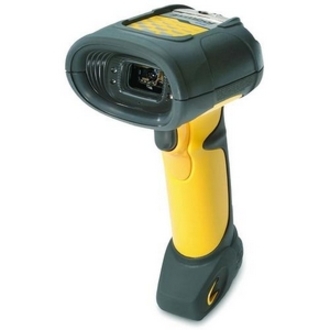

Symbol DS 3408 – Barcode Scanner – 1D

Part Number: DS3408-SFAR200A
Model: DS 3408
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Scanner (Industrial, 9-Foot Coil RS232 DB9 and US Power Supply).

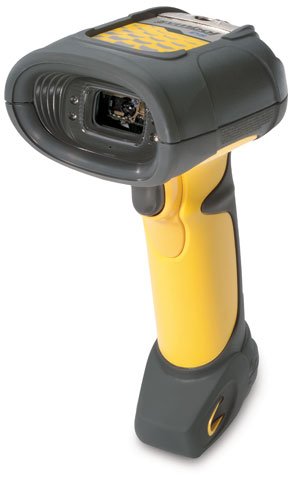

Symbol DS3400 Barcode Scanner Model Overview

The Symbol DS3400 Series of rugged 1D/2D imager scanners brings high performance data capture to harsh industrial environments. Using digital imaging technology, this family of scanners quickly and accurately captures 1D/2D barcodes, images and direct part marks, and is available in various models to meet diverse needs, including: DS3408-SF, for 1D/2D barcode scanning; DS3407-SF, for 1D/2D barcode scanning as well as image capture and transfer; DS3408-HD, for 1D/2D barcode scanning and optimized to capture very small, high density 2D barcodes; DS3407-DP, for 1D/2D barcode scanning, image capture and transfer, direct part marks (DPM). All scanners in this series offer omni-directional scanning and a rugged design sealed to IP65 standards, ensuring reliability in harsh environments.
Symbol DS3408-SFAR200A Barcode Scanner Overview

DS3408 Bar Code Reader not only reads bar codes, it also captures and transfers images, you benefit from a scanning solution designed specifically for fast-paced production environments. It comes equipped with smart focus, charge-coupled device (CCD) image sensors, which allow them to more accurately capture and process bar codes at a faster pace than other digital scanners. As innovative as it is rugged, the DS3408 Bar Code Reader delivers the ergonomic and operational features for scan-intensive industrial applications under the harshest operating conditions.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN
  • RSS Variants
  • RSS
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix (ECC 2000)
  • Composite Codes
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Dutch Postal
  • Japan Postal
  • Australian Postal
Light Source:
Laser
Image Sensor Type:
CCD
Maximum Scan Resolution:
5 mil
Scan Pattern:
Omni-directional
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
  • Twilight Black
  • Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Package Contents:
  • DS3408 Bar Code Reader
  • North American Power Supply (120VAC)
  • 9' DB-9 RS-232 Cable
Additional Information:

Supported Interfaces:

  • Serial
  • USB
  • IBM 468X/469X
  • Keyboard Wedge
  • Wand Emulation
  • Certifications & Standards:

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    Laser Safety:

    • CDRH Class II
    • IEC Class 2

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
