Symbol DS 3408 – Barcode Scanner – 1D

Part Number: DS3408-SF20005R
Model: DS 3408

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Digital, Industrial, Multi-Interface. Color: Yellow. RoHS Compliant. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

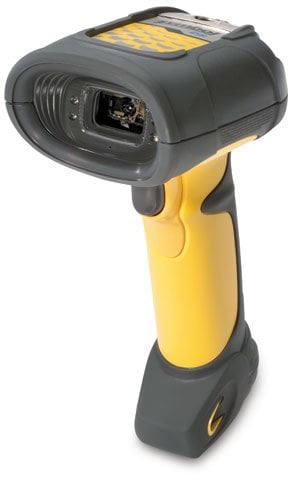

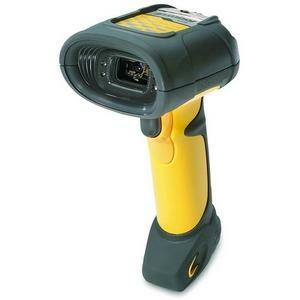

Symbol DS 3408 Barcode Scanner Model Overview

The DS 3408 industrial barcode scanner from Symbol Technologies uses digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. The DS 3408 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omni-directional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 3408 has multi-interface capabilities that allow it to work with a variety of hosts.
Symbol DS3408-SF20005R Barcode Scanner Overview

The DS3408 Industrial Bar Code Reader from Symbol Technologies use digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) bar codes while offering the high performance typically found only in laser scanners. For capturing images and bar codes, the DS3408 is ideal. Its two-position smart focus technology, unique to Symbol, allows you to read bar codes regardless of the size or density of the code. This means that this single device can work well for all your scanning needs.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • JAN-13
  • JAN-8
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • UCC/EAN RSS Variants
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • Composite Code
  • QR Code
  • U.S. Planet
  • U.S. Postnet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
Light Source:
Laser
Image Sensor Type:
CCD
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 14"@100% UPC/EAN
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
  • Black
  • Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Package Contents:
  • DS3408 Bar Code Reader
  • Quick Start Guide
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate

Certifications & Standards:
  • RoHS Compliant
  • Electrical Safety:
  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950Laser Safety:
  • CDRH Class II
  • IEC Class 2EMI/RFI:
  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0049696954266
UPC: 049696954266
EAN: 0049696954266
UNSPSC: 43211701
