Symbol DS 3408 – Barcode Scanner – 1D

Part Number: DS3408-SF20005
Model: DS 3408
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Digital, Industrial, Multi-Interface. Color: Yellow. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

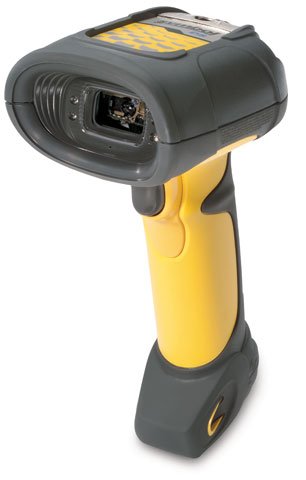

Symbol DS3400 Barcode Scanner Model Overview

The Symbol DS3400 Series of rugged 1D/2D imager scanners brings high performance data capture to harsh industrial environments. Using digital imaging technology, this family of scanners quickly and accurately captures 1D/2D barcodes, images and direct part marks, and is available in various models to meet diverse needs, including: DS3408-SF, for 1D/2D barcode scanning; DS3407-SF, for 1D/2D barcode scanning as well as image capture and transfer; DS3408-HD, for 1D/2D barcode scanning and optimized to capture very small, high density 2D barcodes; DS3407-DP, for 1D/2D barcode scanning, image capture and transfer, direct part marks (DPM). All scanners in this series offer omni-directional scanning and a rugged design sealed to IP65 standards, ensuring reliability in harsh environments.

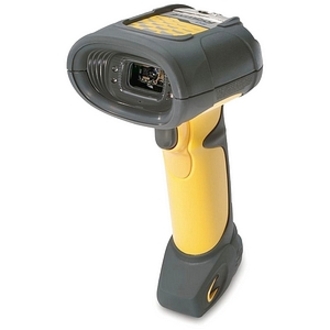

Symbol DS3408-SF20005 Barcode Scanner Overview

The Symbol DS3408 of rugged digital scanners uses digital imaging technology to accurately read a wide variety of one-dimensional (1D) and two-dimensional (2D) bar codes and direct part marks (DPM) while offering the high performance typically found only in laser scanners. For capturing images and bar codes, the DS3408-SF is ideal. The Symbol DS3408 has the widest working range of any scanner in its class. Its two-position smart focus technology, unique to Motorola, allows you to read bar codes regardless of the size or density of the code with the This means that this single device can work well for all your scanning needs.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN
  • RSS
  • RSS Variants
  • PDF 417
  • U.S. Planet
  • Japanese Post
  • Dutch Postal
Light Source:
Laser
Image Sensor Type:
CCD
Scan Rate:
36 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 14"@100% UPC/EAN
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
  • Black
  • Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Package Contents:
  • 3408 Bar Code Reader
  • Imager with Smart Focus
  • Yellow/Twilight Black
  • Quick Start Guide
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0732627080881
UPC: 732627080881
EAN: 0732627080881
UNSPSC: 43211701
