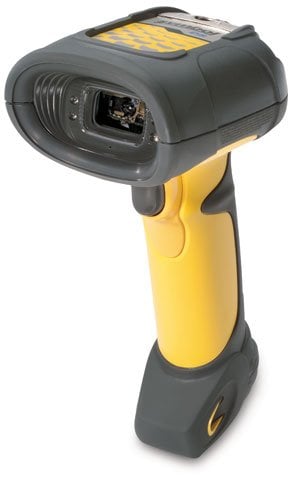

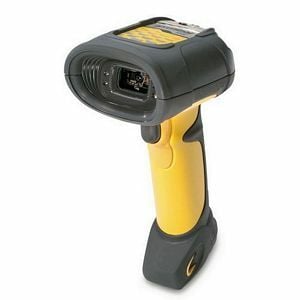

Symbol DS 3408 – Barcode Scanner – 1D

Part Number: DS3408-HD20011
Model: DS 3408

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Multi-interface, HD. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

Symbol DS 3408 Barcode Scanner Model Overview

The DS 3408 industrial barcode scanner from Symbol Technologies uses digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. The DS 3408 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omni-directional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 3408 has multi-interface capabilities that allow it to work with a variety of hosts.
Symbol DS3408-HD20011 Barcode Scanner Overview

The Symbol DS3408-HD rugged digital scanners uses digital imaging technology to accurately read a wide variety of one-dimensional (1D) and two-dimensional (2D) bar codes and direct part marks (DPM) while offering the high performance typically found only in laser scanners. For capturing images and bar codes, to capture high density 2D matrix codes, choose the DS3408-HD.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • Composite Codes
  • QR Code
  • U.S. Planet
  • U.S. Postnet
  • U.K. Postal
  • Japan Postal
  • Australian Post
  • Dutch Postal
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 14"@100% UPC/EAN
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA

Laser Safety:

  • CDRH Class II
  • IEC Class 2
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0702334647059
UPC: 702334647059
EAN: 0702334647059
UNSPSC: 43211701
