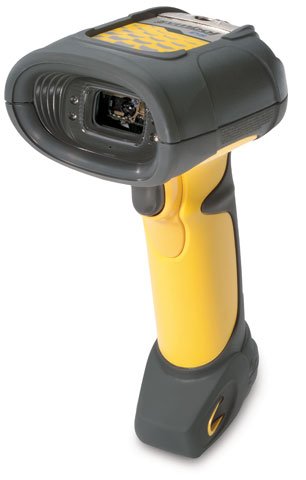

Symbol DS3408-HD20005R Barcode Scanner

Motorola DS3508-HD20005R Barcode Scanner A newer version of this item is available.
It is replaced by the Motorola DS3508-HD20005R Barcode Scanner.
Symbol DS 3408 - High Density Industrial Scanner, Multi-Interface, Imager. Color: Yellow. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Symbol DS 3408 Barcode Scanner Model Overview
The DS 3408 industrial barcode scanner from Symbol Technologies uses digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) barcodes while offering the high performance typically found only in laser scanners. The DS 3408 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omni-directional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 3408 has multi-interface capabilities that allow it to work with a variety of hosts.
Symbol DS3408-HD20005R Barcode Scanner Overview

The Symbol DS3408 High Density Bar Code Reader uses digital imaging technology to enable users to accurately read high-density 2D matrix codes in addition to all industry-standard bar codes, as well as capture images. Omni-directional scanning speeds reading time by eliminating the need to line up the bar code with the scan line. It ensures reliability and performance in rough environments by protecting against damage. The DS3408 multiple interfaces protects your investment by allowing migration to future hosts with only a cable change. Two-position smart focus feature allows users to optimize the scanner for their application by providing them with a choice of two focus positions.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix (ECC 2000)
  • Composite Codes
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation
  • IBM 468X/469X
  • USB
  • Synapse
  • Certifications & Standards:

    Electrical Safety:

    • Certified to UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    Laser Safety:

    • CDRH Class II
    • IEC Class 2

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

    Environmental:

    • RoHS Compliant
    • Dust and Water Seal IP65
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0799665873073
    UPC: 799665873073
    EAN: 0799665873073
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Symbol DS3408-HD20005R Barcode Scanner is also known as SYM-DS3408HD20005R or DS3408HD20005R.
