Symbol DS 3407 – Barcode Scanner – 1D

Part Number: DS3407-SF30005
Model: DS 3407
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D

Product Description:

  High Speed Imager with Aiming Dot , Serial and USB Interface.Color Yellow.
Explore all Symbol DS 3407 Barcode Scanners
Add to Quote

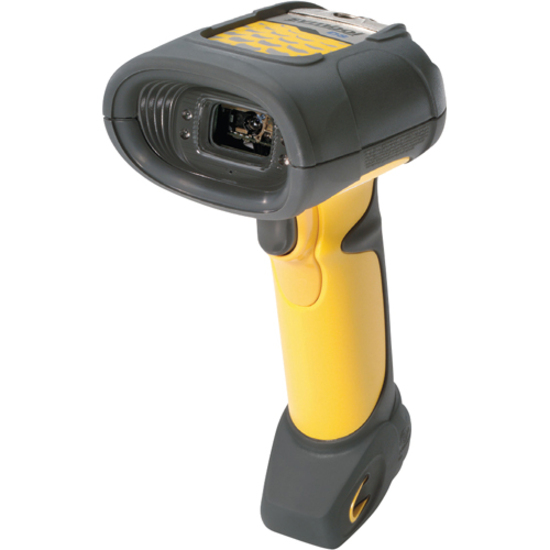

Symbol DS3407-SF30005 Barcode Scanner
Symbol DS3407-SF30005 Barcode Scanner
Symbol DS3407-SF30005 Barcode Scanner Symbol DS3407-SF30005 Barcode Scanner
Full specifications (PDF)

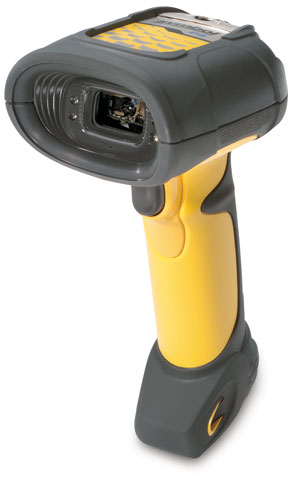

Symbol DS 3407 Barcode Scanner Model Overview

The DS 3407 industrial barcode scanner from Symbol Technologies uses digital imaging technology to accurately capture and transfer images (such as for digital document storage) as well as all types of two-dimensional (2D) and one-dimensional (1D) barcodes. The DS 3407 offers the high performance typically found only in laser scanners. The DS 3407 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omni-directional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 3407 offers USB functionality and a fast transfer rate.
Symbol DS3407-SF30005 Barcode Scanner Overview

In automotive, aerospace, medical and other heavy manufacturing environments, a wide variety of bar codes are typically in use, including 1D and 2D bar codes as well as permanent bar codes, known as direct part marks (DPM). The DS3407-DP provides manufacturers with a single flexible device capable of capturing all 1D and 2D bar codes as well as every type of direct part mark including dot peen.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes:

  • UPC.EAN
  • UPC.EAN with Supplementals
  • GS1-128 (formerly UCC/EAN 128)
  • JAN 8 & 13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 Trioptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • GS1DataBar(formerly RSS)

2D Codes:

  • PDF417
  • MicroPDF417
  • MaxiCode
  • DataMatrix (ECC 2000)
  • Composite Codes
  • QR Code

Postal Codes:

  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
  • 4State Postal
Light Source:
Laser
Image Sensor Type:
CCD
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 1.64" - 7.50"@5mil - Code 39
  • 2.10" - 9.50"@7.5mil - Code 39
  • 38.10"@20mil - Code 39
  • 2.70" - 11"@13mil - 100% UPC
  • 2.50" - 7.60"@6.67mil - PDF417
  • 9.50"@10mil - PDF417
  • 10.7"@15mil - PDF417
  • 0.88" - 1.92"@4mil - Data Matrix
  • 0.63" - 2"@5mil - Data Matrix
  • 0.58" - 2.38"@7.5mil - Data Matrix
  • 0.50" - 2.42"@10mil - Data Matrix
  • 0.83" - 1.63"@4mil - QR Code
  • 0.83" - 1.96"@5mil - QR Code
  • 0.67" - 2.34"@7.5mil - QR Code
  • 0.33" - 2.54"@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Color:
Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0702334648698
UPC: 702334648698
EAN: 0702334648698
UNSPSC: 43211701
