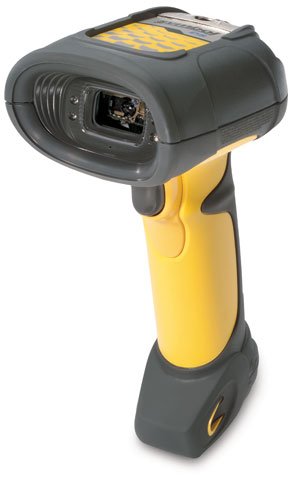

Motorola DS3407-SF20005 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Symbol DS 3407 - High Speed Imager with RS-232 Serial/USB multiple interface. Color: Yellow. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Ruggedized DS 3407 Series Scanners with Image Capture

The DS 3407 industrial barcode scanner from Symbol Technologies uses digital imaging technology to accurately capture and transfer images (such as for digital document storage) as well as all types of two-dimensional (2D) and one-dimensional (1D) barcodes. The DS 3407 offers the high performance typically found only in laser scanners. The DS 3407 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omnidirectional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 3407 offers USB functionality and a fast transfer rate.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN
    • RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • Composite Codes
    • QR Code
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
    • U.S. Postnet
  • Scanner Type: Laser
  • Interface Options:
    • RS-232
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5 V DC
  • Depth of Field: 1 - 14" - 100% UPC/EAN

General Information

  • Manufacturer: Symbol
  • Product Name: DS3407 Barcode Scanner

Physical Characteristics

  • Dimensions: 7.34" (186.44mm) x 4.82" (122.43mm) x 2.93" (74.42mm)
  • Weight: 12.56 oz - Without Cable
  • Color:
    • Black
    • Yellow

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Other

  • Cables Included:
    • USB
    • RS-232

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Symbol DS 3407 Scanner
Motorola Cable (CBA-U01-S07ZAR)
USB Cable, 7 ft. (2m) Straight, Series A Connector.
In Stock: Ships Same Day


5.0

(1 reviews)

$25.40
+ Add to Quote
Symbol Cable (CBA-R02-C09PAR)
Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R).
In Stock: Ships Same Day
$28.20
+ Add to Quote
Motorola Cable (CBA-R01-S07PAR)
RS-232 Cable (7 ft. Straight, Standard DB-9F TxD-2). Requires Power supply (Part# PWRS-14000-253R).
In Stock: Ships Same Day
$24.20
+ Add to Quote
Protect Your Product
Symbol Service Contract - 1 year (SCB-DS3407-10)
Protect your DS3407 and reduce down-time with 1 year of coverage. Symbol will repair your unit in 3 days, guaranteed.
Ships in 3-5 Days
$45.90
+ Add to Quote

The Symbol DS3407-SF20005 is also known as Symbol Technologies SYM-DS3407SF20005 or DS3407SF20005 .
