Symbol DS3407-DP20005R Barcode Scanner

Motorola DS3508-DP20005R Barcode Scanner A newer version of this item is available.
It is replaced by the Motorola DS3508-DP20005R Barcode Scanner.
Symbol DS 3407 - High Speed Imager with Direct Part Marking (DPM), RS-232 Serial/USB multi-interface. Color: Yellow. RoHS compliant. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Discontinued See Replacement
Add to Quote

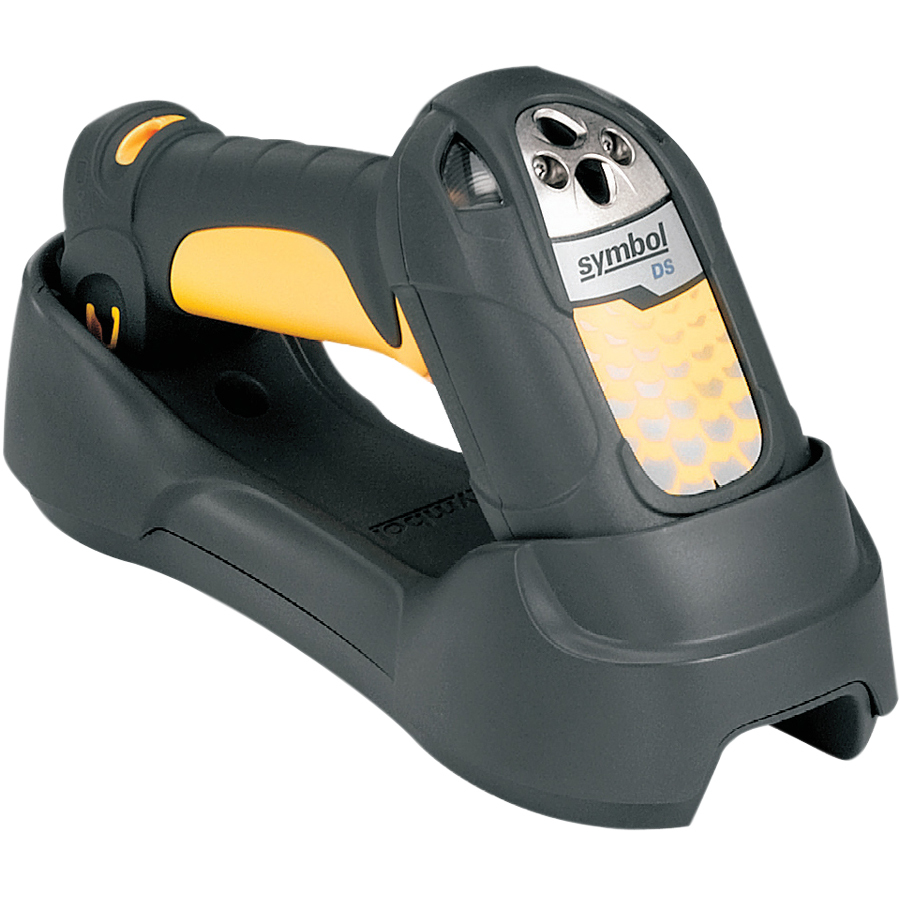

Symbol DS 3407 Barcode Scanner Model Overview
The DS 3407 industrial barcode scanner from Symbol Technologies uses digital imaging technology to accurately capture and transfer images (such as for digital document storage) as well as all types of two-dimensional (2D) and one-dimensional (1D) barcodes. The DS 3407 offers the high performance typically found only in laser scanners. The DS 3407 comes equipped with a charge-coupled device (CCD) image sensor, which allows more accurate capture and processing of barcodes at a faster pace than other digital scanners. In addition, the scanner's omni-directional scanning functionality lets operators quickly capture barcodes from any angle, eliminating the need to line up barcodes with laser lines. The DS 3407 offers USB functionality and a fast transfer rate.
Symbol DS3407-DP20005R Barcode Scanner Overview

The DS3407 Industrial Bar Code Reader from Symbol Technologies use digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) bar codes while offering the high performance typically found only in laser scanners. If image capture and transfer capability is what you need, the DS3407 is perfect for today's applications, such as digital document storage and processing, as well as for image capture applications of the future.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN
  • RSS
  • RSS Variants
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • Composite Codes
  • QR Code
  • U.S. Planet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
  • U.S. Postnet
Light Source:
LED
Image Sensor Type:
CCD
Maximum Scan Resolution:
5 mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Serial
  • USB
Physical Characteristics
Form Factor:
Handheld
Color:
Yellow
Height:
7.3"
Width:
4.8"
Depth:
2.9"
Weight (Approximate):
12.56 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol DS3407-DP20005R Barcode Scanner is also known as SYM-DS3407DP20005R or DS3407DP20005R.
