Symbol CS1504-I100-0002 Barcode Scanner

Symbol CS1504-I100-0002R Barcode Scanner A newer version of this item is available.
It is replaced by the Symbol CS1504-I100-0002R Barcode Scanner.
Symbol CS1504 - Consumer Memory Keychain Scanner (Class II, Hardware Revision, Standard, No Direct Cable Option and 2-cable USB solution 25-44301-01 and 50-16000-386)

Need a different version? See all Symbol CS1504 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare

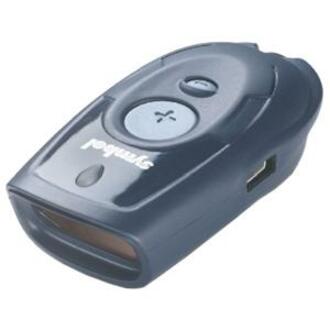

Symbol CS1504-I100-0002 Barcode Scanner
Symbol CS1504-I100-0002 Barcode Scanner Symbol CS1504-I100-0002 Barcode Scanner Symbol CS1504-I100-0002 Barcode Scanner
Symbol CS1504-I100-0002 Barcode Scanner
Symbol CS1504-I100-0002 Barcode Scanner
Symbol CS1504-I100-0002 Barcode Scanner
Full specifications (PDF)
Symbol CS1504 Barcode Scanner Model Overview
Symbol's CS1504 "shopping buddy" is a portable scanner that allows customers to buy your products while they're on the go. The CS1504 fits in a pocket or purse, or can be attached to a keychain. It lets shoppers scan for further information on price, availability, features, rebates, special offers or similar products. Outside the store, customers can use the device to scan embedded information in your advertisements and catalogs, create shopping lists, purchase items or link to the Web for more information.
Symbol CS1504-I100-0002 Barcode Scanner Overview

While Web access has given customers the freedom to shop anytime, the CS 1504 Consumer Memory Scanner from Symbol Technologies gives them true mobility to shop anywhere. Another breakthrough in consumer bar code scanning technology from Symbol, the CS 1504 Consumer Memory Scanner enables customers to capture bar codes on retail merchandise in order to create a shopping list, purchase an item or simply link to the Web for further content about the item of interest.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • Code 128
  • Code 39
  • Coupon Code
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • ISBN
  • Webcodes
Interfaces/Ports
Host Interface:
USB
Battery Information
Number of Batteries Supported:
4
Battery Chemistry:
Silver Oxide
Physical Characteristics
Form Factor:
Handheld
Height:
0.8"
Width:
1.5"
Depth:
2.5"
Weight (Approximate):
1.20 oz
Miscellaneous
Additional Information:
  • Storage Temperature: -20° to 60°C (without batteries)
  • Real Time Clock: A date/time stamp is recorded with each bar code scanned

Interfaces Supported Through Multi-Interface:

  • RS-232 (Serial) Standard Serial Cable
  • USB Standard USB Smart Cable

Memory Capacity:

  • 150 bar codes (Default)
  • 300 UPC only codes
  • 400, 13 character codes (time/stamp turned off)

Special Features:

  • Scan and Delete Buttons: Can be used to add or delete data
  • Data Protection Mode: Scan buttons can be locked to prevent accidental deletion/addition of data (default is disabled)
  • Disable Delete Function: Smaller delete button can be disabled via host command

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

Laser Safety:

  • IEC Class 1
  • CDRH Class II

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
Warranty
Limited Warranty:
3 Month
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol CS1504-I100-0002 Barcode Scanner is also known as SYM-CS1504USB2 or CS1504I1000002.
