Symbol CCRF-5020-10-WW Access Point

Symbol WSAP-5110-050-WWR Access Point A newer version of this item is available.
It is replaced by the Symbol WSAP-5110-050-WWR Access Point.

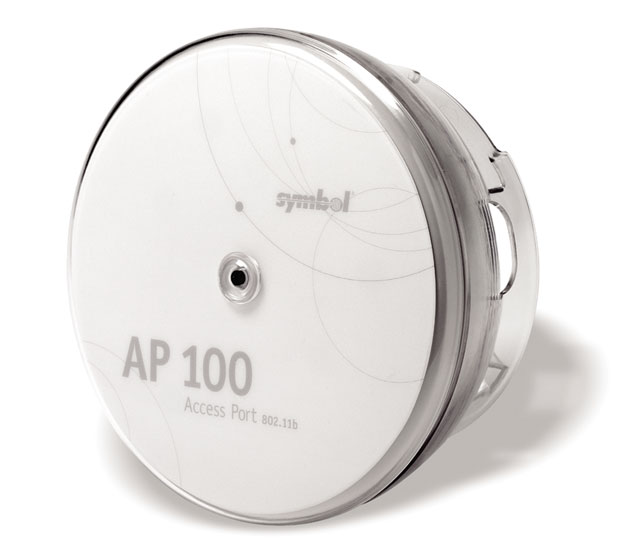

Symbol AP 100 - Access Port (11Mbps IEEE 802.11b Version. WLAN endpoint for the Mobius Axon Wireless Switch. Includes WLAN Radio and Integrated High-Performance Antenna. Includes H/W for Desk, Wall and Ceiling-Mount Configurations).
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • With IEEE 802.11b network technology and data transfer rate of up to 11 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More

Need a different version? See all Symbol AP 100 Access Points

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Symbol CCRF-5020-10-WW Access Point
Symbol CCRF-5020-10-WW Access Point
Symbol CCRF-5020-10-WW Access Point
Full specifications (PDF)
Symbol AP 100 Access Point Model Overview
The AP 100 is a key component of Symbol's award winning Wireless Switch System, the second-generation wireless LAN architecture that does more and costs less. When combined with a Symbol Wireless Switch, the AP 100 delivers feature rich IEEE 802.11a, 802.11b, and 802.11a/b wireless LAN connectivity (802.11a/b/g available soon). The Symbol AP 100 substantially reduces the cost of deploying, implementing and managing a wireless LAN, while significantly increasing features, functionality and security of the wireless LAN infrastructure.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11b
ISM Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
Antenna Gain:
3.5 dBi
Antenna Type:
Omnidirectional Antenna
Wireless Transmission Speed:
11 Mbit/s
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
Yes
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
  • Desktop
Height:
3.1"
Diameter:
6"
Weight (Approximate):
13 oz
Item Numbers
UNSPSC: 43222631
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Symbol CCRF-5020-10-WW Access Point is also known as SYM-CCRF502010WW or CCRF502010WW.
