Motorola CB-3000-0010-WWR Access Point


(No reviews)

Be the first to

Write a Review

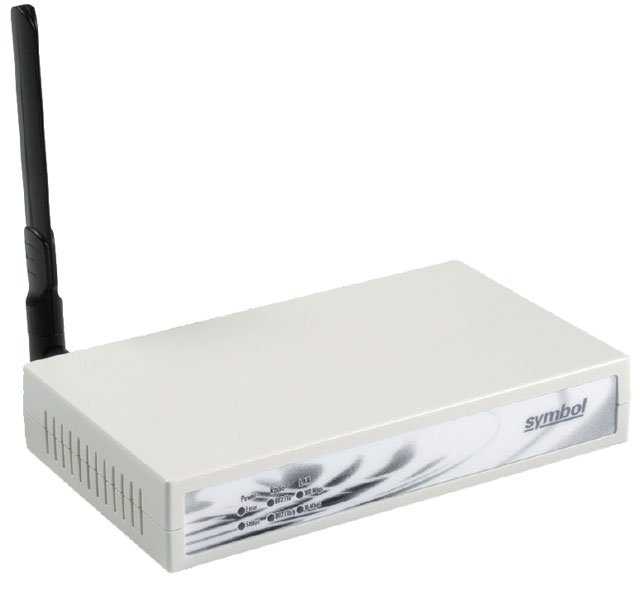

Symbol CB3000 - Ethernet Client Bridge (802.11a/b/g, Power supply, Ethernet Cable, and Worldwide Power Adapter)
Extend Affordable and Secure 802.11a/b/g Wireless Connectivity to Multiple Ethernet-Capable Devices

The Symbol CB3000 Client Bridge provides affordable and reliable wireless connectivity for Ethernet devices that do not have a PC or PCI card slot. Connect everything from printers, scales and medical equipment to manufacturing machinery, barcode readers, time clocks, cash registers and other data collection devices via an RJ45 (Ethernet) port. The CB3000 can support up to 16 wireless clients using one Ethernet hub. Plus, the CB3000's advanced security capabilities protect your traffic from being deciphered and your network from unauthorized access.The CB3000 uses 802.11a/b/g frequencies to connect to your physical network and allow excellect communication to all types of devices.

Technical Information

  • Wireless Technology: IEEE 802.11a/b/g
  • Frequency Band/Bandwidth:
    • 5GHz
    • 2.4GHz
  • Frequency Band/Bandwidth Details:
    • 5.15 to 5.825GHz IEEE 802.11a
    • 2.4 to 2.48GHz IEEE 802.11b/g
  • Antenna: Omnidirectional Antenna
  • Transmission Speed:
    • 54Mbps Auto-fallback IEEE 802.11a/g
    • 6Mbps IEEE 802.11a/g
    • 11Mbps Auto-fallback IEEE 802.11b
    • 1Mbps IEEE 802.11b
  • Transmit Power:
    • 13dBm to 21.5dBm IEEE 802.11a
    • 15dBm to 21.5dBm IEEE 802.11b/g
  • Receiver Sensitivity:
    • 72 dBm @ 54Mbps IEEE 802.11a
    • 90 dBm @ 6Mbps IEEE 802.11a
    • 85 dBm @ 11Mbps IEEE 802.11b
    • 97 dBm @ 1Mbps IEEE 802.11b
  • Wireless Security: WPA2/802.11i WEP 40/128 bits 802.1x Supplicant PEAP EAP/TLS EAP/TTLS
  • Modulation: DSSS (Direct Sequence Spread Spectrum) OFDM (Orthogonal Frequency Division Multiplexing)
  • Client Support: 16

General Information

  • Manufacturer: Motorola
  • Product Name: CB3000 Wireless Bridge

Physical Characteristics

  • Dimensions: 7" (178mm) x 4" (102mm) x x 1.2" (30mm)

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance IEEE 802.1x IEEE 802.11a IEEE 802.11b IEEE 802.11g
    • IEEE 802.3
    • IEEE 802.1d
    • IEEE 802.11i
    • IEEE 802.11h (DFS/TCP)
    • HTTPS

Environmental Conditions

  • Temperature: 0°C (32°F) to 50°C (122°F) Operating
  • Humidity: 10 to 90% Non-condensing


  • Package Contents: CB3000 Wireless Bridge
  • Additional Information: RJ-45 10/100Base-T

Full specifications (PDF)


Customer Review Summary

Recommended Accessories for Model: Symbol CB3000 Access Point

The Symbol CB-3000-0010-WWR is also known as Symbol Technologies SYM-CB30000010WWR or CB30000010WWR .
