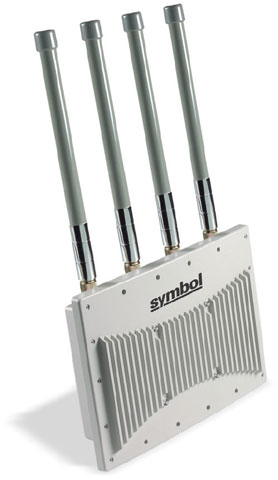

Symbol AP-5181-13040-WWR Wireless Access Points

Name: Symbol AP-5181-13040-WWR Wireless Access Points
Brand: Symbol
SKU: 27332

Part Number: AP-5181-13040-WWR

Model: AP 5181

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Wireless LAN Standard

IEEE 802.11a/b/g

ISM Band

Yes

UNII Band

Yes

ISM Minimum Frequency

2.40 GHz

Product Description:

Outdoor Mesh Wireless Access Point with dual radio: outdoor 802.11a/g. (Requires power and antennas)

Explore all Symbol AP 5181 Wireless Access Points

Add to Quote

Symbol AP-5181-13040-WWR Wireless Access Points

Overview

Full specifications (PDF)

Symbol AP 5181 Wireless Access Points Model Overview

Symbol's AP 5181, an access point designed specifically for outdoor use, delivers enterprise-class wireless networking in harsh environments. In addition to its NEMA 4X IP56 weatherproof housing, other weather-resistant features include integrated lightning arrestors, surge protectors, extreme temperature range operation and an array of antenna and power accessories. The self-assembling, self-healing mesh capability supports Wi-Fi multimedia (WMM) extensions to ensure quality of service (QoS) while cost-effectively extending corporate networks beyond and between buildings with no need to install additional Ethernet cable or fiber. With integrated router, firewall, DHCP, AAA and hotspot services, the AP 5181 represents a superior outdoor WLAN solution.

Symbol AP-5181-13040-WWR Wireless Access Points Overview

The is AP-5181 Wireless Access Point specifically designed for outdoor use, delivers enterprise-class wireless networking in harsh environments. In addition to a NEMA 4X-modified housing, severe-weather features include integrated lightning arrestors, surge protectors, extreme temperature range operation and an array of antenna and power accessories. The self-assembling, self-healing mesh capability supports Wi-Fi multimedia (WMM) extensions to ensure quality of service (QoS) while cost-effectively extending corporate networks beyond and between buildings with no need to install additional Ethernet cable or fiber. With integrated router, firewall, DHCP, AAA and hot-spot services, the AP-5181 offers a superior outdoor WLAN solution.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11a/b/g

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.40 GHz

ISM Maximum Frequency:

2.47 GHz

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5.73 GHz

Wireless Transmission Speed:

54 Mbit/s

Wireless Security:

IEEE 802.11i
WPA2

Interfaces/Ports

Ethernet Technology:

Fast Ethernet

Management & Protocols

Management:

Wi-Fi Multimedia (WMM) quality of service (QoS) and voice prioritization
DHCP server

Physical Characteristics

Form Factor:

Pole-mountable
Wall Mountable

Height:

3.6"

Depth:

12"

Weight (Approximate):

5.50 lb

Item Numbers

UNSPSC: 43222631

Reviews

Accessories

Recommended Accessories

Recommended Accessories for Model: Symbol AP-5181-13040-WWR Wireless Access Points

Top Access Point Accessories Purchased With Symbol AP-5181-13040-WWR

Motorola AP-PSBIAS-2P2-AFR Accessory
Poe Injector (Single Port, 802.3af). Require AC line cord (Part# 23844-00-00R)

Please Call for Pricing or to Purchase
Symbol KT-5181-WP-01R Accessory
Kit (Wall/Pole Mounting Hardware) for the AP5181

Please Call for Pricing or to Purchase
Symbol APPSBIAS518101R Accessory
Power Supply (48VDC, 100-280VAC)

Please Call for Pricing or to Purchase
