StarTech ST1000PEXPSE Data Networking

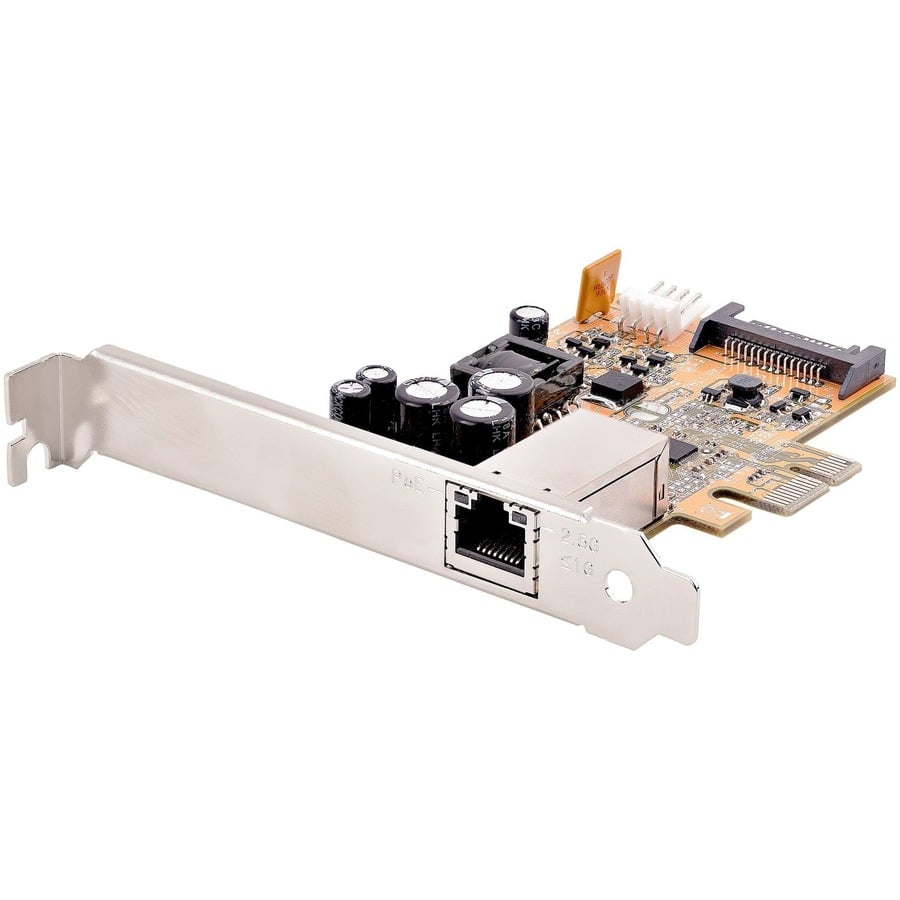

StarTech - StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card, 30W 802.3at PoE NIC for PC/Servers, RJ45/Network PoE LAN Adapter, NBaseT, PCI Express x1 PoE Network Card supports 2.5Gbps and supplies 30W PSE/25.5W PD at 48V DC; Use existing copper cables without a PoE injector; PCIe NIC supports 802.3af/at (PoE+) and NBASE-T; SATA/SP4 power connectors; Windows/Linux; LP Bracket incl.
  • "2.5G NETWORK CARD WITH POE: This PCI Express x1 Network Card enables 2.5Gbps network speeds and supplies (PSE) 30W PoE over a single CAT5e (or later) cable - Leverage existing copper cabling without the use of a Power over Ethernet (PoE) injector
  • POE+ COMPLIANT: Card provides up to 30W PSE and 25.5W PD at 48V DC to a connected device - Supports IEEE 802.3af (PoE) and 802.3at (PoE+) to power remote devices such as access points, RFID readers, and IP cameras
  • MULTI-GIGABIT CONNECTIVITY: The Network PoE Card features 2.5GBASE-T (802.3bz) and will auto negotiate to the connected device's highest possible speed - The PCIe Network Card supports Wake-on-LAN and RealWoW for remote wake up of the host computer
  • TECH SPECS: 2.5Gbps/1Gbps/100Mbps/10Mbps - NBASE-T - 1x RJ45 Port - Realtek RTL8125B - IEEE 802.3af/at - 802.3az EEE - PCIe 2.1 x1 - SATA & SP4 Power Connectors - Link/PoE LED Indicators - 16K Jumbo Frame - VLAN - PXE Boot - Full and Low-Profile Brackets
  • VERSATILE POE NETWORK CARD: The PCIe Ethernet Adapter supports Windows and Linux - Variable speed options and includes a low-profile bracket for Small Form Factor (SFF) systems ensures compatibility of the PoE NIC with current and legacy devices"
Read More
$139.11
In Stock
Add to Quote
Technical Information
Chipset Manufacturer:
Realtek
Chipset Model:
RTL8125B
Interfaces/Ports
Host Interface:
PCI Express 2.1 x1
Total Number of Ports:
1
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Twisted Pair
Data Transfer Rate:
312.50 MB/s
Network & Communication
Network Technology:
2.5GBase-T
Physical Characteristics
Form Factor:
Plug-in Card
Bracket Height:
Low Profile
Height:
0.6"
Width:
2.5"
Weight (Approximate):
7.80 oz
Miscellaneous
Package Contents:
  • 2.5Gigabit Ethernet Adapter
  • 1 x Low-profile Bracket
  • 1 x Quick-start Guide
Device Supported:
Computer/Server
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030893107
UPC: 065030893107
EAN: 0065030893107
UNSPSC: 43201404
