StarTech S322M225R Accessory

Part Number: S322M225R
Model: Parts
$46.54
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Color Family
Red
Product Color
Red
Product Material
Steel
Height
0.3"

Product Description:

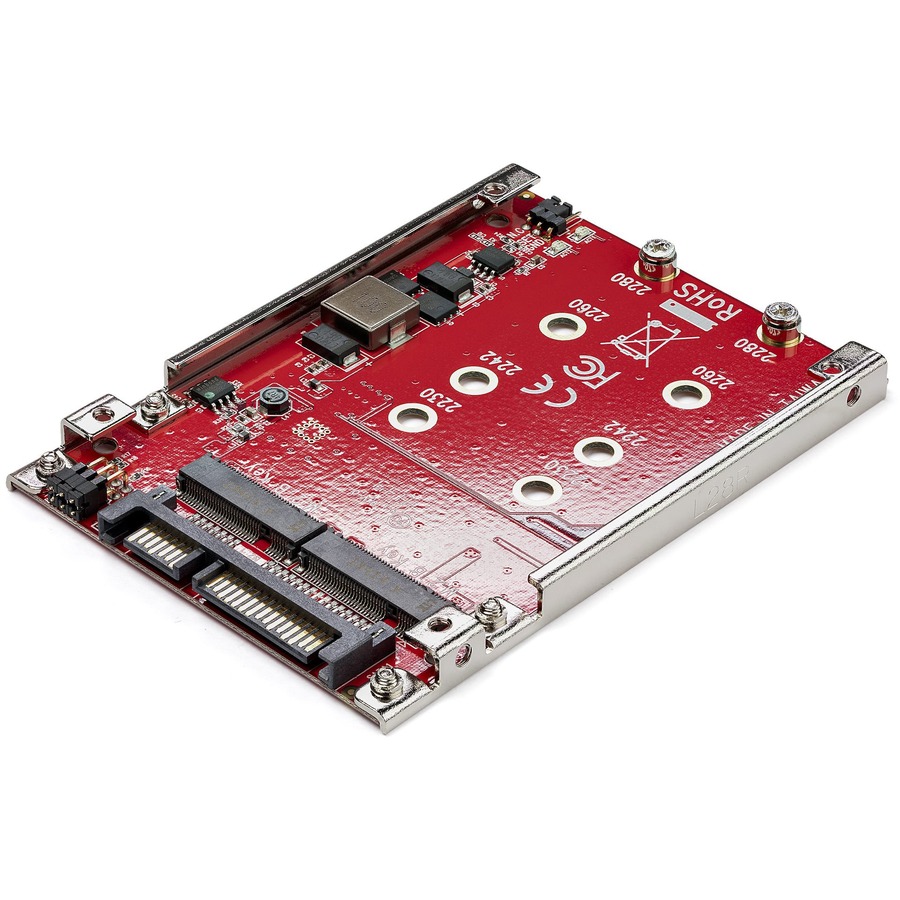

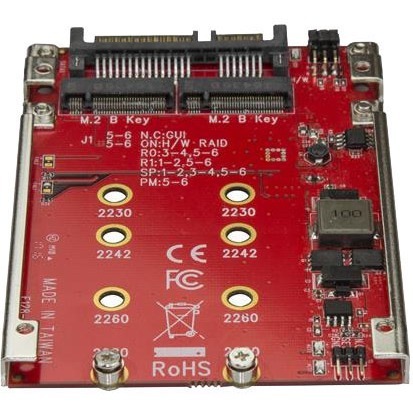

  Computer Components, StarTech, Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay, RAID
Physical Characteristics
Color Family:
Red
Product Color:
Red
Product Material:
Steel
Height:
0.3"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
1.45 oz
Miscellaneous
Package Contents:
  • Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID
  • 2 x Sets of Drive-mounting Hardware
  • 4 x Adapter-mounting Screws
  • 1 x Quick-start Guide
Additional Information:
  • Drive Connectors: 2 - M.2 (SATA, B-Key, NGFF)
  • Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
  • Operating Temperature: +5°C to +50°C (+41°F to +122°F)
  • Storage Temperature: -25°C to +70°C (-13°F to +158°F)
  • Humidity: 15% to 90%
  • Interface: SATA
  • Number of Drives: 2
  • Compatible Drive Types: M.2 (SATA, NGFF)
  • Drive Installation: Fixed
  • Supported Drive Height(s): 2230; 2242; 2260;2280
  • Chipset ID: ASMedia - ASM1092R
  • Maximum Data Transfer Rate: 6 Gbps
  • TRIM Support: Yes
  • S.M.A.R.T. Support: Yes
  • Type and Rate: SATA III (6 Gbps)
  • Port Multiplier: Yes
  • Hardware Raid Supported: Yes
  • Supported RAID Modes: RAID 0 (Striped Disks); RAID 1 (Mirrored Disks); JBOD - (Just a Bunch of Disks); BIG (Spanning or Concatenation)
Country of Origin:
Taiwan
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030875141, 0696453293085, 0818240688021
UPC: 065030875141, 696453293085, 818240688021
EAN: 0065030875141, 0696453293085, 0818240688021
UNSPSC: 43211600
