Protection Type:
- Surge Protection
- ESD Protection

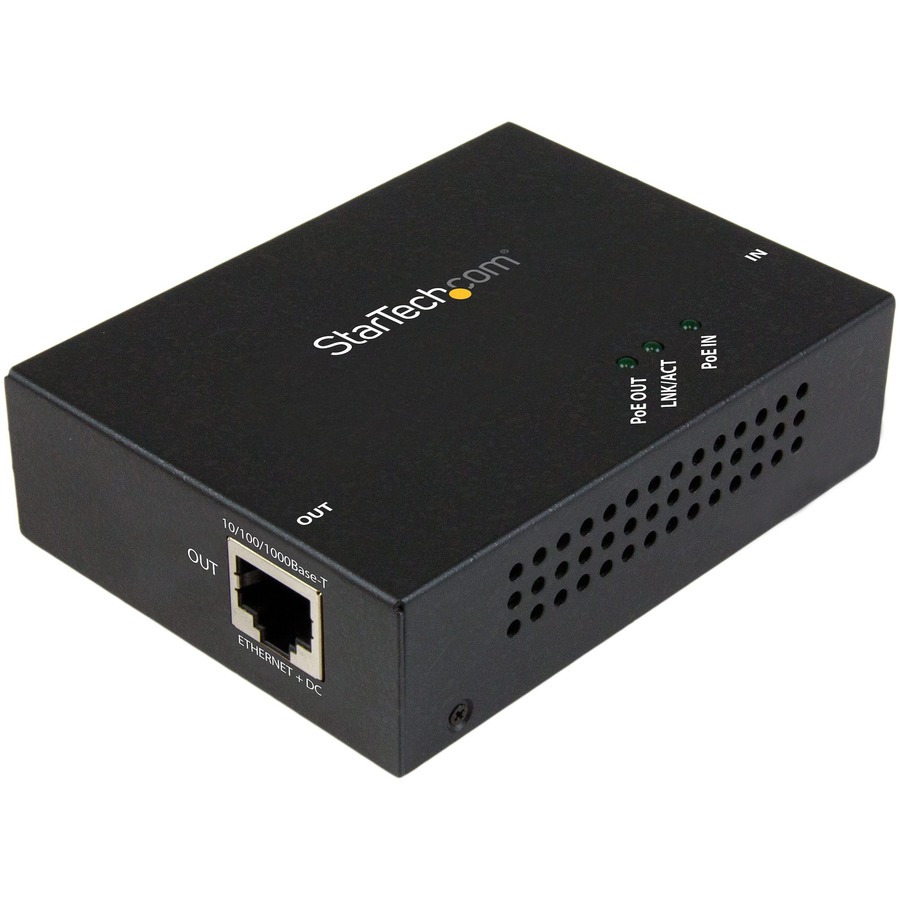

StarTech POEEXT1GAT PoE Injectors
Part Number:
POEEXT1GAT
Model:
Parts
Technical Information
Power Description
Minimum Output Voltage:
52 V DC
Maximum Output Voltage:
56 V DC
Maximum Output Power:
24 W
Interfaces/Ports
Input Ports:
1 x Gigabit Ethernet
Output Ports:
1 x Gigabit PoE+
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Wall Mountable
Height:
1"
Width:
2.7"
Length:
3.7"
Weight (Approximate):
6.81 oz
Miscellaneous
Package Contents:
- 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
- 1 x Instruction Manual
Additional Information:
- Color: Black
- Enclosure Type: Steel
- Input Voltage: 52 ~ 56 DC
- Power Consumption: 3.2 W Max
- Connector Type(s): 2 - RJ-45 Female
- MTBF: 50,000 Hours
- Compatible Networks: 10/100/1000 Mbps
- Flow Control: Half-duplex back-pressure, IEEE 802.3x pause frame for full-duplex
- Maximum Cable Length: 328 ft [100 m]
Compatibility:
Compatible Products:
- Wi-Fi Access Points
- IP Phones
- Surveillance Cameras
- Kiosks
Certifications & Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0065030860895
UPC:
065030860895
EAN:
0065030860895
UNSPSC:
39121000
Get help from a Barcoding Expert!
The StarTech POEEXT1GAT PoE Injectors is also known as
POEEXT1GAT
