StarTech PEX2S5531P Accessory

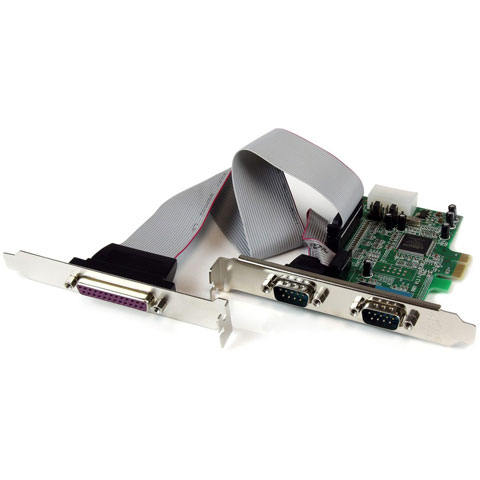

StarTech - Computer Components, StarTech, 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
  • Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps
  • One parallel port with data transfer rate up to 1.5 Mbps
  • Compliant with PCI Express base specifications revision 1.0a
  • 128-byte deep FIFO per transmitter and receiver
  • Configurable in 5V, 12V, and RI (non-powered) modes
  • Selectable power output on pin 9 for the serial port
  • Native single-chip, single lane PCI Express
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Automated in-band flow control using programmable Xon/Xoff in both directions
Read More

Need a different version? See all StarTech Parts Accessories

$53.35
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
StarTech PEX2S5531P Accessory
StarTech PEX2S5531P Accessory
StarTech PEX2S5531P Accessory StarTech PEX2S5531P Accessory
Technical Information
Host Interface:
PCI Express x1
Data Transfer Rate:
  • 1.5MB/s Parallel Port
  • 460.8kB/s Serial Port
UART Type:
16550
Platform Supported:
  • PC
  • Mac
  • Linux
Interfaces/Ports
Number of Parallel Ports (External):
1
Number of Serial Ports (External):
2
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Dual-profile
Height:
0.8"
Width:
4.7"
Length:
4.1"
Weight (Approximate):
4 oz
Miscellaneous
Package Contents:
  • 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
  • Parallel Port (with Ribbon Cable)
  • Low Profile Brackets
  • Driver CD
  • Instruction Manual
Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 - 10.6
  • Linux
    • Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • REACH
    • WEEE
    Country of Origin:
    Taiwan
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    GTIN: 0065030841764
    UPC: 065030841764
    EAN: 0065030841764
    UNSPSC: 43201552
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The StarTech PEX2S5531P Accessory is also known as PEX2S5531P
