StarTech PEX2S1050 Computer Docking Station

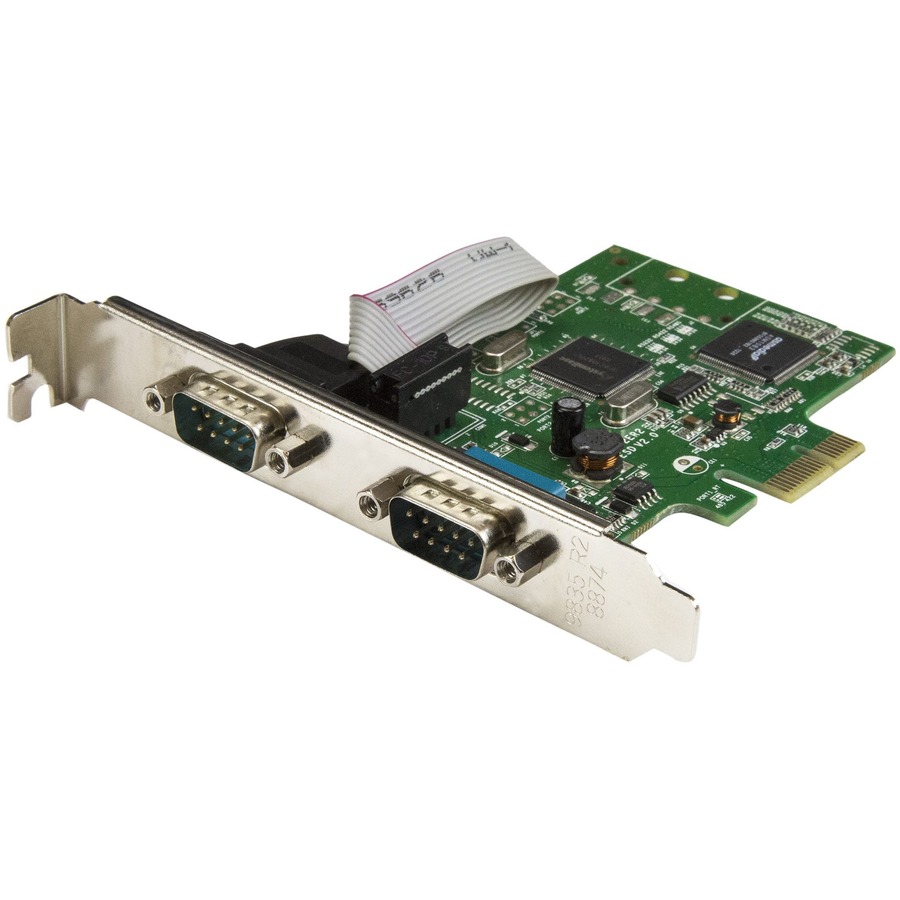

StarTech - Computer Docking Stations, StarTech, 2-Port PCI Express Serial Card with 16C1050 UART, RS232
  • Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
  • Maximum data transfer rate of 460Kbps
  • Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • 256-Byte deep FIFO per transmitter and receiver
  • In-band software flow control using programmable Xon/Xoff in both directions
  • Out-of-band hardware flow control using RTS / CTS
  • Support for 5,6,7 or 8 data bits
  • Standard profile bracket installed, optional dual low-profile brackets included
Read More

Need a different version? See all StarTech Parts Accessories

$71.02
In Stock
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Add to My Shopping List Add to Compare
StarTech PEX2S1050 Computer Docking Station
StarTech PEX2S1050 Computer Docking Station StarTech PEX2S1050 Computer Docking Station
StarTech PEX2S1050 Computer Docking Station
StarTech PEX2S1050 Computer Docking Station
Technical Information
Host Interface:
PCI Express x1
Platform Supported:
  • PC
  • Linux
Interfaces/Ports
Number of Serial Ports (External):
2
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Low-profile
Height:
0.8"
Width:
4.7"
Length:
4.1"
Weight (Approximate):
2.20 oz
Miscellaneous
Package Contents:
  • 2-Port PCI Express Serial Card with 16C1050 UART - RS232
  • 2 x Low-Profile Brackets
  • 1 X Driver CD
  • 1 X Quick-Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
  • REACH
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030868297, 0818240364086, 4973163102378, 4973163108998, 5057454547662
UPC: 065030868297, 818240364086
EAN: 0065030868297, 0818240364086, 4973163102378, 4973163108998, 5057454547662
UNSPSC: 43201559
