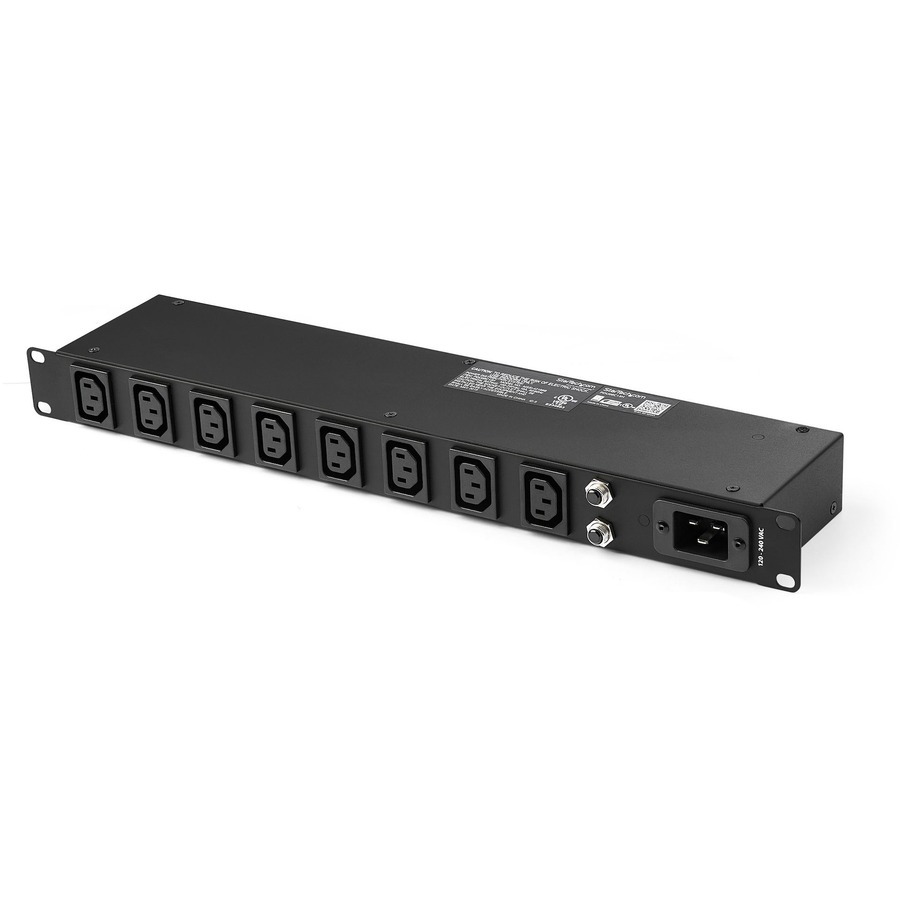

StarTech PDU08C13H Power Device

StarTech - Power, StarTech, 1U 19 inch 8 Port Rack Mount PDU, IEC C13 Socket Rackmount Power Supply/Strip, Horizontal Server Rack Mountable Surge Protector /Data Center Power Distribution Unit 16A 240V
  • 8 POWERFUL NEMA C13 OUTLETS: Rack mount PDU provides up to 16A/120V (1920VA) or 20A/240V (4800 VA) for servers & equipment; 1U rack space for easy accessibility; 10ft/3m C19 to NEMA5-20p cord incl.
  • 3600 JOULE CIRCUT PROTECTION: Built-in resettable circuit breaker that acts as a surge protector or shields from unintentional overloads in data center; Safety listed for performance and peace of mind
  • CONFIGURABLE EIA-310D COMPLIANT DESIGN: Installable in standard 19in. 2 or 4 post rack using incl. cage nuts/screws; C20 power cord allows any local plug config for 120 or 240 V single phase in/out
  • SPECS: 1U 19in. Horizontal PDU
  • 8x IEC C13 Pwr out
  • C20 Pwr input (1 phase)
Read More

Need a different version? See all StarTech Parts Accessories

$110.72
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
StarTech PDU08C13H Power Device
StarTech PDU08C13H Power Device
StarTech PDU08C13H Power Device StarTech PDU08C13H Power Device
Technical Information
Phase:
Single Phase
Plug/Connector Type:
IEC 60320 C20
Plug/Connector Detail:
1 x IEC 60320 C20
Receptacle Type:
IEC 60320 C13
Receptacle Detail:
8 x IEC 60320 C13
Protection Type:
  • Circuit Protection
  • Surge Protection
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Input Voltage Range:
110 V AC - 240 V AC
Output Voltage:
240 V AC
Output Voltage Range:
110 V AC - 240 V AC
Power Rating (VA):
1920 VA
Input Current:
20 A
Physical Characteristics
Mounting Orientation:
Horizontal
Mount Type:
Rack-mountable
Rack Height:
1U
Height:
1.7"
Width:
18.9"
Length:
3.9"
Weight (Approximate):
4.90 lb
Miscellaneous
Package Contents:
  • 8-Outlet PDU
  • 1 x 10 ft [3 m] C19 to NEMA5x20p Power Cord
  • 4 x M5 Screws
  • 4 x M5 Cage Muts
  • 1 x Instruction Manual
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Country of Origin:
China
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030865739, 0803931143750, 0818214860279, 0818242708048, 0818243062149, 7111195356803
UPC: 065030865739, 803931143750, 818214860279, 818242708048, 818243062149
EAN: 0065030865739, 0803931143750, 0818214860279, 0818242708048, 0818243062149, 7111195356803
UNSPSC: 39121017
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The StarTech PDU08C13H Power Device is also known as PDU08C13H
