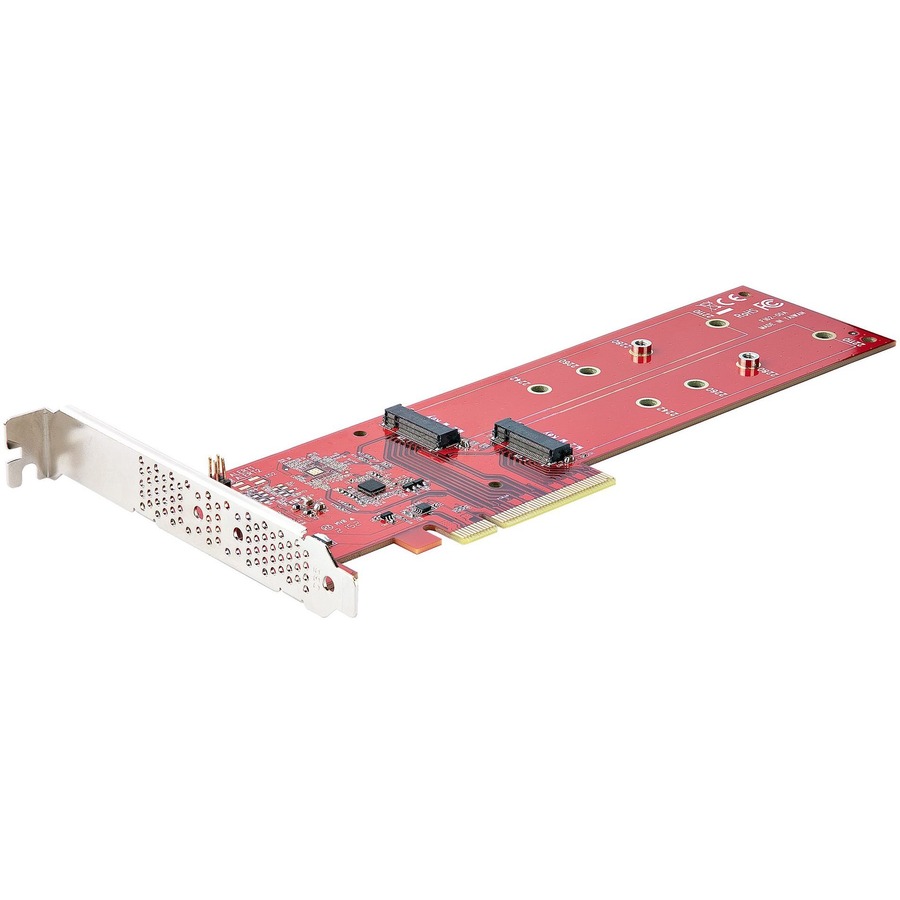

StarTech DUAL-M2-PCIE-CARD-B Accessory

Part Number: DUAL-M2-PCIE-CARD-B
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$69.61
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Product Color
Red
Height
0.9"
Width
4"
Length
9"

Product Description:

  Computer Components, StarTech, Dual M.2 PCIe SSD Adapter Card, x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 4.0, Up to 7.8GBps/Drive, For 2242/2260/2280/22110mm PCIe M-Key M2 SSDs, Bifurcation Required, PC/Linux Compatible, Dual M.2 PCIe SSD Adapter enables installation of 2x PCIe M.2 SSDs (NVMe/AHCI) through an x8/x16 PCI Express 4.0 slot, Read/write speeds up to 7.8GBps/drive, PCIe Bifurcation support is required, Windows/Linux, Vented full/low-profile brackets incl.
Explore all StarTech Accessories
Add to Quote
StarTech DUAL-M2-PCIE-CARD-B Accessory
StarTech DUAL-M2-PCIE-CARD-B Accessory
Physical Characteristics
Product Color:
Red
Height:
0.9"
Width:
4"
Length:
9"
Weight (Approximate):
2.61 oz
Miscellaneous
Package Contents:
  • PCIe to M.2 Adapter Card
  • 1 x Low Profile Bracket
  • 1 x Quick-Start Guide
  • 1 x Set of Mounting Screws
Additional Information:
Connector(s)
  • Drive Connectors: 2 - M.2 (NVMe, M-Key, PCIe x4)
  • Host Connectors: 1 - PCI Express x8
Environmental
  • Operating Temperature: -40°C to 80°C (-40°F to 176°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Humidity: 15 ~ 90% RH
Hardware
  • Interface: M.2 PCIe
  • Bus Type: PCI Express
  • Number of Drives: 2
  • Drive Size: 22 mm - M.2 NVMe
  • Compatible Drive Types: M.2 (PCIe, NVMe, NGFF)
  • Drive Installation: Fixed
  • Supported Drive Height(s): 2242; 2260; 2280; 22110
Certifications & Standards:
  • CE
  • FCC
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030895620
UPC: 065030895620
EAN: 0065030895620
UNSPSC: 43211600
