StarTech DSATPMOLP4 Accessory

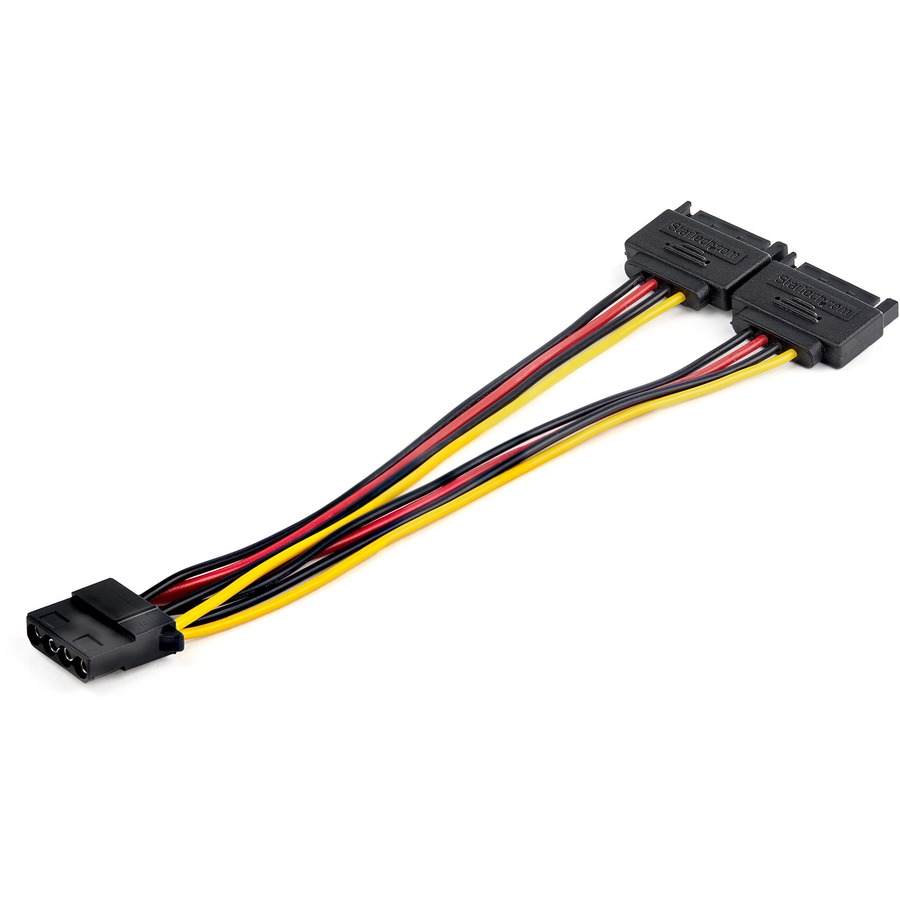

StarTech - Cable, StarTech, Dual SATA to LP4 Power Doubler Cable Adapter SATA to 4 Pin LP4 Internal PC Peripheral Power Supply Connector ATA Y Cable ale/Female 8 AWG Wire Amps/108W
  • DUAL SATA TO LP4 POWER CABLE: This power supply doubler adapter cable overcomes SATA Power supply (ATX) output limits by combining 2 SATA power connections into one 4-Pin LP4 connector, providing extra power to drive backplanes & storage peripherals
  • DUAL SATA PROVIDES 150W TO LP4 DEVICE: Dual SATA Power inputs provide additional 5V and 12V power lines, providing extra 4.5A current per line, giving a total power output of 108W (9A at 12V) and 45W (9A at 5V)
  • EXTRA POWER FOR 4-Pin LP4 BACKPLANES: The double SATA power supply to LP4 adapter cable provides extra power to mobile rack multi-drive (SSD/HDD) Backplanes that utilize LP4 Power such as StarTech.com SATSASBP425
  • HIGH QUALITY CONSTRUCTION: 100% copper 18AWG UL1007 wires with PVC insulation, allowing max current of 4.5A per wire, Insulation tested upto 300V DC and connectors made from high strength LD-PE that can withstand high voltage and current ratings
  • SPECS: 6 inch 2x SATA Power male to LP4-Pin female
Read More
$22.35
In Stock
Add to Quote
Technical Information
First End Connector Type:
SATA
First End Connector Detail:
2 x 15-pin SATA Male
Second End Connector Type:
LP4
Second End Connector Detail:
1 x 4-pin LP4 Female
Device Supported:
  • Power Supply
  • Hard Drive
  • DVD-ROM
Power Description
Voltage Rating:
  • 12 V DC
  • 5 V DC
Current Rating:
9 A
Physical Characteristics
Cord Length:
5.90"
Weight (Approximate):
0.07 lb
Miscellaneous
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0065030888110
UPC: 065030888110
EAN: 0065030888110
UNSPSC: 26121629
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The StarTech DSATPMOLP4 Accessory is also known as DSATPMOLP4
