Connectivity Technology:
Wired
StarTech BNDTB4M2E1 Cables, Connectors, and Adapters
Part Number:
BNDTB4M2E1
Model:
Parts
Technical Information
Interfaces/Ports
Host Interface:
Thunderbolt 3
DisplayPorts Quantity:
1
Power Description
Power Plug Type:
Type N
Power Source Type:
Power Adapter
Physical Characteristics
Color Family:
Black
Product Color:
Black
Product Material:
- Aluminum
- Steel
Height:
3.2"
Width:
5.6"
Length:
11"
Weight (Approximate):
3.60 lb
Miscellaneous
Package Contents:

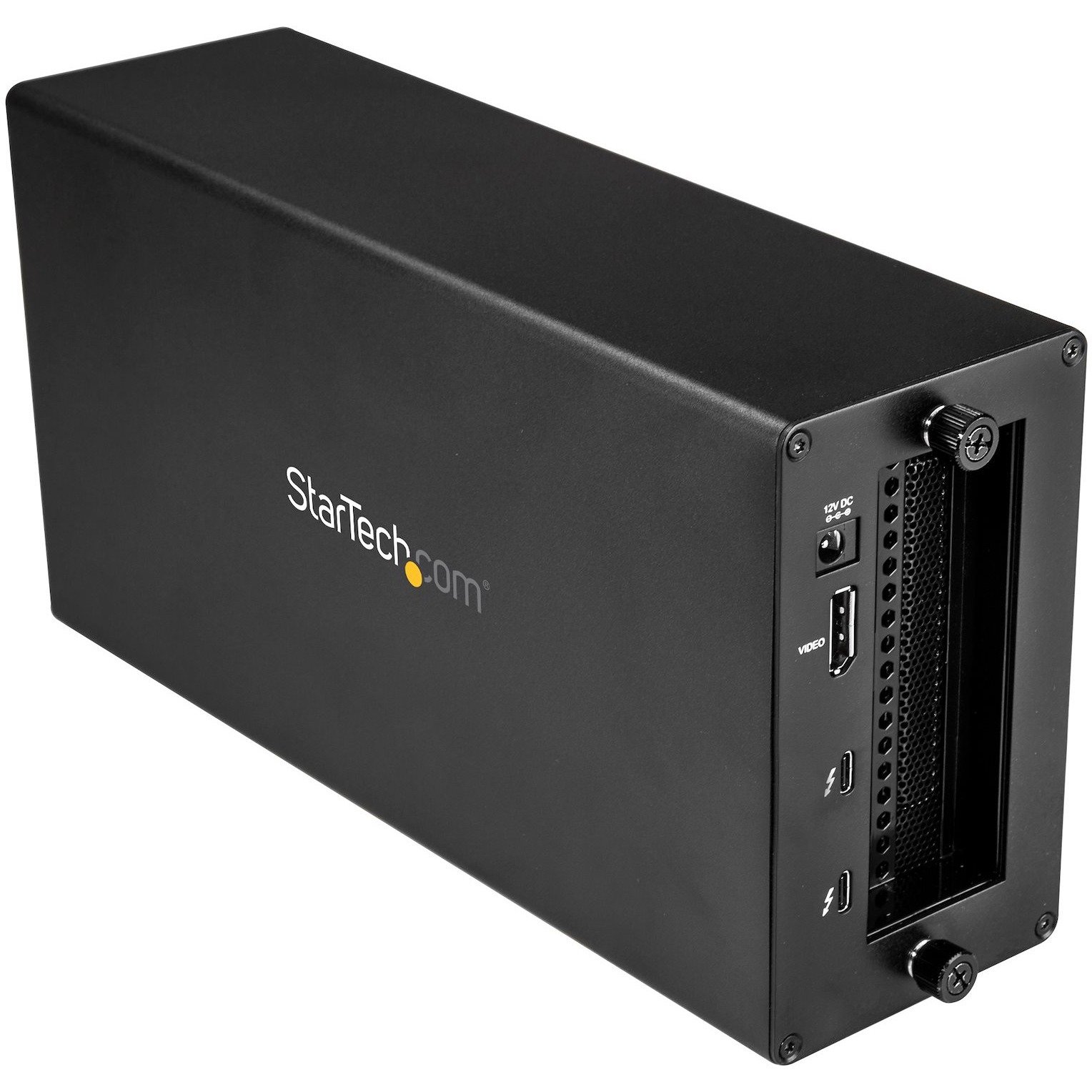

- 1 x Thunderbolt 3 PCIe expansion box
- 1 x Thunderbolt 3 cable
- 4 x Rubber feet
- 1 x Universal power adapter (NA/JP, UK, EU, ANZ)

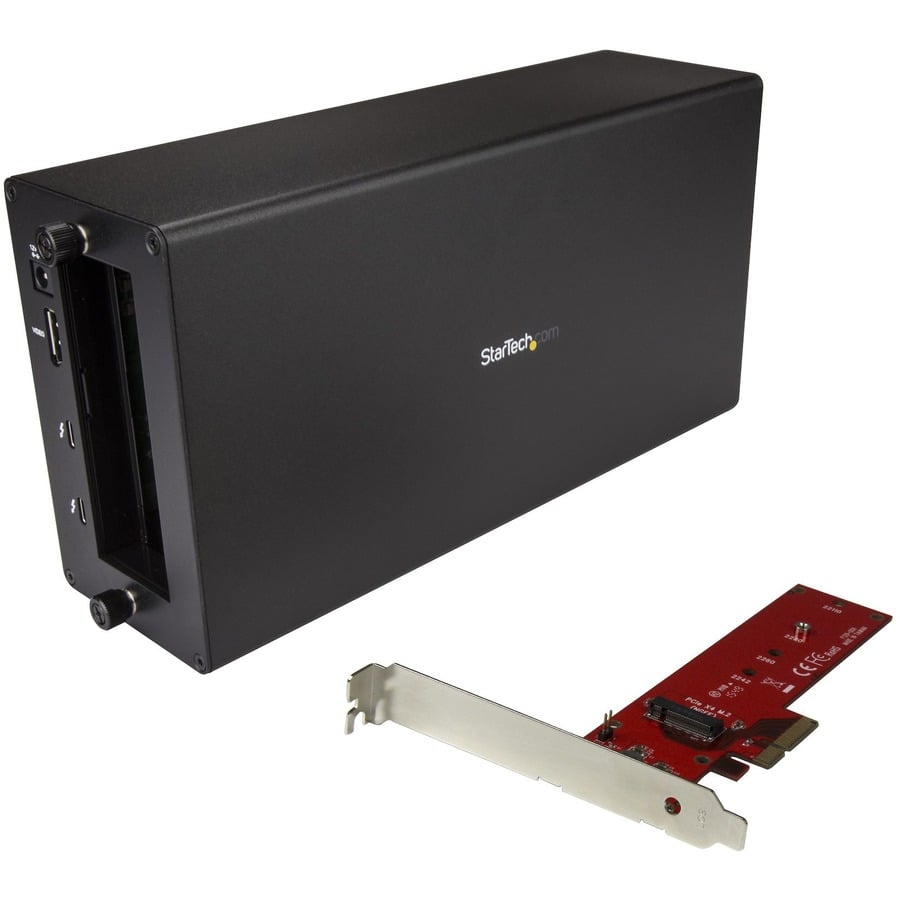

- 1 x X4 PCI Express® to M.2 PCIe SSD Adapter
- 1 x Low profile bracket
- 1 x Full profile bracket (prexinstalled)
- 2 x Quick start guides
- 1 x SSD standoff and installation screw
Additional Information:
- Internal Ports" 1 - PCI Express x16; 1 - PCI Express x4
- External Ports: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin)
- Drive Connectors: 1 - M.2 (PCIe, AHCI, M-Key, NGFF)
- Host Connectors: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
- Fan(s): Yes
- Fans: 1 - 92 mm
- Air Flow Rate: 14.06 CFM
- Noise Level: 24.55 dB
- Interface: Thunderbolt; PCI Express
- Bus Type: Thunderbolt 3; PCI Express
- Card Type: Standard Profile
- Industry Standards: Thunderbolt 3
- Fan Bearing Type: Sleeve Bearing
- Chipset ID: Chassis: Intel - Alpine Ridge DSL6540 ; PCIe Card: N/A
Application/Usage:
- Desktop
- Laptop
Certification:
- CE
- FCC
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0065030879132, 0993245766452
UPC:
065030879132, 993245766452
EAN:
0065030879132, 0993245766452
UNSPSC:
43201600
The StarTech BNDTB4M2E1 Cables, Connectors, and Adapters is also known as
BNDTB4M2E1
