Connectivity Technology:
Wired
StarTech BNDTB1394B3 Cables, Connectors, and Adapters
Part Number:
BNDTB1394B3
Model:
Parts
Technical Information
Interfaces/Ports
Host Interface:
Thunderbolt 3
DisplayPorts Quantity:
1
Power Description
Power Plug Type:
Type N
Power Source Type:
Power Adapter
Physical Characteristics
Color Family:
Black
Product Color:
Black
Product Material:
- Aluminum
- Steel
Height:
3.2"
Width:
5.6"
Length:
11"
Weight (Approximate):
3.75 lb
Miscellaneous
Package Contents:

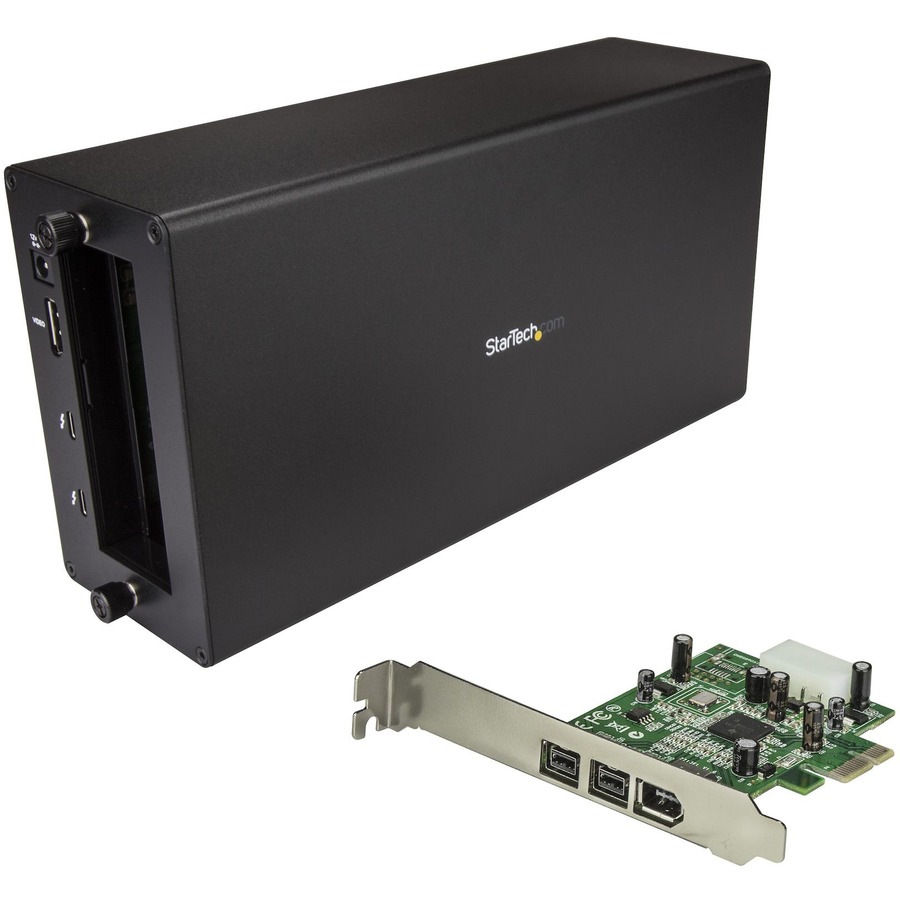

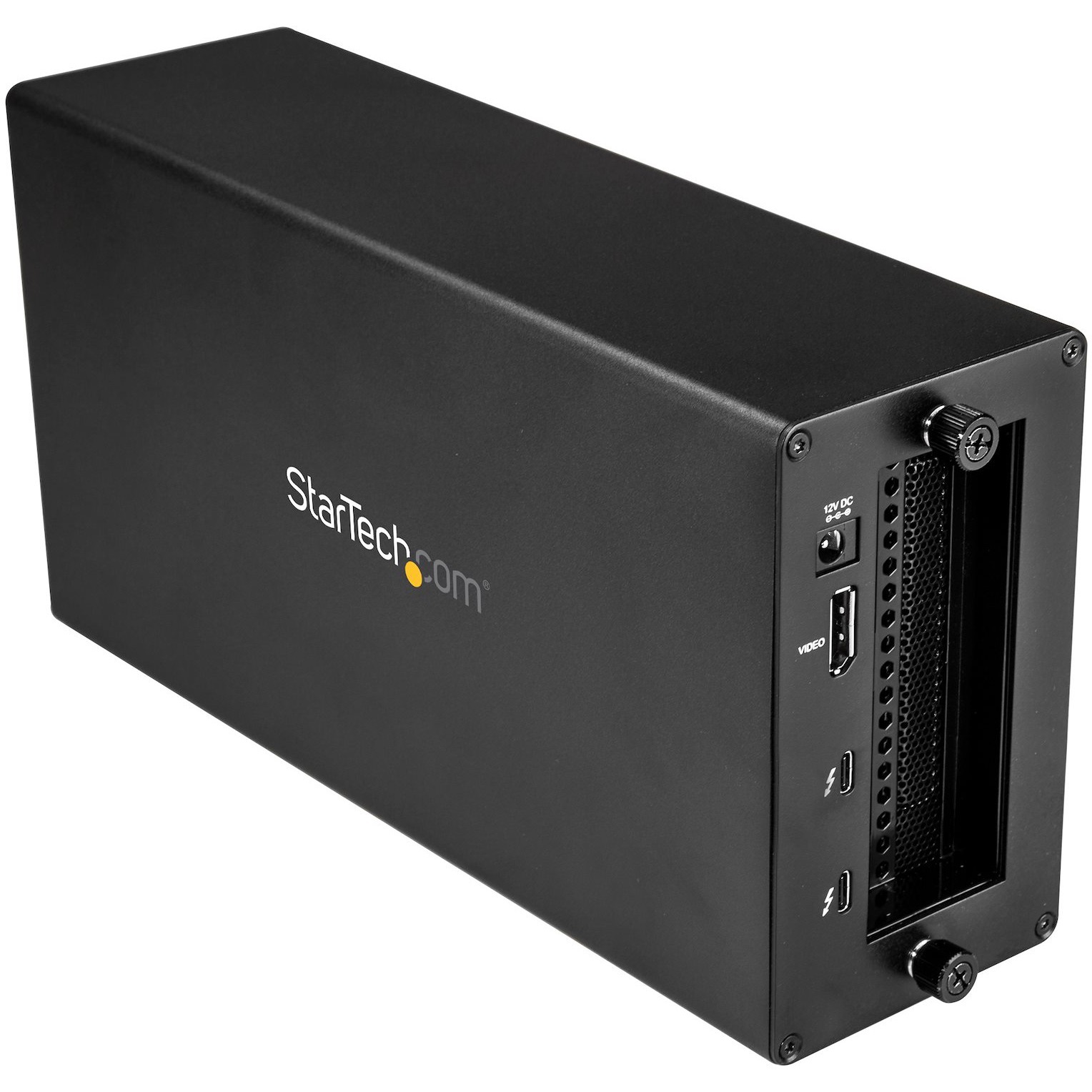

- Thunderbolt 3 to FireWire Adapter - Card & Chassis
- AC Adapter
Additional Information:
- Connector Type(s): 1 - PCI Express x1
- Internal Ports: 1 - PCI Express x16; 1 - LP4 (4 pin; Large Drive Power)
- External Ports: 1 - FireWire 400 (6 pin, IEEE 1394a); 2 - FireWire 800 (9 pin, IEEE 1394b); 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin)
- Fan(s): Yes
- Fans: 1 - 92 mm
- Ports: 6
- Air Flow Rate: 14.06 CFM
- Noise Level: 24.55 dB
- Interface: Thunderbolt; FireWire 800 (1394b); FireWire 400 (1394a)
- Bus Type: Thunderbolt 3; PCI Express
- Card Type: Standard Profile
- Industry Standards: Thunderbolt 3; IEEE-1394/1394A/1394B; OHCI;PCI Express 1.1
- Fan Bearing Type: Sleeve Bearing
- Chipset ID: Intel - Alpine Ridge DSL6540 (Thunderbolt Chassis) Texas Instruments - XIO2213B (Firewire card)
Application/Usage:
- Desktop
- Laptop
Certification:
- CE
- FCC
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0065030879095
UPC:
065030879095
EAN:
0065030879095
UNSPSC:
43201600
Get help from a Barcoding Expert!
The StarTech BNDTB1394B3 Cables, Connectors, and Adapters is also known as
BNDTB1394B3
