StarTech 2P6GR-PCIE-SATA-CARD Accessory

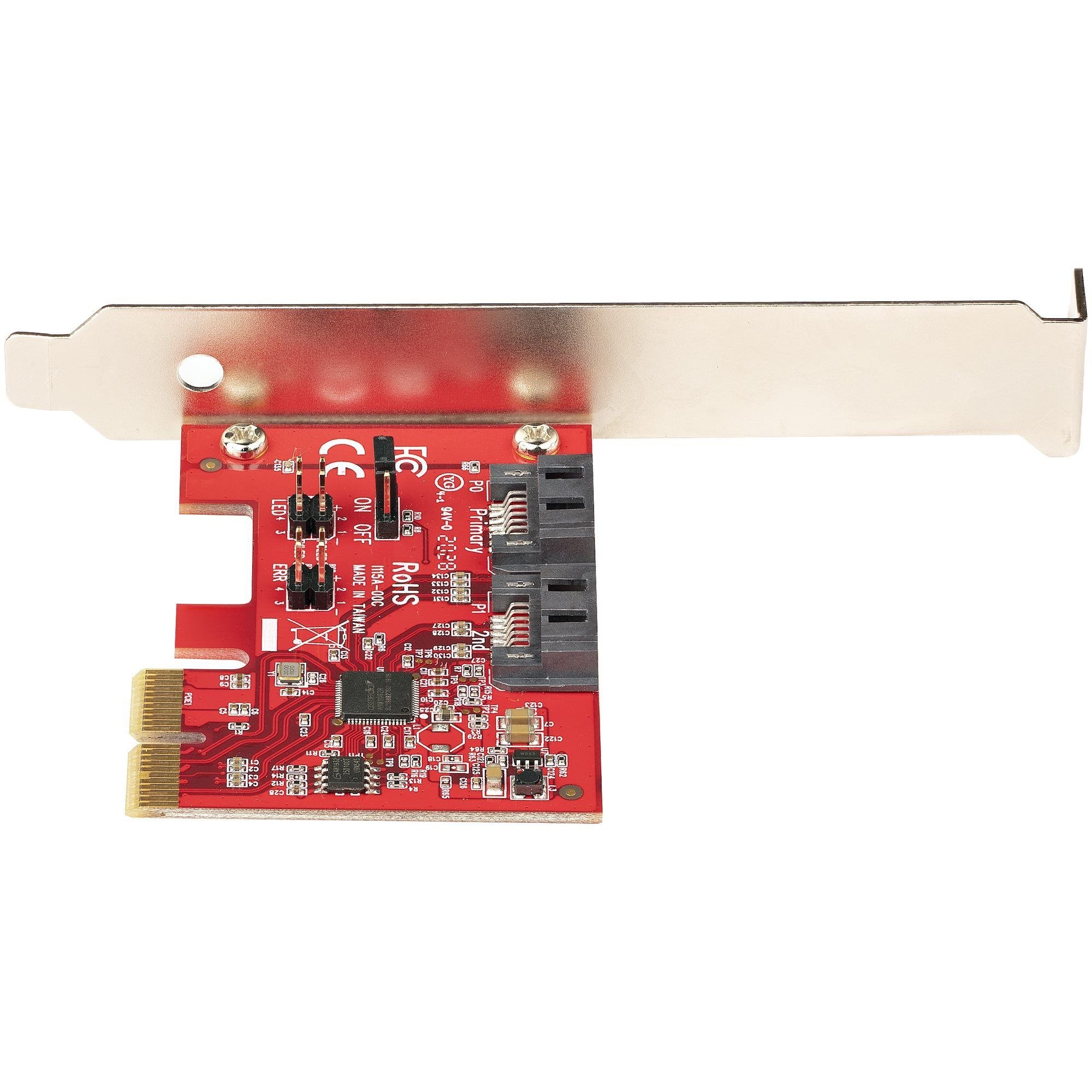

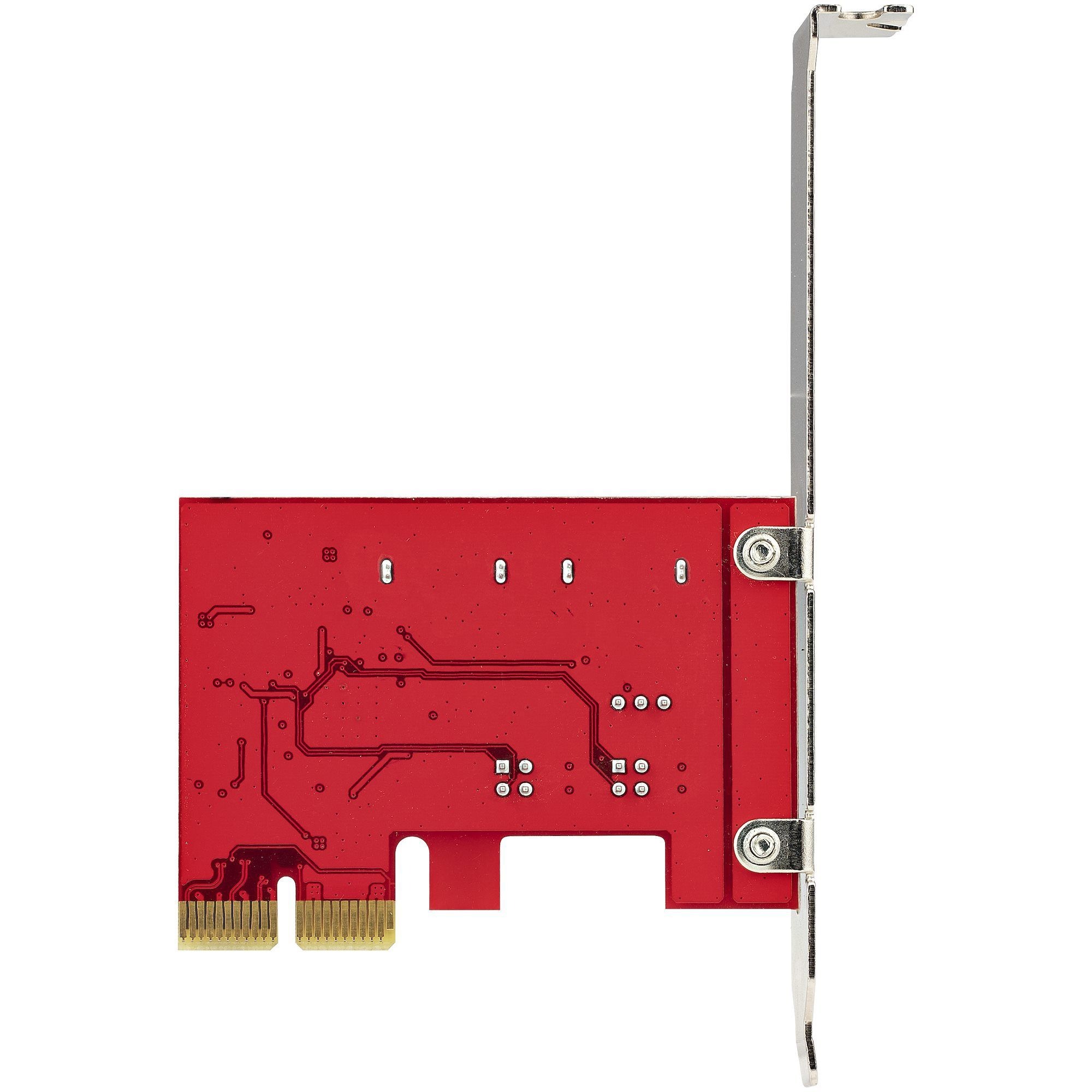

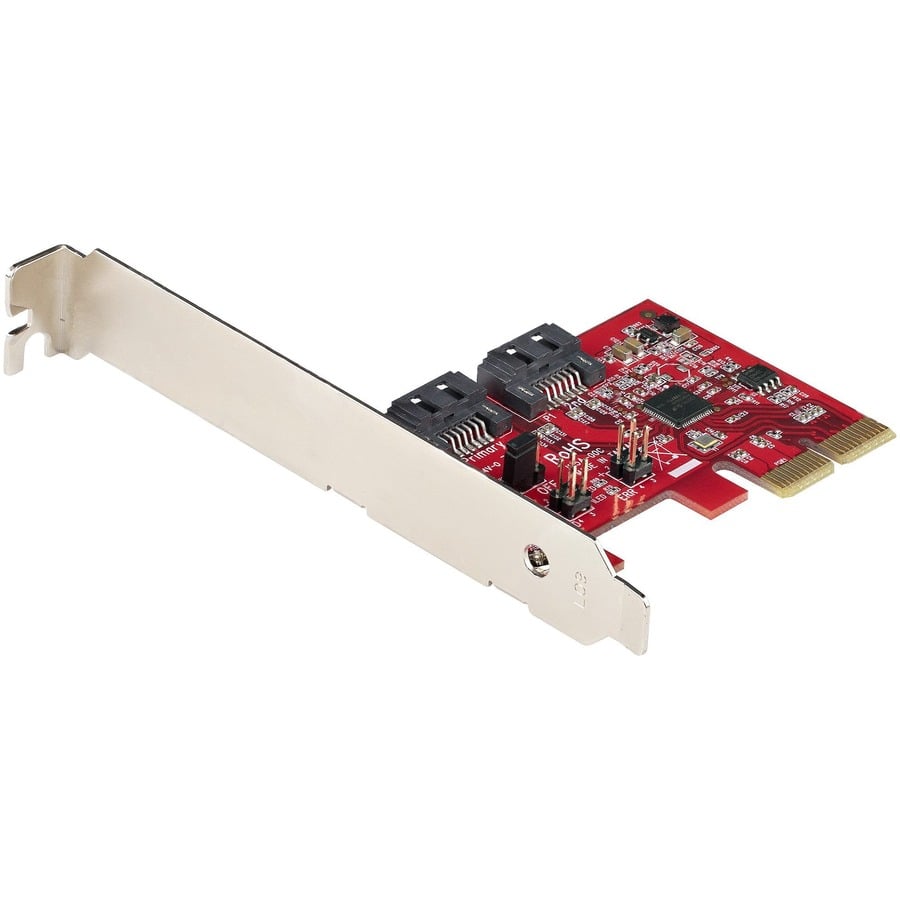

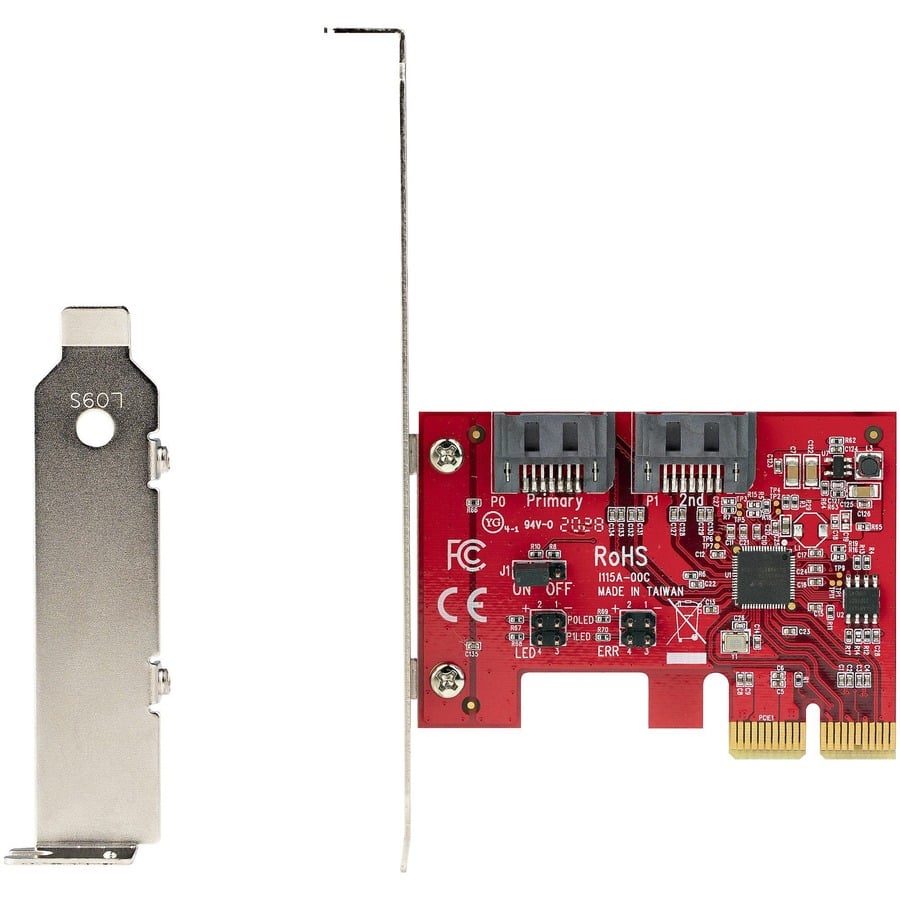

StarTech - StarTech.com 2 PORT SATA PCIE CARD ADAPTER PCI EXPRESS SATA RAID CONTROLLER
  • HIGH-PERFORMANCE: Add two SATA III 6Gbps ports to your desktop computer or server using a PCI Express x2 slot to connect SATA drives (HDD/SSD); 6Gbps per port; Built-in hardware RAID controller to off-load host CPU for maximum performance
  • VERSATILE HARDWARE RAID CONFIGURATIONS: The PCIe card supports Hardware RAID modes: RAID 0/RAID 1/SPAN (Big Disk); The card can also be used without RAID in JBOD (Just a Bunch of Disks) supporting HDD, SSD, and Optical Disk Drives (Blu-Ray/DVD/CD ROM/RW)
  • COMPATIBILITY: PCIe 2.0; Plug-and-play setup on Windows (7+), macOS (10.10+), Linux (2.6.32+); OS booting on Windows & Linux for BIOS level RAID setup/config; Incl Windows app for OS level RAID setup/config & monitoring; Software RAID only on macOS
  • APPLICATIONS: Setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Ideal for laboratories, performance CAD or Audio/Video work stations, data banks & schools; Upgrade computer systems with Hardware RAID & SATA 6Gbps
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe expansion adapter controller card converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Read More
$71.97
In Stock
Add to Quote
Technical Information
Host Interface:
PCI Express x2
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • JBOD
Device Supported:
Server
Operating System Supported:
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Linux 2.6.32
  • Windows 11
  • Mac OS X 10.10 Yosemite
  • Mac OS X 10.13 High Sierra
  • Mac OS X 10.14 Mojave
  • Mac OS X 10.15 Catalina
  • Mac OS X 11.0 Big Sur
  • Mac OS X 12.0 Monterey
  • Mac OS X 13.0 Ventura
Interfaces/Ports
Total Number of SATA Ports:
2
Number of SATA Ports (Internal):
2
Physical Characteristics
Height:
4.8"
Width:
2.7"
Length:
0.9"
Form Factor:
Plug-in Card
Weight (Approximate):
1.23 oz
Miscellaneous
Package Contents:
  • SATA Controller Card
  • Full-Profile Bracket (Installed)
  • Low-Profile Bracket
  • Quick-Start Guide
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year Lifetime
Item Numbers
GTIN: 0065030893169
UPC: 065030893169
EAN: 0065030893169
