StarTech 25S22M2NGFFR Accessory

Part Number: 25S22M2NGFFR
Model: Parts
$47.11

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Color Family
Dual Color
Product Color
BlackSilver
Height
0.3"
Width
2.8"

Product Description:

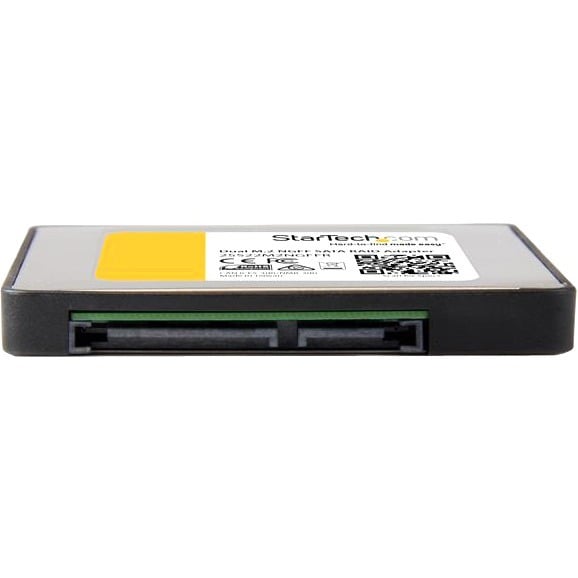

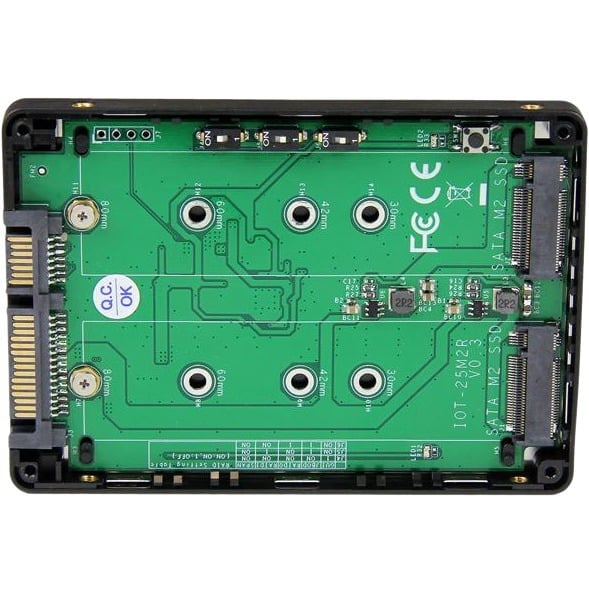

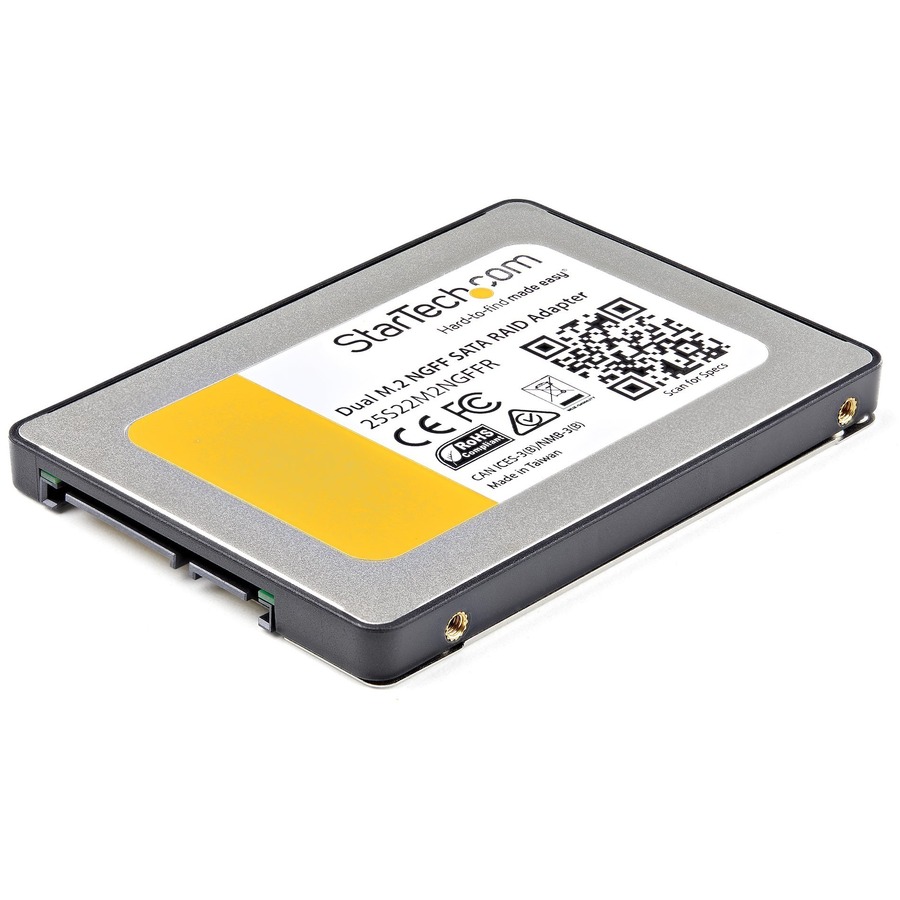

  Computer Components, StarTech, Dual M.2 SATA Adapter with RAID
Physical Characteristics
Color Family:
Dual Color
Product Color:
  • Black
  • Silver
Height:
0.3"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
1.90 oz
Miscellaneous
Package Contents:
  • Dual M.2 NGFF SATA Adapter With RAID
  • 2 x M.2 Drive Mount Hardware
  • 4 x Screws
  • 1 x Mini Screwdriver
  • 1 x Quick Start Guide
Additional Information:
  • Drive Connectors: 1 - SATA Data & Power Combo (7+15 pin)
  • Host Connectors: 2 - M.2 (SATA, B-Key, NGFF)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -10°C to 85°C (14°F to 185°F)
  • Humidity: 5% ~ 95% RH
  • Interface: SATA
  • Supported Drive Height(s): 2230; 2242; 2260; 2280
  • Number of Drives: 2
  • Drive Size: 22m - M.2 NGFF
  • Compatible Drive Types: M.2 (SATA, NGFF)
  • Drive Installation: Fixed
  • Chipset ID: ASMedia - ASM1092R
  • Maximum Data Transfer Rate: 6Gbps
  • Type and Rate: SATA III (6 Gbps)
  • Port Multiplier: Yes
  • Hardware Raid Supported: Yes
  • Supported RAID Modes: RAID 0 (Striped Disks); RAID 1 (Mirrored Disks); JBOD - (Just a Bunch of Disks); BIG (Spanning or Concatenation)
  • General Specifications: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs . In order to see multiple drives in JBOD mode, your computer's SATA controller must also support Port Multiplier.
  • MTBF: 500000

Certifications & Standards:
  • CE
  • FCC
Country of Origin:
Taiwan
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211600
