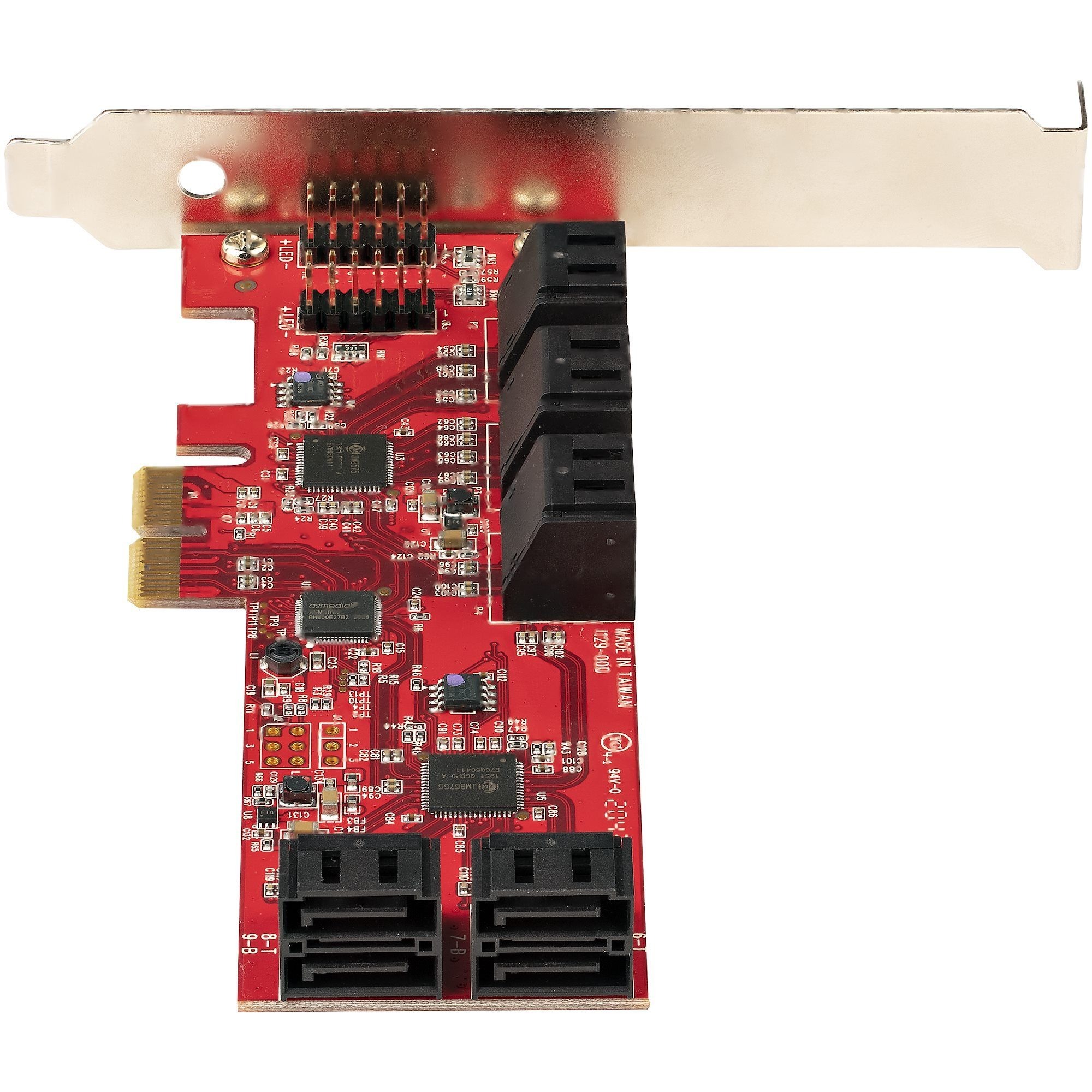

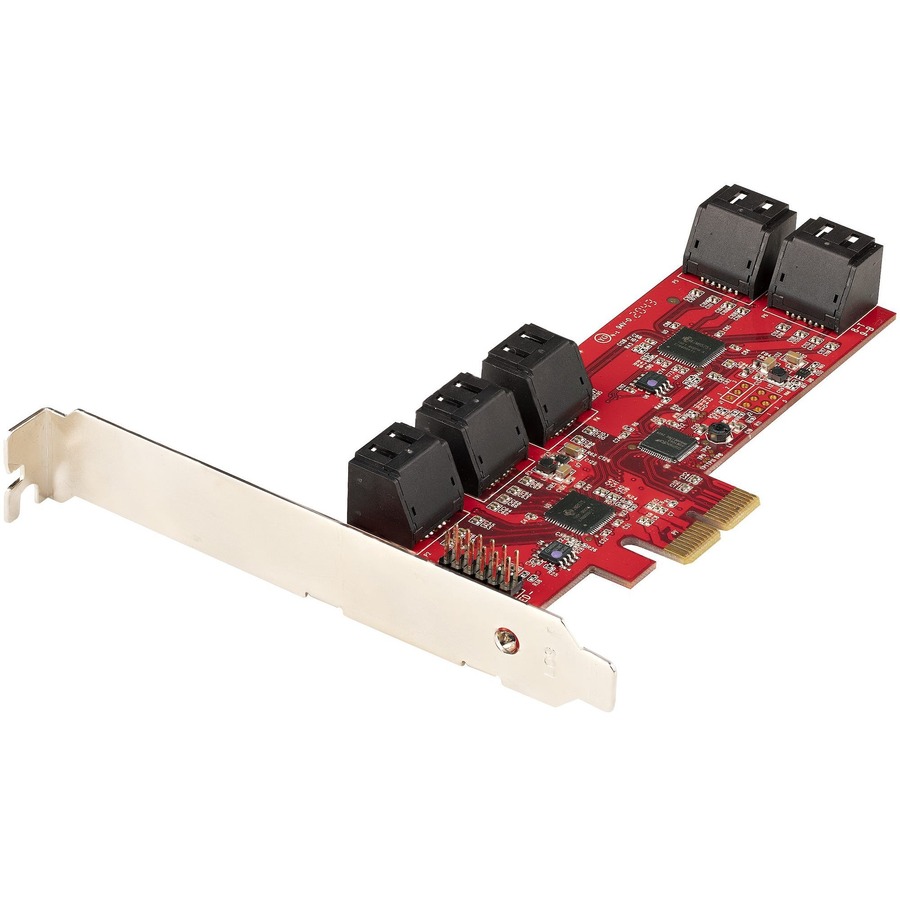

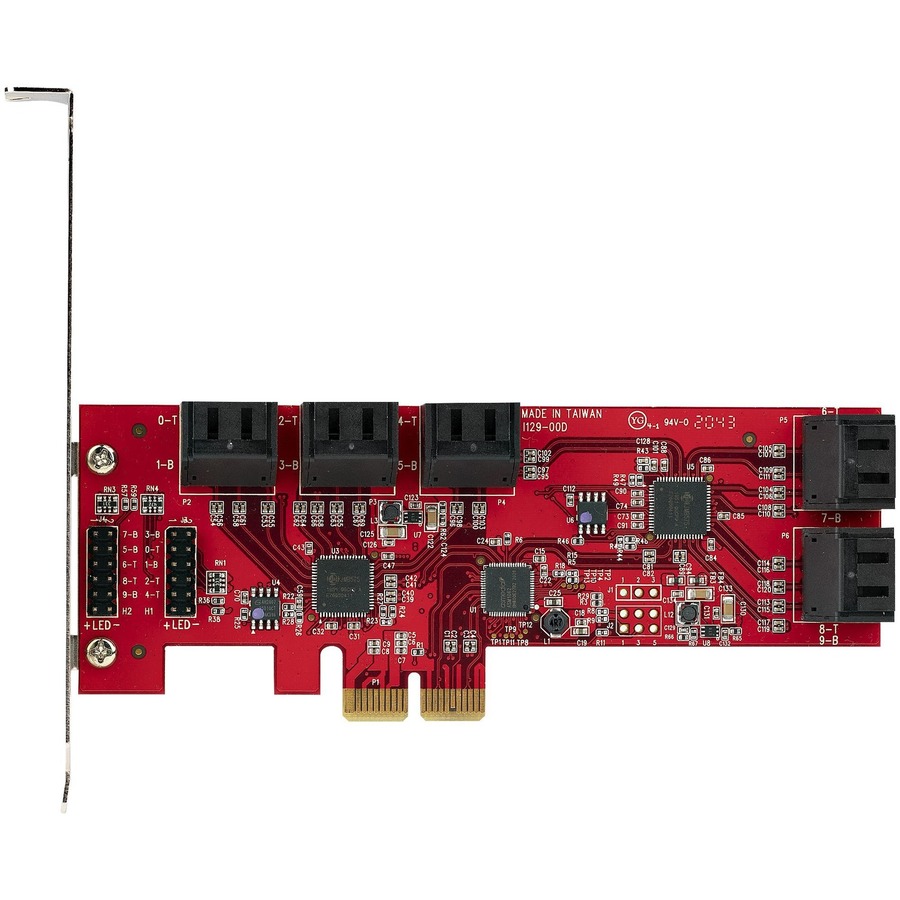

StarTech 10P6G-PCIE-SATA-CARD Accessory

StarTech - StarTech.com 10 PORT SATA PCIE CARD ADAPTER PCIE SATA EXPANSION CONTROLLER
  • HIGH-PERFORMANCE: Add ten SATA III 6Gbps ports to your desktop computer or server using a PCIe x4 slot to connect SATA drives (HDD/SSD); 10-Port SATA PCIe card features 10x SATA connections for connecting drives using SATA cables (sold separately)
  • ASM1062 CONTROLLER: This PCI Express SATA 3 6Gbps card features single-chip architecture adding ten SATA (serial ATA) 6Gbps ports via a single x4 PCIe slot, for combined total bandwidth up to 10Gbps; Supports Port Multiplier & NCQ (Native Command Queue)
  • COMPATIBILITY: Supports PCIe 2.0, SATA 3.2 & AHCI 1.4 Specs, and previous gens at lower performance; Windows (7+), macOS (10.10+), Linux (2.6.32+); Improved motherboard compatibility with no bifurcation required & no built-in RAID; Supports ATA & ATAPI
  • EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux)
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Read More
$147.05
In Stock
Add to Quote
Technical Information
Host Interface:
PCI Express 2.0 x2
Controller Type:
Serial ATA/600
RAID Supported:
No
Device Supported:
Server
Operating System Supported:
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Mac OS X 10.10 Yosemite
  • Mac OS X 10.13 High Sierra
  • Mac OS X 10.14 Mojave
  • Mac OS X 10.15 Catalina
  • Mac OS X 11.0 Big Sur
  • Mac OS X 12.0 Monterey
  • Mac OS X 13.0 Ventura
  • Linux 2.6.32
Interfaces/Ports
Total Number of SATA Ports:
10
Number of SATA Ports (Internal):
10
Physical Characteristics
Height:
0.6"
Width:
2.1"
Length:
5.5"
Form Factor:
Plug-in Card
Weight (Approximate):
2.65 oz
Miscellaneous
Package Contents:
  • PCIe SATA Card
  • Full-Profile Bracket (Installed)
  • Low-Profile Bracket
  • Quick-Start Guide
Platform Supported:
  • PC
  • Mac
  • Linux
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
Taiwan
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0065030893763
UPC: 065030893763
EAN: 0065030893763
