Star TSP1043D-24 Receipt Printer
Part Number:
TSP1043D-24
Model:
TSP1000
Full specifications (PDF)

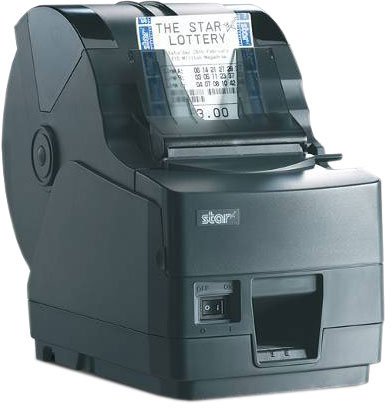

Star TSP1000 Receipt Printer Model Overview
The TSP1000 High Capacity Direct Thermal Printer from Star Micronics is designed to meet the demands of high-volume printing environments. Featuring the ability to accommodate a 7” diameter paper roll, this printer ensures efficient batch printing with its integrated ticket/document stacker, capable of holding up to 30 tickets at once. With a blazing print speed of 180 mm per second and a crisp 203 dpi resolution, it produces high-quality prints with 2D barcode support, making it ideal for various applications. Maximize productivity and minimize clutter with the TSP1000, your reliable printing solution.
Key features:
Specifications:
Key features:
- High capacity for 7" paper rolls
- Fast print speed of 180 mm/s
- 203 dpi print resolution
- Automatic ticket/document stacker
- Supports multiple barcode formats
- Designed for easy drop-in paper loading
Specifications:
- Resolution: 203 dpi (8 dots/mm)
- Print Speed: 180 mm/s
- Printable Area: 80 mm (max)
- Printable Width: 0 mm (left or right)
- Paper Specifications:
- Paper Width: 45-82.5 mm (variable)
- Paper Thickness: 65-150 μm
- Outer Diameter: 180 mm (max)
- Paper Loading: Drop-in & Print
- Sensors: Paper Out, Paper Low, Black Mark, Cover Open
- Cutter Type: Guillotine
- Cutter Life: 1 Million Cuts
- Stacker Capacity: 30 Sheets
- Power Requirement: 24V DC (Option PS60L-24 A Power Supply)
- Interface (Cartridge Type): Serial (RS232C), Parallel (IEEE1284), USB2.0 (Full Speed), Ethernet 10Base-T
- Supported Barcodes: Code39, Code93, Code 128, JAN/EAN8, JAN/EAN13, ITF, NW7, PDF417
- Drivers: Windows, OPOS, JavaPOS, Linux, Mac OS X
