Full specifications (PDF)
Print Color Capability:
Color
Print Technology:
Direct Thermal
Number of Pins:
9-pin
Maximum Number of Columns:
60
Features:
Auto-cutter
MICR:
Yes

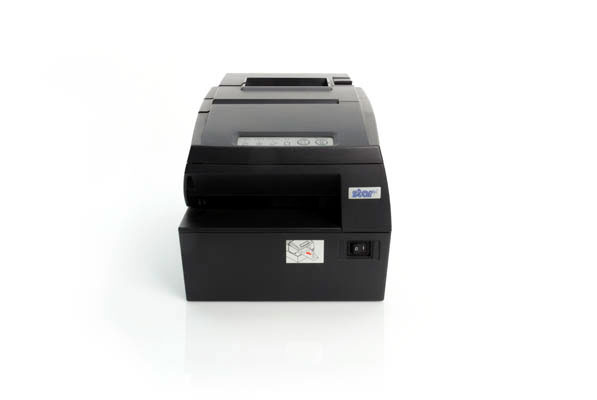

Star HSP7743 Receipt Printer Model Overview
The Star HSP7743 is designed to assist retail, grocery and banking establishments that want to support check paying customers at the POS station, at a price comprable to a single station printer. The HSP7743 will read the check's MICR reliably, endorse checks without jams and print a receipt as fast as possible. The HSP7743 series combines key features from Star's celebrated range of products, including the market leading TSP700 Series, the super fast TSP100GT, as well as components from the high speed SP700 dot matrix printer.
Star 39610101 Receipt Printer Overview
The HSP7743 is designed to assist retail, grocery and banking establishments that want to support check paying customers at the POS station, at a price comprable to a single station printer.
Technical Information
Interfaces/Ports
Serial:
Yes
Media Types & Handling
Media Type:
- Validation
- Receipt
Media Thickness:
3.3 mil
Fonts & Emulation
Language Emulation:
ESC/POS
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Product Color:
Gray
Height:
7"
Width:
7.3"
Depth:
11.7"
Weight (Approximate):
10.14 lb
Miscellaneous
Package Contents:
- HSP7743D-24 GRY Multistation Printer
- Installation CD with Drivers and Manuals
- Set Up Sheets
- Start Up Thermal Paper Roll
- Ribbon Cartridge
- Paper Guide
- Power Switch Cover
- Ferrite Core
Additional Information:
- Reliability: 37 Million Lines
- Bar Codes Supported
- Digitally Signed
Certifications & Standards:
- UL
- C-UL
- TüV
- FCC Class A
- CE
- CB GOST
- C-tick
- AS Standard
- VCCI Class A
- EN55022
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0088047235029
UPC:
088047235029
EAN:
0088047235029
UNSPSC:
43212112
