Star 39470200 Receipt Printer


0.0

(No reviews)

Be the first to

Write a Review

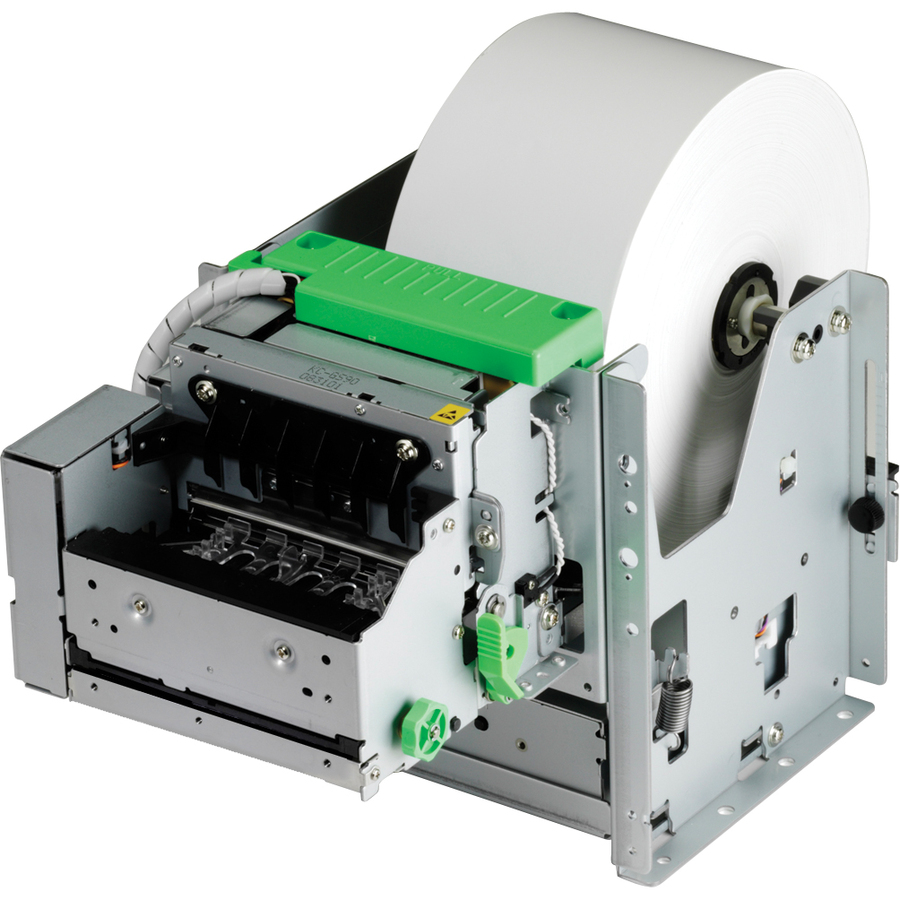

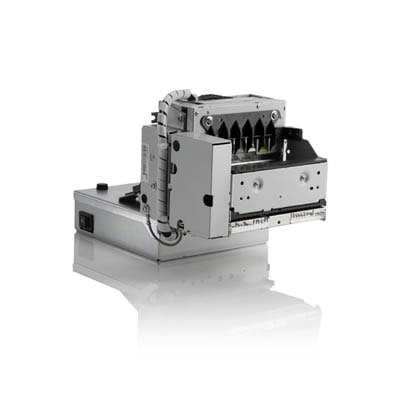

Star TUP542 - Direct Line Thermal Kiosk Printer, 203 dpi, 220 mm/second print speed, auto-cutter, 2-color. Requires power supply (Part# 30781753) and Interface Card. Also known as TUP542-24. Non-Cancellable, Non-Returnable, Please call use with any questions.
$446.20
Ships in 3-5 Days
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Modular design for easy integration

With a compact footprint and support for smaller paper widths, the TUP542 is a welcomed addition to Star's kiosk printer line to provide solutions to a great range of applications. The TUP542 features an industry leading print speed of up to 220 mm/sec and a high reliability at an MCBF of 60 million lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The TUP542 features adjustable paper widths of 45 mm to 82.5 mm documents. With the addition of the optional Large Paper Roll Accessory, it supports up to a 10" paper roll for many hours of unattended operation. The TUP542 kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.

Technical Information

  • Maximum Mono Print Speed: 8.66 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Recommended Use: Receipt Print
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • ITF
    • Code 39
    • Code 128
    • Code 93
    • Codabar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TUP500
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TUP542-24
  • Product Name: TUP500 TUP542-24 Receipt Printer

Physical Characteristics

  • Height: 7"
  • Width: 6.3"
  • Depth: 7.3"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • TUP542-24 Receipt Printer
    • PS60A External Power Supply
    • TUP542-24 Receipt Printer
    • PS60A External Power Supply

Media Types & Handling

  • Maximum Label Width: 3.25"
  • Media Type: Receipt
  • Media Thickness: 5.91 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Paper Low Sensor
    • Out Of Paper Sensor
  • Maximum Roll Diameter: 5.91"

Fonts & Emulation

  • Language Emulation:
    • ESC/POS
    • Star Line Mode
    • Star Page Mode

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Power Description

  • Input Voltage: 24 V DC

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)
