Star 39462411 Receipt Printer


0.0

(No reviews)

Be the first to

Write a Review
Star TSP1043 - THERMAL, PRINTER, CUTTER, USB, GRAY, 80 MM PAPER, LARGE ROLL CAPACITY, SLIP STACKER, REQUIRES POWER SUPPLY (Part# 30781753) (replaces 39462410)

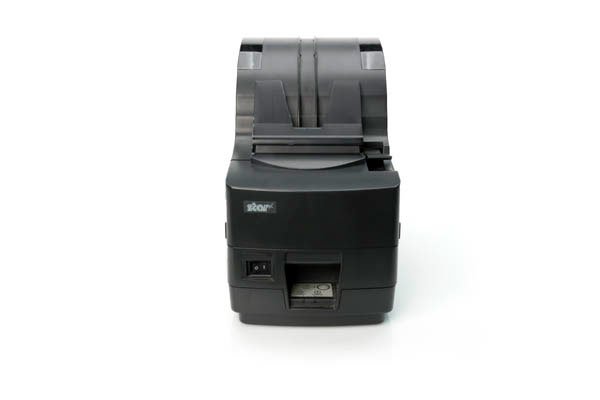

High-Capacity Thermal Printer with Ticket and Receipt Stacker

The Star TSP1000 features high speed output (up to 180 mm/sec), easy loading of the large paper roll (up to 180 mm diameter) capacity, the ability to hold various paper widths (from 45 to 82.5 mm) and an integrated ticket stacker. The TSP1000's ticket stacker can hold up to 30 tickets and features a fitted sensor to prevent overloading. The TSP1000 is available in two color output and multiple housing colors.

Technical Information

  • Maximum Mono Print Speed: 7.09 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Number of Columns: 40
  • Maximum Print Width: 3.15"
  • Recommended Use: Receipt Print
  • Features: Cutter
  • Barcode Symbology Supported: PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TSP1000
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TSP1043U
  • Product Name: TSP1043U Receipt Printer

Physical Characteristics

  • Height: 9.8"
  • Width: 6.3"
  • Depth: 12.1"
  • Form Factor: Desktop
  • Color: Gray

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • TSP1043U Receipt Printer
    • User Manual
    • Set Up Guide
    • Paper Stopper
    • Power Switch Cover
    • Ferrite Core
    • Roll Paper Holders
    • Roll Paper Shaft
    • TSP1043U Receipt Printer
    • User Manual
    • Set Up Guide
    • Paper Stopper
    • Power Switch Cover
    • Ferrite Core
    • Roll Paper Holders
    • Roll Paper Shaft

Media Types & Handling

  • Maximum Label Width: 3.25"
  • Media Type: Receipt
  • Media Thickness: 5.91 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Paper Low Sensor
    • Out Of Paper Sensor
    • Media Door Open Sensor
  • Maximum Roll Diameter: 7.09"

Memory

  • Standard Memory: 2 MB
  • Memory Technology: SRAM
  • Flash Memory: 16 MB

Fonts & Emulation

  • Language Emulation:
    • ESC/POS
    • Star Page Mode

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)
