Star 39449660 Receipt Printer


0.0

(No reviews)

Be the first to

Write a Review

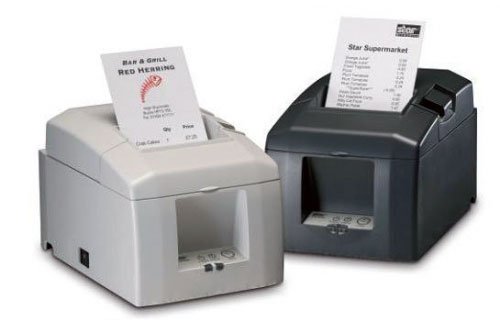

Star TSP650 Series: TSP654 - Thermal printing, Auto-cutter, USB interface. Cables sold separately. Color: White.
Choose either tear bar or auto-cutter

The Star TSP654 boasts valuable features like an auto-cutter, low cost and high performance combined with the ability to work effectively in any environment. Out of the box, the TSP654 can easily be configured in Star Line or ESC/POS emulation mode and features a wide variety of interface options including USB and Ethernet due to its plug-in modules. New vertical mount stand and splash proof cover options help make it one of the most reliable POS printers in the world.

Technical Information

  • Maximum Mono Print Speed: 11.81 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 3.15"
  • Recommended Use: Receipt Print
  • Features:
    • Cutter
    • Horizontal Printing
    • Vertical Printing
  • Barcode Symbology Supported: PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TSP650II
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TSP654II
  • Product Name: TSP654II Receipt Printer

Physical Characteristics

  • Height: 5.2"
  • Width: 5.6"
  • Depth: 8"
  • Form Factor: Wall Mount
  • Weight (Approximate): 3.79 lb

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • TSP654II Receipt Printer
    • Installation CD (Printer Driver / Manuals)
    • Wall Mount Bracket
    • Vertical Mount Accessory
    • 58mm Paper Guide
    • Power Switch Cover
    • Set Up Guide
    • Start Up Paper Roll
    • Power Supply
    • TSP654II Receipt Printer
    • Installation CD (Printer Driver / Manuals)
    • Wall Mount Bracket
    • Vertical Mount Accessory
    • 58mm Paper Guide
    • Power Switch Cover
    • Set Up Guide
    • Start Up Paper Roll
    • Power Supply
  • Certifications & Standards:
    • UL
    • C-UL
    • TüV
    • FCC
    • VCCI
    • EN55022
    • CE
    • Gost

Media Types & Handling

  • Maximum Label Width: 3.15"
  • Media Type: Receipt
  • Media Thickness: 3.35 mil
  • Media Sensor:
    • Out Of Paper Sensor
    • Cover Open Sensor
  • Maximum Roll Diameter: 3.27"

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Fonts & Emulation

  • Language Emulation: ESC/POS

Warranty

  • Limited Warranty: 3 Year

Cutter

  • Cutting Method: Automatic

Memory

  • Flash Memory: 16 MB

Full specifications (PDF)

Full specifications (PDF)

Brand Star
Model TSP654
Print Method Thermal
Cutter Option Auto-Cutter
Interface USB
Print Width 3.15 inches
Paper Dimension 3.125
Print Speed 5.9 inches
Color White, Putty
Form Factor Desktop
Magstripe Option No Magstripe
