Star 39442501 Receipt Printer

Part Number: 39442501
Model: TSP743 ii
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Receipt Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
9.84 in/s
Maximum Print Resolution (dpi)
406 x 203

Product Description:

  Thermal, two-color printing, 7 ips, USB interface. Includes auto-cutter. Order cables & power supply separately. See accessories. Color: putty. Replaces (P/N 39442500).
Explore all Star TSP743 ii Receipt Printers
Add to Quote
Star 39442501 Receipt Printer
Star 39442501 Receipt Printer
Star 39442501 Receipt Printer
Star 39442501 Receipt Printer Star 39442501 Receipt Printer

Full specifications (PDF)

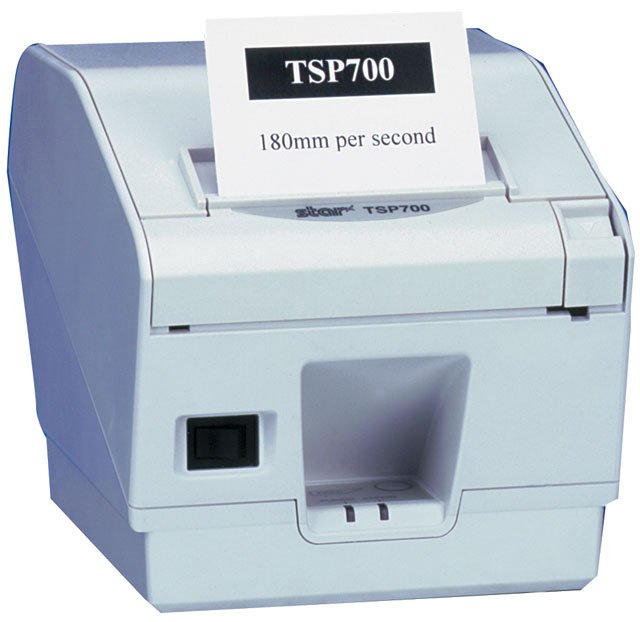

Star TSP743 ii Receipt Printer Model Overview

The TSP700 series ultra-high speed thermal printer is designed for fast-paced environments, delivering impressive print speeds of up to 180mm/sec. This compact printer is perfect for a variety of applications including POS, hospitality, and kiosks. With its two-color printing capability, businesses have the advantage of enhancing their branding while minimizing customer wait times. The TSP700 features a "Drop-in & Print" paper loading system, automatic cutter, and can store multiple logos and coupons, making it an invaluable tool for customer engagement and loyalty initiatives.

Key features:
  • Ultra-High Speed - 180mm/sec
  • Two-Color Ready
  • "Drop-in & Print" Paper Loading
  • Logo Store Utility for Coupon and Graphic Storage
  • Wall and Vertical Mount Brackets
  • Silent Printing
  • Clean - No Ribbon Changes
  • 3 Year Warranty


Specifications:
  • Print Speed: 180mm/sec (60 LPS @ 3mm line)
  • Resolution: 203 dpi
  • Paper Width: Adjustable - 80mm Default, 58mm, 82.5mm
  • Print Width: Adjustable - 72mm Default, 52mm, 80mm
  • No. of Columns: 48 Default, Maximum 71
  • Bar Codes: UPC-A, UPC-E, JAN/EAN-8, JAN/EAN-13, ITF, CODE39, CODE93, CODE128, CODABAR (NW-7)
  • Paper Sensors: Near End, Paper Out, Top Of Form
  • Reliability: 60 Million Lines
  • Printer Cutter: 1 Million Cuts (Full and Partial Cut)
  • Interface: Serial RS232C, Parallel (IEEE1284) and USB
  • Cash Drawer: Optional - Serial RS232C (D-Sub 9 pin)
  • Emulation: Star, ESC/POS™
  • Drivers: Windows 95/98/2000, NT, Raster Graphics, OPOS, JavaPOSTM, Linux and Mac OSX
  • Options: External power supply, wall & vertical mount brackets, spill proof cover
Star 39442501 Receipt Printer Overview

Building on the industry success of the TSP700 from Star Micronics, with a print speed of 48 receipts per minute (250mm/sec), the TSP700II is the best single station printer you can expect. The TSP700II now features a double resolution mode to increase sharpness to any graphic! Eye catching graphics for company logos and/or coupons are a print away. Its improved and sleeker design features a new top cover which extends to the edge of the printer making it more difficult for dust and liquids to penetrate and harm the printer. In addition to the extended cover, sound and vibration dampening channels within the printer help reduce printing noise and also add an extra layer of protection from moisture or dust when used in harsher environments.

The TSP700II is ideal for high-volume retail establishments like lottery, grocery stores, healthcare, banking, and restaurants. To prove Star's full confidence in this ultra reliable printer, Star is offering the best warranty in the industry: a complimentary three year Extend-A-Star bumper to bumper warranty.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
9.84 in/s
Maximum Print Resolution (dpi):
406 x 203
Maximum Print Width:
2.83"
Barcode Symbology Supported:
  • PDF-417
  • QR Code
Features:
  • Vertical Printing
  • Horizontal Printing
  • Spill Resistant
  • Dust Resistant
Memory
Flash Memory:
16 MB
Interfaces/Ports
USB:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Label
  • Black Mark
  • Receipt
  • Coupon
Media Sensor:
  • Out Of Paper Sensor
  • Paper Low Sensor
  • Transmissive Media Sensor
  • Cover Open Sensor
Media Thickness:
5.91 mil
Maximum Roll Diameter:
3.94"
Maximum Label Width:
3.25"
Fonts & Emulation
Language Emulation:
ESC/POS
Power Description
Power Source:
Power Adapter
Physical Characteristics
Form Factor:
Wall Mount
Product Color:
White
Height:
5.8"
Width:
5.8"
Depth:
8.4"
Weight (Approximate):
3.86 lb
Miscellaneous
Additional Information:

No Power Supply Unit Included

Platform Supported:
  • PC
  • Mac
  • Handheld
Item Numbers
GTIN: 0088047228021, 4951319228028
UPC: 088047228021
EAN: 0088047228021, 4951319228028
UNSPSC: 45101512

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (1)
  • Carrying and Protective Accessories (1)
  • Direct Thermal Barcode Label (3)
  • Mounting Hardware and Stands (3)
  • Printer Accessories (15)
  • Receipt Printer Accessories (17)

Recommended Accessories for Model: Star 39442501 Receipt Printer

Top Cables, Connectors, and Adapters Purchased With Star 39442501

Top Carrying and Protective Accessories Purchased With Star 39442501

Top Direct Thermal Barcode Label Purchased With Star 39442501

Top Mounting Hardware and Stands Purchased With Star 39442501

Top Printer Accessories Purchased With Star 39442501

See All Printer Accessories for Star 39442501 Receipt Printer >

Top Receipt Printer Accessories Purchased With Star 39442501

  • Star PS60A-24A Accessory
    Star PS60A-24A Accessory
    Power Supply, AC Adapter, Compatible with Star Printers (Except DP8340 and TSP100 Series), Formerly known as PS60L-24A, Replaces PS60L-24B.
    Please Call for Pricing or to Purchase
  • Star IFBD-HC03 Accessory
    Star IFBD-HC03 Accessory
    Parallel interface board for TSP 700 / 800 series printers
    Please Call for Pricing or to Purchase
  • Star IFBD-HD03 Accessory
    Star IFBD-HD03 Accessory
    RS-232C (25pin) interface board for TSP 700 / 800 series printers
    Please Call for Pricing or to Purchase
See All Receipt Printer Accessories for Star 39442501 Receipt Printer >
Questions? Get help from
a POS Expert!

What is your POS application?

The Star 39442501 Receipt Printer is also known as STA-39442501 or 39442501.
