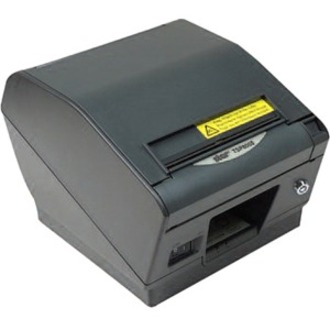

Star 39441130 Receipt Printer

Part Number: 39441130
Model: TSP800IIRx

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
Ethernet

Product Description:

  TSP847IIE3-24 GRY RX US, Thermal, PRINTER, 2 COLOR, Cutter/Tear Bar, LAN, GRAY, PAPER LOCK, INCLUDES PS PS60A-24B EXTERNAL Power Supply AND NEW LAN IFBD-HE07 INCLUDED, REPLACES 39444530. Also known as TSP847IIE3-24 GRY RX-US.

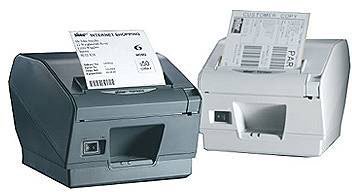

Star TSP800IIRx Receipt Printer Model Overview

The Star Micronics TSP80011 is a revolutionary wide-format POS printer designed to elevate your printing experience with unprecedented speed and efficiency. Ideal for various applications including retail, healthcare, and labeling, this compact device accommodates 3" to 4.4" wide paper, allowing you to print receipts, labels, tickets, and graphics at an impressive speed of 180mm/s. Its innovative Zoom Raster Driver enables seamless scaling of A4 documents to fit receipt-sized paper, making it a versatile choice for any business seeking compact yet powerful printing solutions.

Key Features
  • Ultra Fast Printing: 37 RPM (180mm/s)
  • Wide Paper Format: Supports up to 4.4 inches
  • Swappable Interfaces: Easy upgrades with Serial, Parallel, USB, and Ethernet options
  • Compact Design: Space-saving footprint ideal for limited counter space
  • Drop-In Paper Loading: Hassle-free paper changes for seamless operation

Specifications
  • Print Method: Direct Thermal
  • Print Speed: 37 RPM (180mm/s)
  • Paper Width: 112mm / 82.5mm / 80mm
  • Paper Thickness: 0.06 - 0.15mm
  • Dimensions: W=180mm, H=148mm, D=213mm
  • Resolution: 203 dpi
  • MCBF: 37 Million Lines
  • Cutter Life: 2 Million Cuts
  • Power Supply: 24VDC
  • Weight: Compact and lightweight for easy handling
Star 39441130 Receipt Printer Overview

Star Micronics has the solution to print thermal prescriptions using the secured locking TSP800IIRx Printer. Answering the requests from Hospitals and Physicians to efficiently automate the prescription process and make it simple is the cure from Star. The Secured TSP800IIRx printer enables doctors to print thermal prescriptions vs. handwritten prescriptions from a pad avoiding legibility errors. Utilizing specialized and secured thermal prescription paper, the prescriptions are printed using the latest electronic medical record (EMR) software in the industry, resulting in a secured legible script in seconds. No more messy ribbon replacements! The Secured TSP800IIRx features simple and easy "Drop-In" secured thermal prescription paper, the sole consumable.

The Secured TSP800IIRx prints faster than a laser printer, produces output that is clearer than an inkjet printer and is smaller than a shoe box so it is a true space saver. In addition, the Secured TSP800IIRx will only print what you need, saving you time and money with
your printer consumables.

The TSP800IIRx BTi includes the ability to print receipts or data from a web browser-based application running on a mobile device wirelessly by configuring Star's WebPRNT Browser. Once configured, the user simply pairs their mobile device to the TSP800IIRx BTi, open the application on WebPRNT Browser and prints from the application.

Equipped with Apple MFi certified Bluetooth, Star's TSP800IIRx BTi offers even more flexibility to medical practitioners and facilities. The TSP800IIRx BTi is compatible with iDevices such as iPad®, iPhone® and iPod Touch® as well as all Android and Windows devices. Wireless secure prescription printing adds value and utility to practices and hospitals utilizing mobile/ portable medical workstations.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.09 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
PDF-417
Application/Usage:
Desktop
Features:
  • Tear Bar
  • Auto-cutter
Mobile Device Printing:
Yes
Memory
Standard Memory:
2 MB
Flash Memory:
16 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
Receipt
Media Sensor:
  • Out Of Paper Sensor
  • Reflective Media Sensor
  • Paper Low Sensor
  • Cover Open Sensor
Media Thickness:
5.91 mil
Maximum Roll Diameter:
3.94"
Maximum Label Width:
4.41"
Fonts & Emulation
Language Emulation:
  • Star
  • ESC/POS
Software
Operating System Supported:
  • Windows® XP 32 Bit,
  • Vista 32/64 Bit
  • Windows 7 32/64 Bit
  • Server 2008 32/64 Bit
  • XP Embedded
  • POSReady 2009
  • OPOS™
  • JavaPOS™
  • Linux™
  • Mac OS X
  • StarIO SDK with support for iOS
  • Android
  • Blackberry
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Product Color:
Gray
Height:
5.8"
Width:
7.1"
Depth:
8.4"
Weight (Approximate):
3.75 lb
Miscellaneous
Package Contents:
  • TSP800IIRx TSP847IIE3-24 GRY RX-US Reciept Printer
  • User Manual
  • Sample VOID Prescription Roll
  • PS60A External Power Supply
  • Keys
  • Ferrite Core
Power Adapter Included:
Yes
Platform Supported:
  • PC
  • Handheld
Certifications & Standards:
  • Apple MFi Certified
  • UL
  • C-UL
  • TüV
  • CB
  • FCC
  • VCCI
  • EN55022
  • CE
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • ENERGY STAR
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0088047237092, 0799198265055
UPC: 088047237092, 799198265055
EAN: 0088047237092, 0799198265055
UNSPSC: 45101512
