Full specifications (PDF)
Compatibility:
Star Micronics MP292 Dot Matrix Printer
Star 39082002 Receipt Printer
Part Number:
39082002
Model:
MP292

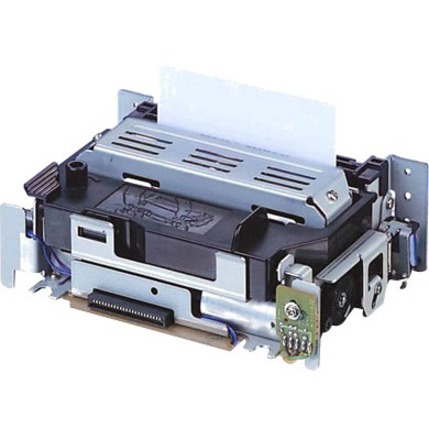

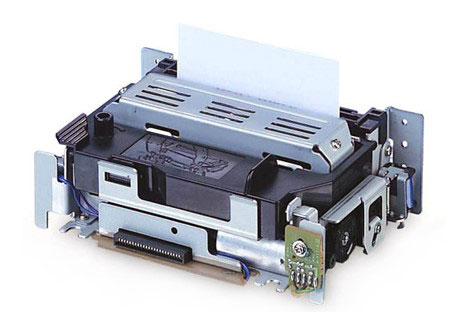

Star MP292 Receipt Printer Model Overview
The Star Micronics MP292 Kiosk Mechanism is a dot matrix printer mechanism designed to use single sheet paper. The MP292 is designed to provide solutions to a wide variety of applications while also prioritizing customization. The MP292 offers a cost-effective and reliable printing system, while also providing flexibility for system integrators to design their own paper feed systems to best suit your business needs.
Star 39082002 Receipt Printer Overview
The MP292 is a dot matrix printer mechanism that was developed to use single sheet paper making it ideal for printing guest checks, security time check-ins, and more. The MP292 is the ultimate in cost-effective versatility without compromising on reliability, all while providing OEMs and system integrators with the flexibility of designing their own printing systems.
Miscellaneous
Item Numbers
GTIN:
0088047501636
UPC:
088047501636
EAN:
0088047501636
UNSPSC:
44101700
Recommended Accessories
Category
- Printer Accessories (10)
Recommended Accessories for Model: Star 39082002 Receipt Printer
Top Printer Accessories Purchased With Star 39082002
-
Star 83101020 AccessorySpare Part, Star, Gear, 16 x 48 x 0.5. Compatible with MP3Item on backorder — chat for lead time$10.69 -
Star 87113200 AccessorySpare Part, Star, Holder Roller Unit. Compatible with MP300 Series, SP317, SP349, UP389Item on backorder — chat for lead time$24.56 -
Star 87119170 AccessorySpare Part, Star, Cassette Ratched Unit. Compatible with MP300 Series, SP300 SeriesItem on backorder — chat for lead time$11.72
Frequently Asked Questions
What is the print speed of the Star MP292 Receipt Printer?
The Star MP292 delivers a print speed of approximately 3.1 lines per second, making it suitable for kiosk and guest check applications. This speed is consistent with dot matrix impact printing technology designed for reliable, cost-effective receipt production.
What paper sizes does the MP292 support?
The MP292 supports paper widths from 80 mm to 182 mm and paper lengths from 80 mm to 257 mm, with a print width of 63 mm and 42 print columns. This flexibility allows integration into various kiosk and single-sheet paper feed systems.
Does the Star MP292 include a paper cutter or automatic paper feed?
No, the MP292 is a printer mechanism without an integrated paper cutter or automatic paper feed system. It is designed as a customizable solution for system integrators to design their own paper feed systems to suit specific business needs.
What is the reliability and expected lifespan of the MP292 print head?
The MP292 features a highly reliable 9-pin print head rated for 70 million characters, with an overall mechanism MCBF (Mean Cycles Between Failures) of 2.5 million lines. This ensures dependable long-term operation for kiosk and receipt printing applications.
What power supply does the MP292 require?
The MP292 operates on 24V +5% and requires a separate power supply, which is sold separately. The compatible power supply part number is PS60-L-24A, available from us to complete your system setup.
Can the MP292 print in multiple colors?
Yes, the MP292 supports two-color printing and can produce multiple copies—up to original plus 2 copies. We offer ribbon cassettes in black (RC200B), black and red (RC200BR), and purple (RC200P) to support your color printing requirements.
